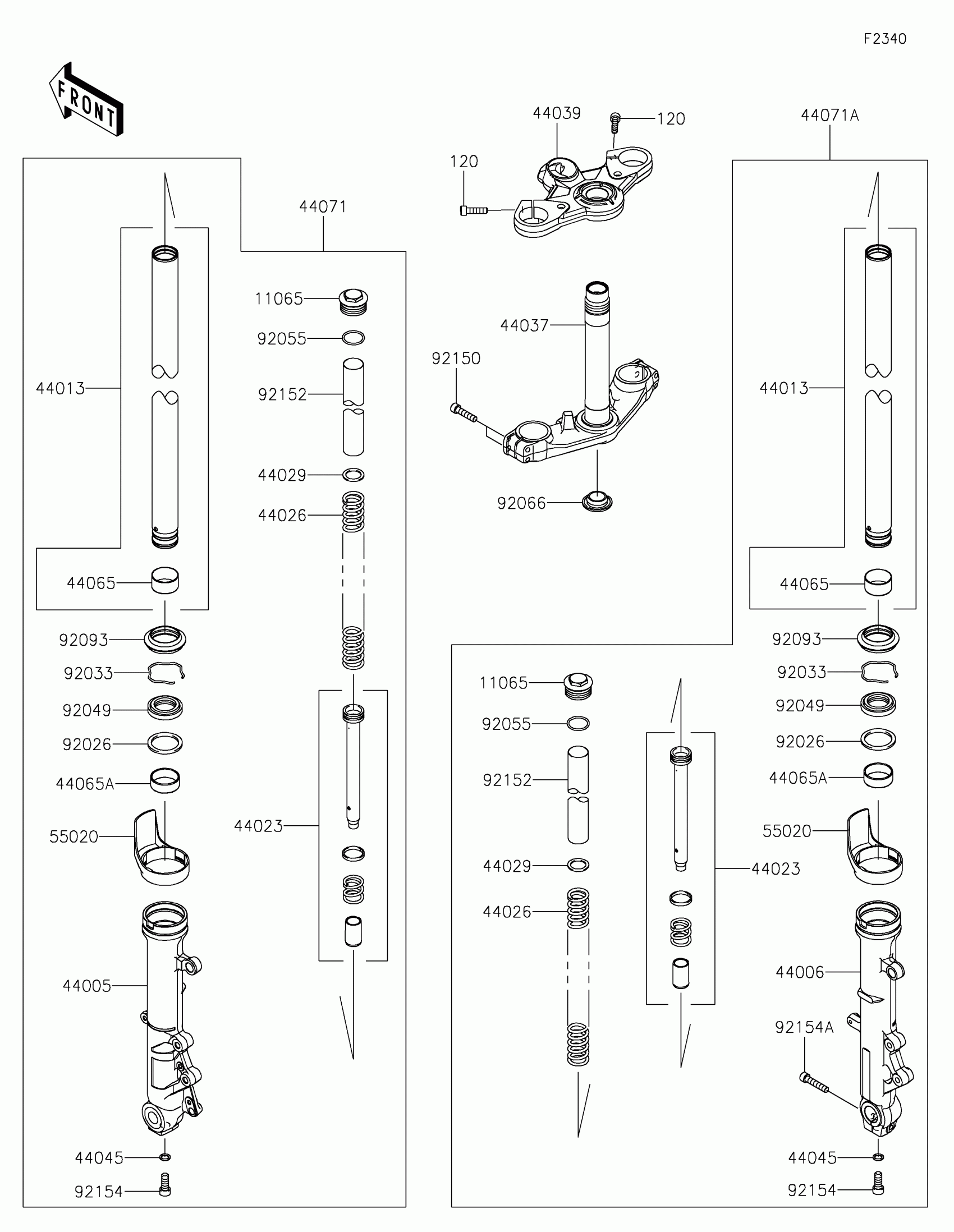

Kawasaki Ninja® 7 Hybrid Front Fork Diagram

#

Description
Price

11065

CAP

11065-1286

$45.48

44005

PIPE-LEFT FORK OUTER,F.S.BLACK

44005-0128-18R

$318.75

44006

PIPE-RIGHT FORK OUTER,F.S.BLK

44006-0131-18R

$318.75

44013

PIPE-FORK INNER

44013-0403

$474.53

44023

CYLINDER-SET-FORK

44023-0201

$114.61

44026

SPRING-FRONT FORK

44026-0305

$61.97

44029

SEAT-FORK SPRING

44029-1131

$10.00

44037

HOLDER-FORK UNDER,F.BLACK

44037-0228-21

$385.21

44039

HOLDER-FORK UPPER

44039-0211

$297.09

44045

GASKET,FORK CYLINDER BOLT

44045-051

$4.64

44065

BUSHING-FRONT FORK

44065-0076

$19.54

44065A

BUSHING-FRONT FORK

44065-0077

$19.31

44071

DAMPER-ASSY,LH,F.S.BLACK

44071-1683-18R

$671.19

44071A

DAMPER-ASSY,RH,F.S.BLACK

44071-1684-18R

$671.19

55020

GUARD,FORK

55020-0872

$8.87

92026

SPACER,FORK OUTER

92026-1276

Unavailable

92033

RING-SNAP

92033-1222

$4.88

92049

SEAL-OIL

92049-0807

$18.32

92055

RING-O,FORK TOP

92055-1420

$4.18

92066

PLUG

92066-0032

$11.19

92093

SEAL,DUST

92093-0717

$19.29

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR,FORK,L=150

92152-3887

$65.31

92154

BOLT

92154-2551

$7.54

92154A

BOLT-SOCKET,8X40

92154-7453

$7.46

120

BOLT-SOCKET,8X30

120CA0830

$1.98
