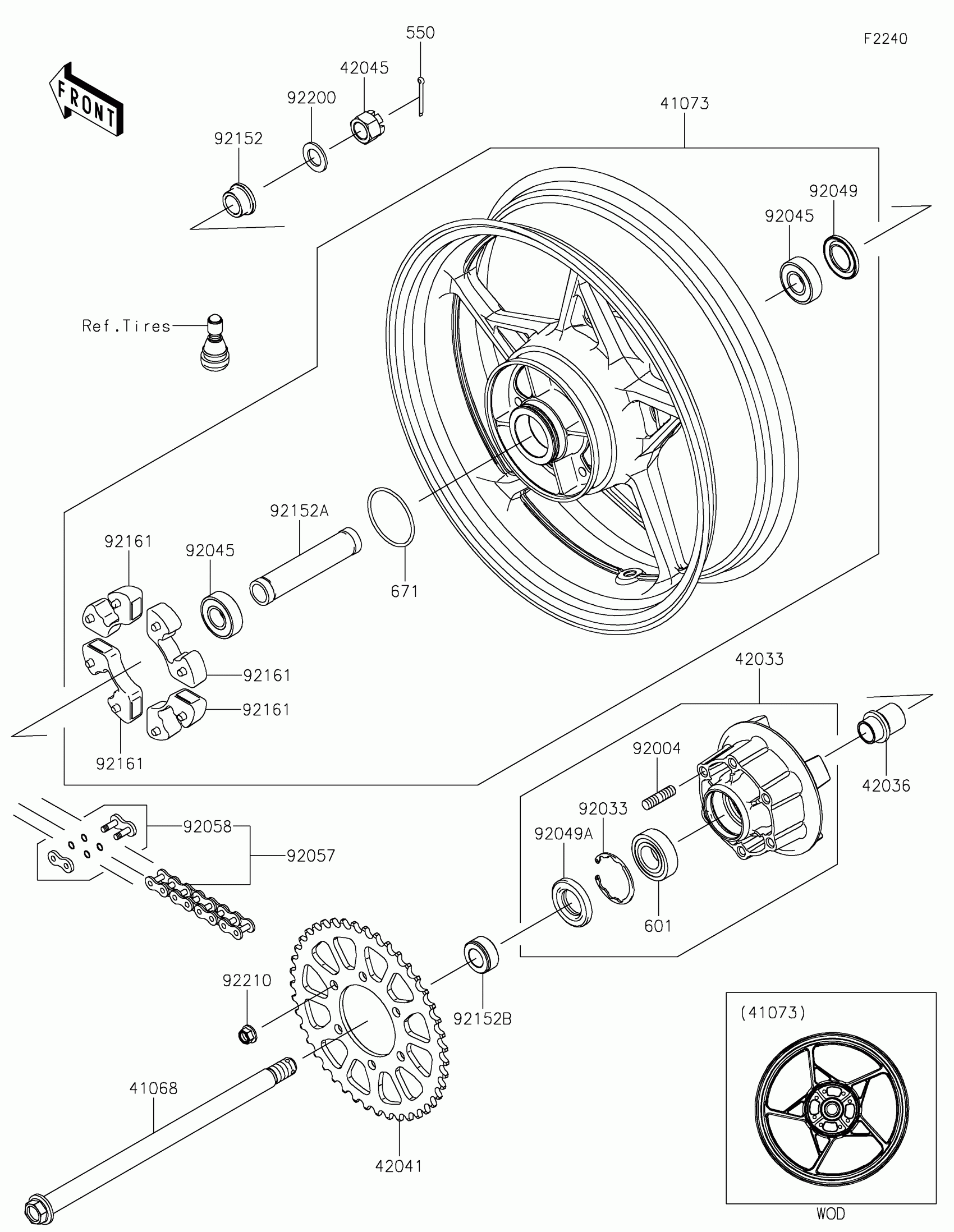

Kawasaki Ninja® 7 Hybrid Rear Wheel/Chain Diagram

Description

Price

41068

AXLE,RR

41068-0579

Unavailable

41073

WHEEL-ASSY,RR,G.BLACK

41073-0893-QT

$975.58

42033

COUPLING-ASSY,RR HUB

42033-0597

$275.44

42036

SLEEVE,RR HUB

42036-0884

$45.04

42041

SPROCKET-HUB,43T

42041-0192

$112.27

42045

NUT,CASTLE,18MM

42045-018

$9.23

92004

STUD,10X19

92004-0048

$8.51

92033

RING-SNAP,52MM

92033-1043

$8.05

92045

BEARING-BALL,20X47X14

92045-0821

$19.73

92049

SEAL-OIL,28 47 5

92049-0140

$8.44

92049A

SEAL-OIL

92049-1287

$13.08

92057

CHAIN,DRIVE,DID520VM4X122L

92057-0867

$153.02

92058

JOINT-CHAIN,DRIVE

92058-0081

$13.65

92152

COLLAR,RR AXLE,RH,L=17

92152-0302

$16.97

92152A

COLLAR,20.2X27.2X133

92152-2228

$24.07

92152B

COLLAR,RR AXLE,LH,L=16

92152-2912

$25.63

92161

DAMPER,SHOCK,RR HUB

92161-0303

$15.87

92200

WASHER,19X32X2.6

92200-1489

$1.83

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

550

PIN-COTTER,4.0X35

550AA4035

$2.17

601

BEARING-BALL

601B6205UU

$29.62

671

O RING,60MM

671B2560

$6.91
