Description

Price

11058

BRACKET,TANK

11058-1510

$8.00

13159

CONNECTOR

13159-1065

$7.26

43010

ROD-ASSY-BRAKE

43010-0022

$71.10

43015

CYLINDER-ASSY-MASTER,RR

43015-0801

$262.40

43020

PISTON-COMP-BRAKE

43020-0023

$65.22

43026

CAP-BRAKE

43026-0009

$37.51

43027

PLATE-DIAPHRAGM

43027-1053

$5.67

43028

DIAPHRAGM

43028-1065

$19.09

43078

RESERVOIR

43078-0060

$32.45

43095

HOSE-BRAKE,RR M/CYLINDER-HU

43095-1871

$300.34

43095A

HOSE-BRAKE,HU-RR CALIPER

43095-1872

$340.06

43095B

HOSE-BRAKE,RR RESERVOIR

43095-1936

$15.90

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0182

$3.29

92055

RING-O,14.8X2.4

92055-0741

$3.71

92081

SPRING,MASTER CYLINDER

92081-1737

$12.23

92154

BOLT,FLANGED,10X23

92154-0732

$5.05

92154A

BOLT,SOCKET,8X30

92154-0843

$4.72

92154B

BOLT

92154-0929

$3.71

92154C

BOLT,BANJO,10X22

92154-1138

$7.40

92154D

BOLT,OIL,L=23

92154-4239

$5.91

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP

92171-0818

$4.41

92173

CLAMP

92173-0951

$1.63

130

BOLT-FLANGED,6X25

130BB0625

$2.80

550

PIN-COTTER,2.0X15

550AA2015

$1.12

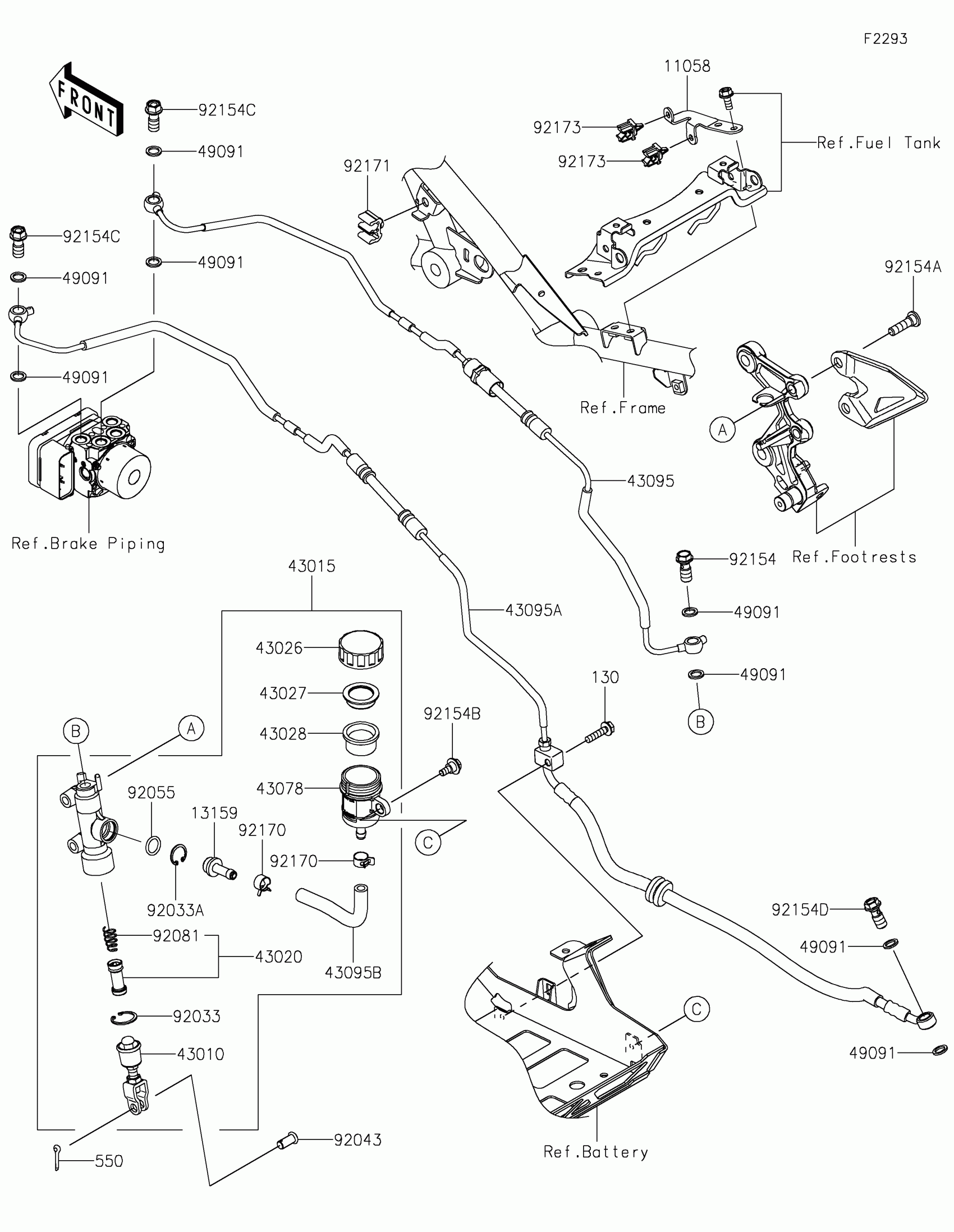

Kawasaki Ninja® 7 Hybrid Rear Master Cylinder Diagram

BRACKET,TANK

CONNECTOR

ROD-ASSY-BRAKE

CYLINDER-ASSY-MASTER,RR

PISTON-COMP-BRAKE

CAP-BRAKE

PLATE-DIAPHRAGM

DIAPHRAGM

RESERVOIR

HOSE-BRAKE,RR M/CYLINDER-HU

HOSE-BRAKE,HU-RR CALIPER

HOSE-BRAKE,RR RESERVOIR

WASHER-SEAL,10.1X14.5X1.5

RING-SNAP,20.9X24.6X1.2

RING-SNAP,20.5MM

PIN

RING-O,14.8X2.4

SPRING,MASTER CYLINDER

BOLT,FLANGED,10X23

BOLT,SOCKET,8X30

BOLT

BOLT,BANJO,10X22

BOLT,OIL,L=23

CLAMP,HOSE

CLAMP

CLAMP

BOLT-FLANGED,6X25

PIN-COTTER,2.0X15
