Description

Price

11061

GASKET,DRAIN

11061-0875

$5.60

11061A

GASKET,CASE-GEAR

11061-1552

$5.74

13107

SHAFT

13107-0960

$82.48

13161

LEVER-COMP-CHANGE SHAFT

13161-0614

$44.89

13236

LEVER-COMP

13236-0847

$22.13

14055

CASE-GEAR

14055-0664

$69.43

14093

COVER

14093-1286

$58.63

21174

MOTOR-ELECTRIC,SHIFT CHANGE

21174-0020

$348.58

59051

GEAR-SPUR,DRIVEN

59051-0868

$14.38

59051A

GEAR-SPUR,DRIVEN

59051-0870

$25.63

59051B

GEAR-SPUR,DRIVE

59051-0884

$112.07

92022

WASHER,CHANGE SHAFT

92022-1628

$6.57

92026

SPACER

92026-1217

$5.52

92045

BEARING-BALL,8X16X5

92045-0958

$32.97

92045A

BEARING-BALL,6801DD NS7S

92045-0959

$33.09

92049

SEAL-OIL,VB13193

92049-1398

$6.22

92145

SPRING,RETURN

92145-1783

$2.68

92145A

SPRING,PAWL RETURN

92145-1813

$0.90

92145B

SPRING,DRUM POSITION

92145-1814

$0.90

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR,14.2X19.9X14.3

92152-2370

$4.60

92154

BOLT,FLANGED,6X25

92154-0520

$3.35

92154A

BOLT,FLANGED,6X18

92154-1775

$0.63

92154B

BOLT,FLANGED,6X35

92154-1779

$1.71

92154C

BOLT,RETURN SPRING

92154-1838

$9.07

92154D

BOLT,SOCKET,6X14

92154-2731

$2.17

92200

WASHER,14.2X25X1

92200-1933

$0.64

480

CIRCLIP-TYPE-C,12MM

480J1200

$0.62

482

CIRCLIP-TYPE-E,12MM

482J0200

$3.92

610

ROLLER,4X6

610A0406

$4.31

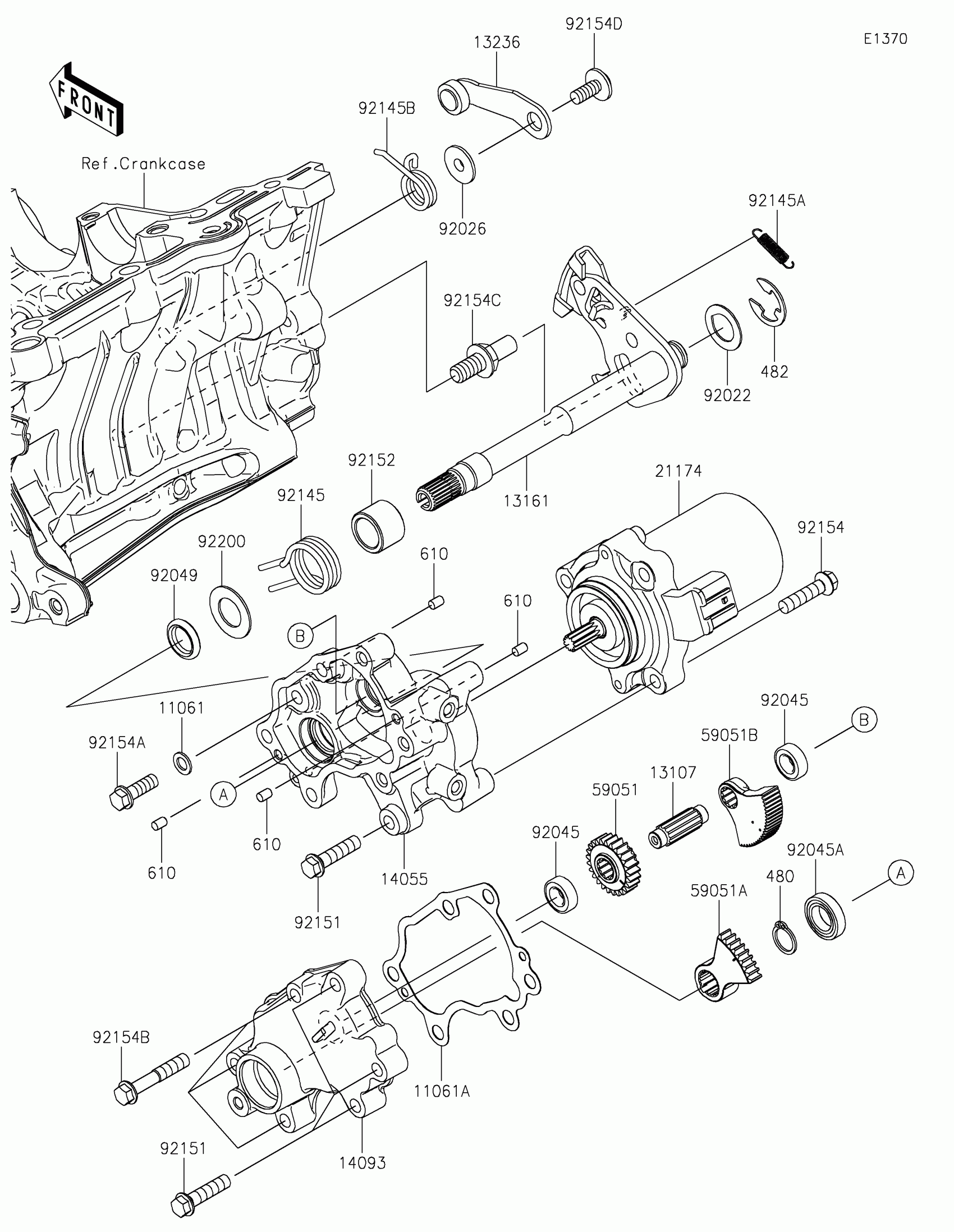

Kawasaki Ninja® 7 Hybrid Gear Change Mechanism Diagram

GASKET,DRAIN

GASKET,CASE-GEAR

SHAFT

LEVER-COMP-CHANGE SHAFT

LEVER-COMP

CASE-GEAR

COVER

MOTOR-ELECTRIC,SHIFT CHANGE

GEAR-SPUR,DRIVEN

GEAR-SPUR,DRIVEN

GEAR-SPUR,DRIVE

WASHER,CHANGE SHAFT

SPACER

BEARING-BALL,8X16X5

BEARING-BALL,6801DD NS7S

SEAL-OIL,VB13193

SPRING,RETURN

SPRING,PAWL RETURN

SPRING,DRUM POSITION

BOLT,FLANGED-SMALL,6X25

COLLAR,14.2X19.9X14.3

BOLT,FLANGED,6X25

BOLT,FLANGED,6X18

BOLT,FLANGED,6X35

BOLT,RETURN SPRING

BOLT,SOCKET,6X14

WASHER,14.2X25X1

CIRCLIP-TYPE-C,12MM

CIRCLIP-TYPE-E,12MM

ROLLER,4X6
