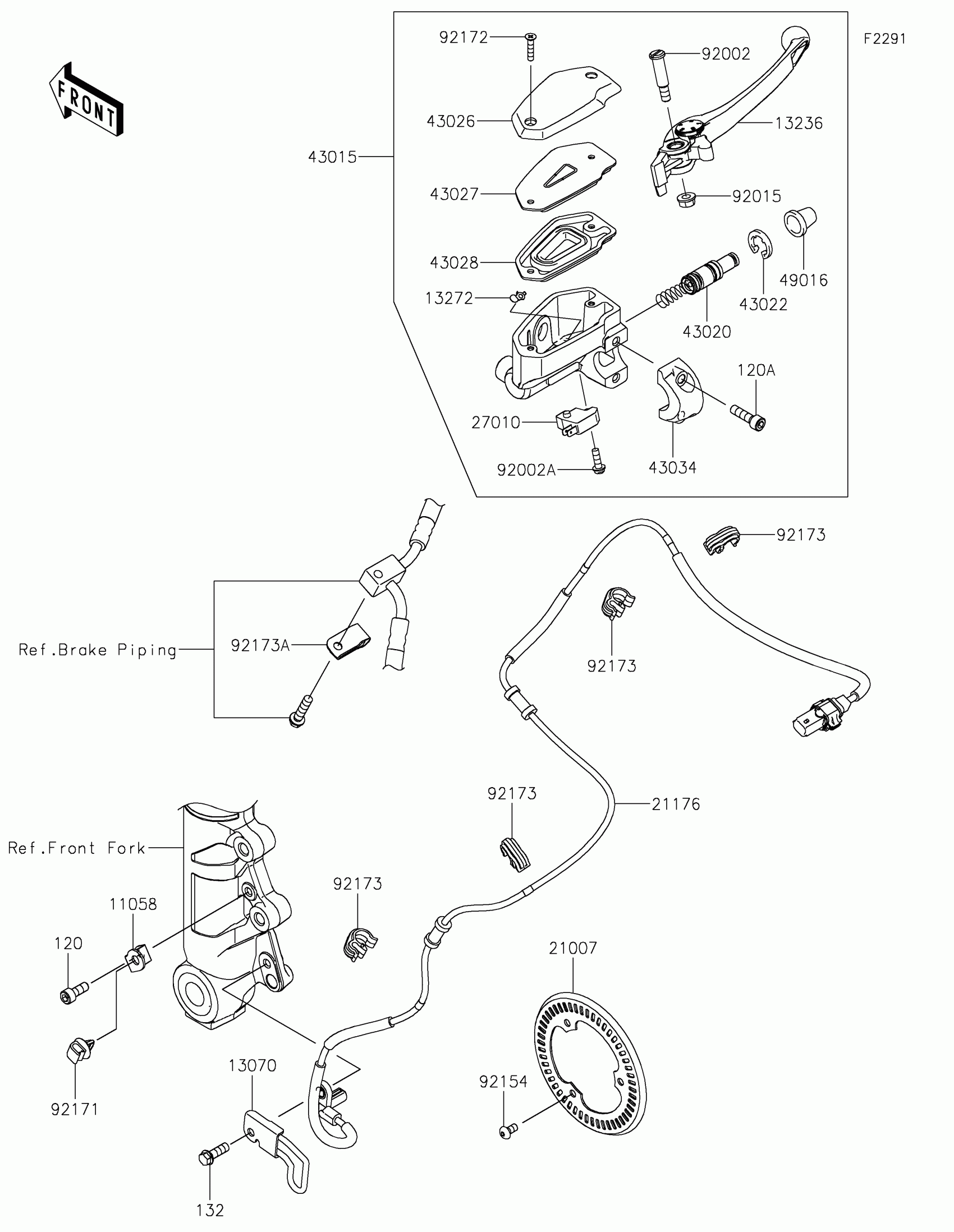

Kawasaki Ninja® 7 Hybrid Front Master Cylinder Diagram

Description

Price

11058

BRACKET,SENSOR

11058-1074

$4.64

13070

GUIDE,SENSOR

13070-1498

$7.92

13236

LEVER-COMP

13236-0864

$68.13

13272

PLATE

13272-0573

$7.60

21007

ROTOR,SENSOR,FR

21007-0671

$89.81

21176

SENSOR,SPEED,FR

21176-1235

$147.62

27010

SWITCH,BRAKE

27010-0762

$35.04

43015

CYLINDER-ASSY-MASTER,FR

43015-0824

$410.93

43020

PISTON-COMP-BRAKE

43020-0008

$65.80

43022

STOPPER-BRAKE,PISTON

43022-1010

$4.65

43026

CAP-BRAKE

43026-0019

$46.21

43027

PLATE-DIAPHRAGM

43027-0008

$8.69

43028

DIAPHRAGM

43028-0015

$36.45

43034

HOLDER-BRAKE,MASTER-CYLINDER

43034-0050

$45.21

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

$8.68

92002

BOLT,LEVER SET,BLACK

92002-1322

$11.71

92002A

BOLT,SCREW,4X12

92002-1323

$3.92

92015

NUT,FLANGED,6MM

92015-1528

$5.52

92154

BOLT,SOCKET,5X10

92154-2801

$0.90

92171

CLAMP

92171-0640

$3.90

92172

SCREW,4X20

92172-0320

$3.90

92173

CLAMP,HOSE&SENSOR LINE

92173-1613

$1.42

92173A

CLAMP

92173-2175

$2.92

120

BOLT-SOCKET,6X16

120CA0616

$2.49

120A

BOLT-SOCKET,6X22

120CB0622

$5.31

132

BOLT-FLANGED-SMALL,6X18

132BA0618

$3.67
