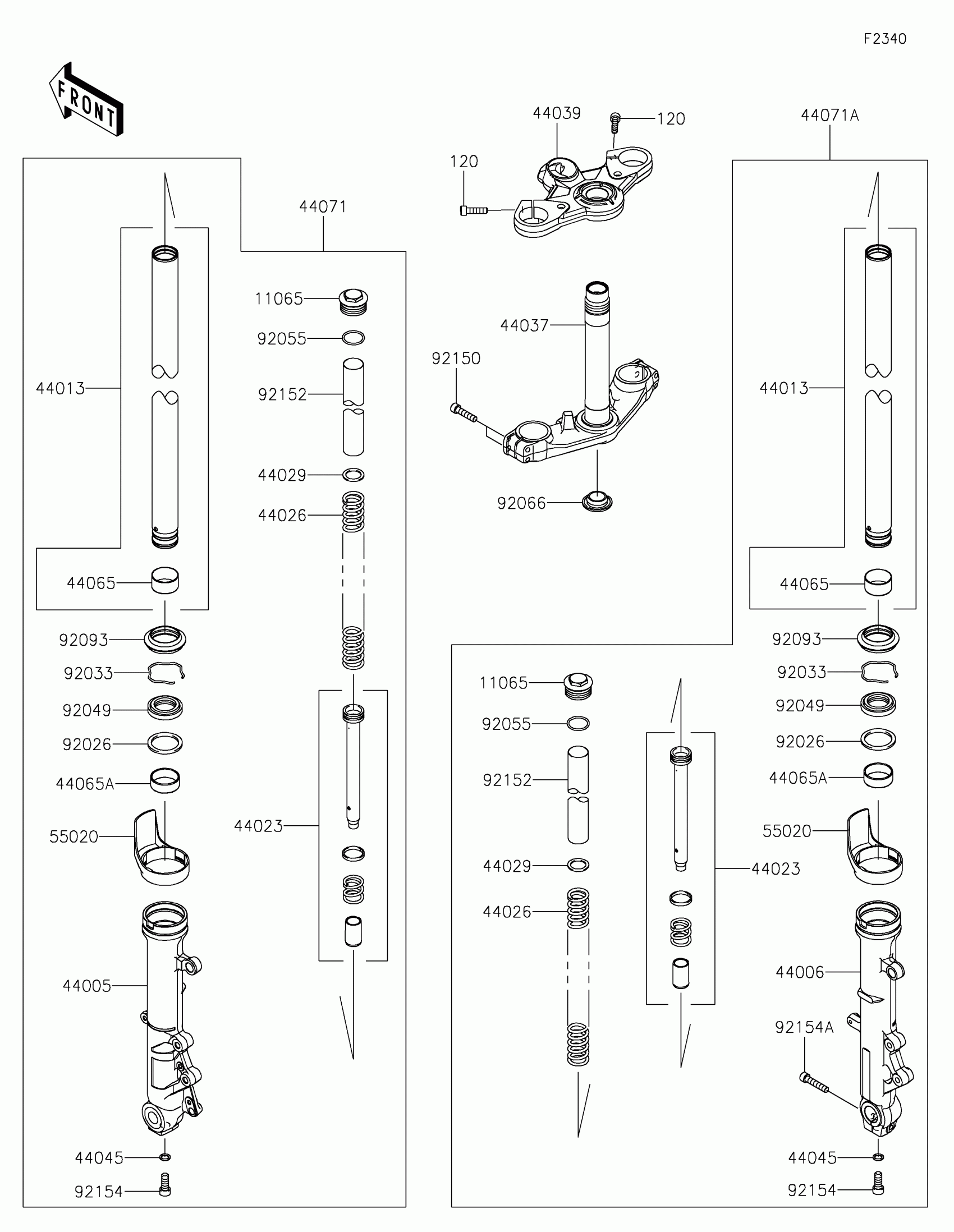

Kawasaki Ninja® 7 Hybrid Front Fork Diagram

#

Description
Price

11065

CAP

11065-1286

$44.62

44005

PIPE-LEFT FORK OUTER,F.S.BLACK

44005-0128-18R

$312.25

44006

PIPE-RIGHT FORK OUTER,F.S.BLK

44006-0131-18R

$312.25

44013

PIPE-FORK INNER

44013-0403

$464.68

44023

CYLINDER-SET-FORK

44023-0201

$112.23

44026

SPRING-FRONT FORK

44026-0305

$60.79

44029

SEAT-FORK SPRING

44029-1131

$10.36

44037

HOLDER-FORK UNDER,F.BLACK

44037-0228-21

$377.28

44039

HOLDER-FORK UPPER

44039-0211

$291.05

44045

GASKET,FORK CYLINDER BOLT

44045-051

$6.16

44065

BUSHING-FRONT FORK

44065-0076

$20.83

44065A

BUSHING-FRONT FORK

44065-0077

$20.55

44071

DAMPER-ASSY,LH,F.S.BLACK

44071-1683-18R

$656.22

44071A

DAMPER-ASSY,RH,F.S.BLACK

44071-1684-18R

$656.22

55020

GUARD,FORK

55020-0872

$11.66

92026

SPACER,FORK OUTER

92026-1276

$9.51

92033

RING-SNAP

92033-1222

$6.51

92049

SEAL-OIL

92049-0807

$22.70

92055

RING-O,FORK TOP

92055-1420

$5.52

92066

PLUG

92066-0032

$11.66

92093

SEAL,DUST

92093-0717

$23.76

92150

BOLT,SOCKET

92150-1511

Unavailable

92152

COLLAR,FORK,L=150

92152-3887

$64.10

92154

BOLT

92154-2551

$9.91

92154A

BOLT-SOCKET,8X40

92154-7453

$7.57

120

BOLT-SOCKET,8X30

120CA0830

$2.80
