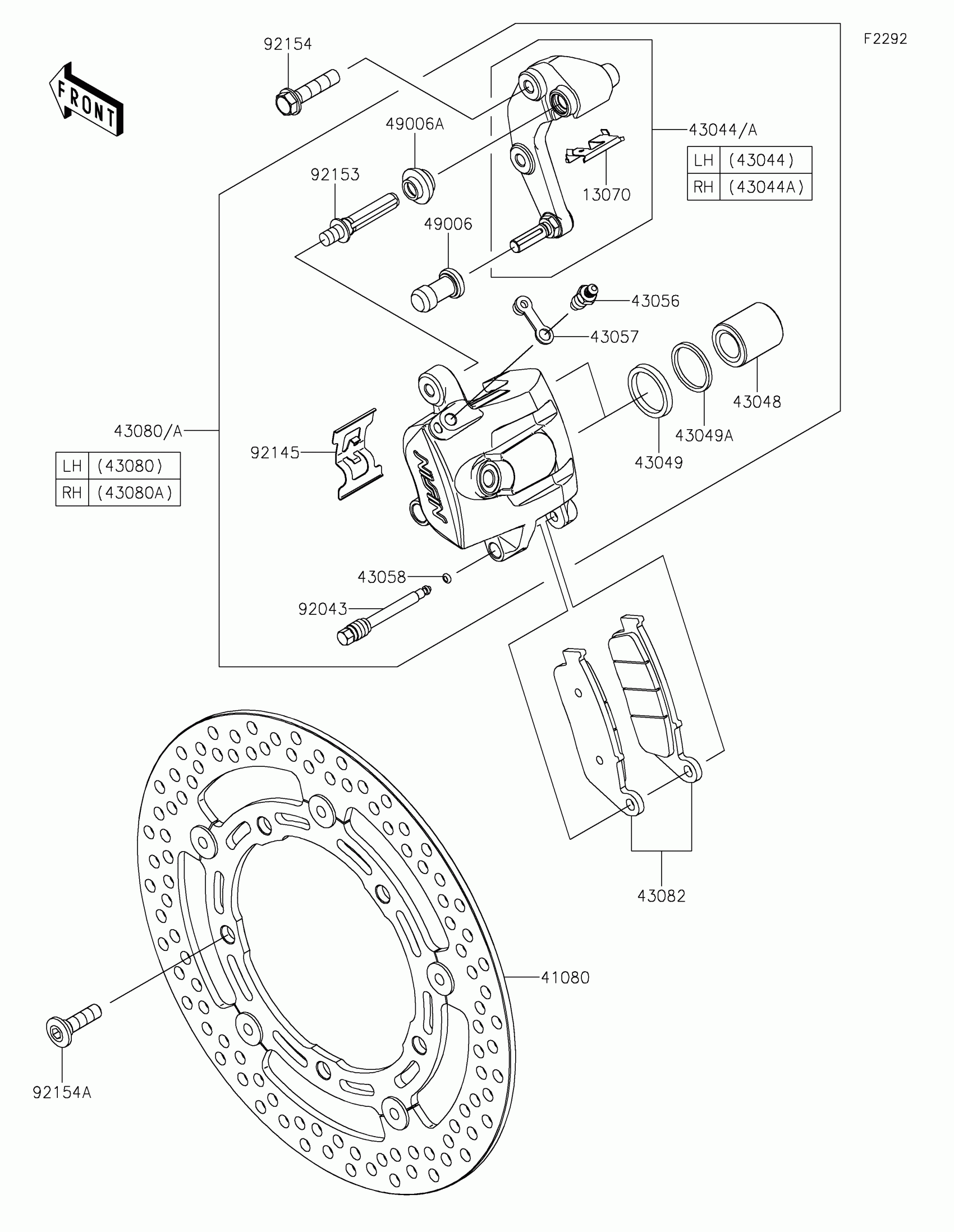

Find the part on the Front Brake diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2024 Kawasaki Ninja® 7 Hybrid Front Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE PAD

13070-0077

1
Out of stock

41080

DISC,FR,BLACK+SIL

41080-0734-11I

1
Out of stock

43044

HOLDER-COMP-CALIPER,FR,LH

43044-0078

1
Out of stock

43044A

HOLDER-COMP-CALIPER,FR,RH

43044-0079

1
Out of stock

43048

PISTON-CALIPER

43048-1068

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1060

1
Out of stock

43049A

PACKING,PISTON SEAL

43049-1061

1
Out of stock

43056

BREATHER

43056-1055

1
Out of stock

43057

CAP-BREATHER

43057-1001

1
Out of stock

43058

RING,STOPPER

43058-1100

1
Out of stock

43080

CALIPER-SUB-ASSY,FR,LH,BLACK

43080-0177-DJ

1
Out of stock

43080A

CALIPER-SUB-ASSY,FR,RH,BLACK

43080-0178-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-0150

1
Out of stock

49006

BOOT,CALIPER

49006-1088

1
Out of stock

49006A

BOOT,CALIPER

49006-1242

1
Out of stock

92043

PIN,HANGER

92043-0820

1
Out of stock

92145

SPRING,PAD

92145-0524

1
Out of stock

92153

BOLT

92153-1872

1
Out of stock

92154

BOLT,FLANGED,8X35

92154-1646

1
Out of stock

92154A

BOLT,SOCKET,8X30

92154-1865

1
Out of stock
