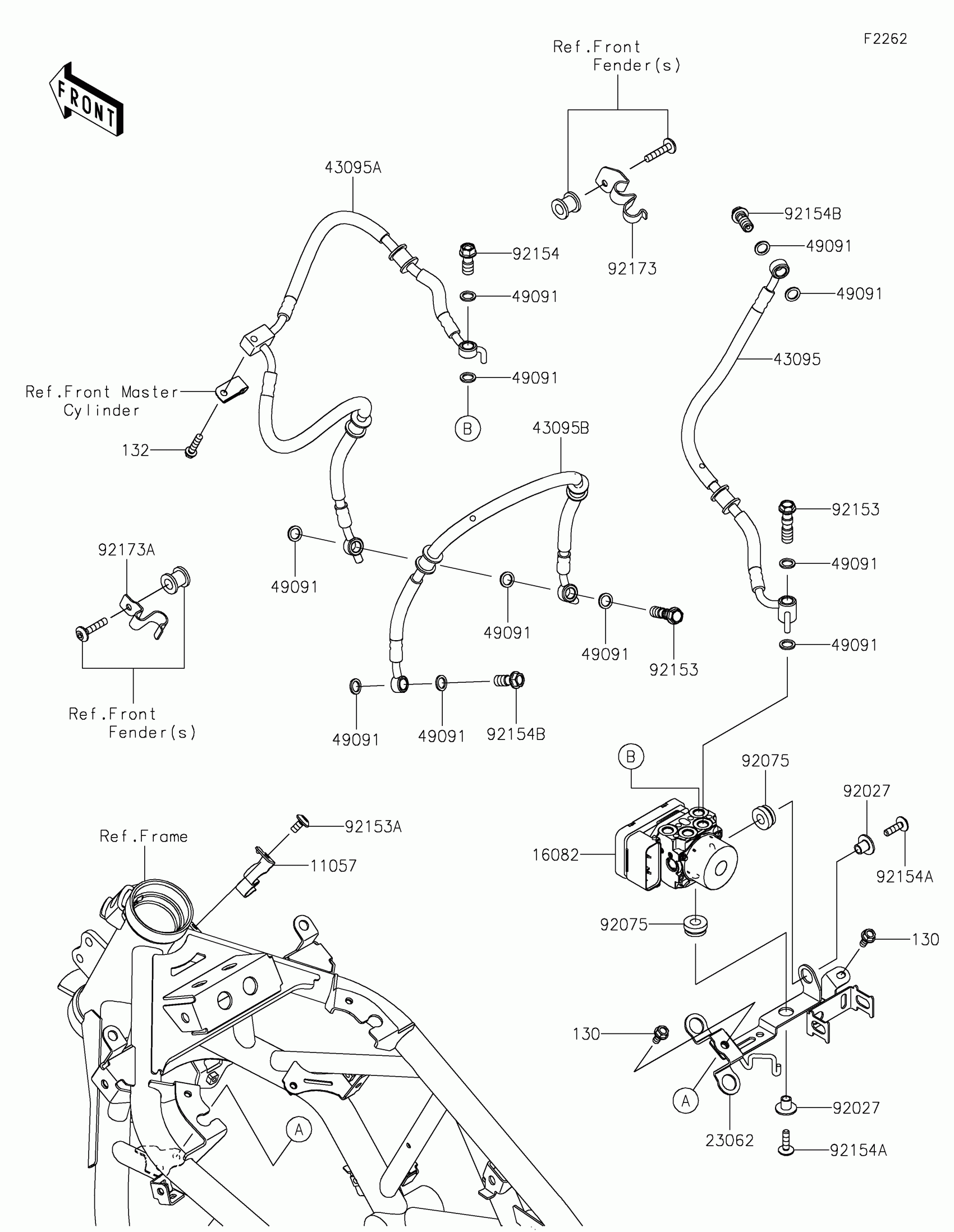

Kawasaki Ninja® 7 Hybrid Brake Piping Diagram

Description

Price

11057

BRACKET

11057-1100

$2.20

16082

PUMP-ASSY-OIL,ABS,WET TYPE

16082-0879

$1,122.45

23062

BRACKET-COMP,ABS UNIT

23062-1475

$24.66

43095

HOSE-BRAKE,FR M/CYLINDER-HU

43095-1869

$95.29

43095A

HOSE-BRAKE,HU-FR CALIPER

43095-1870

$155.66

43095B

HOSE-BRAKE,FR CALIPER

43095-2072

$81.36

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$1.57

92027

COLLAR,FLANGED,L=12.1,BLACK

92027-1651

$3.98

92075

DAMPER

92075-277

$1.90

92153

BOLT,OIL,L=37

92153-0628

$9.00

92153A

BOLT,SOCKET,6X12

92153-1948

$1.53

92154

BOLT,BANJO,10X22

92154-1138

$7.31

92154A

BOLT,SOCKET,6X22

92154-2302

$1.10

92154B

BOLT,OIL,L=23

92154-4239

$4.46

92173

CLAMP,FR FENDER,RH

92173-1612

$3.15

92173A

CLAMP,FR FENDER,LH

92173-2290

$3.92

130

BOLT-FLANGED,6X14

130BA0614

$0.97

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$1.98
