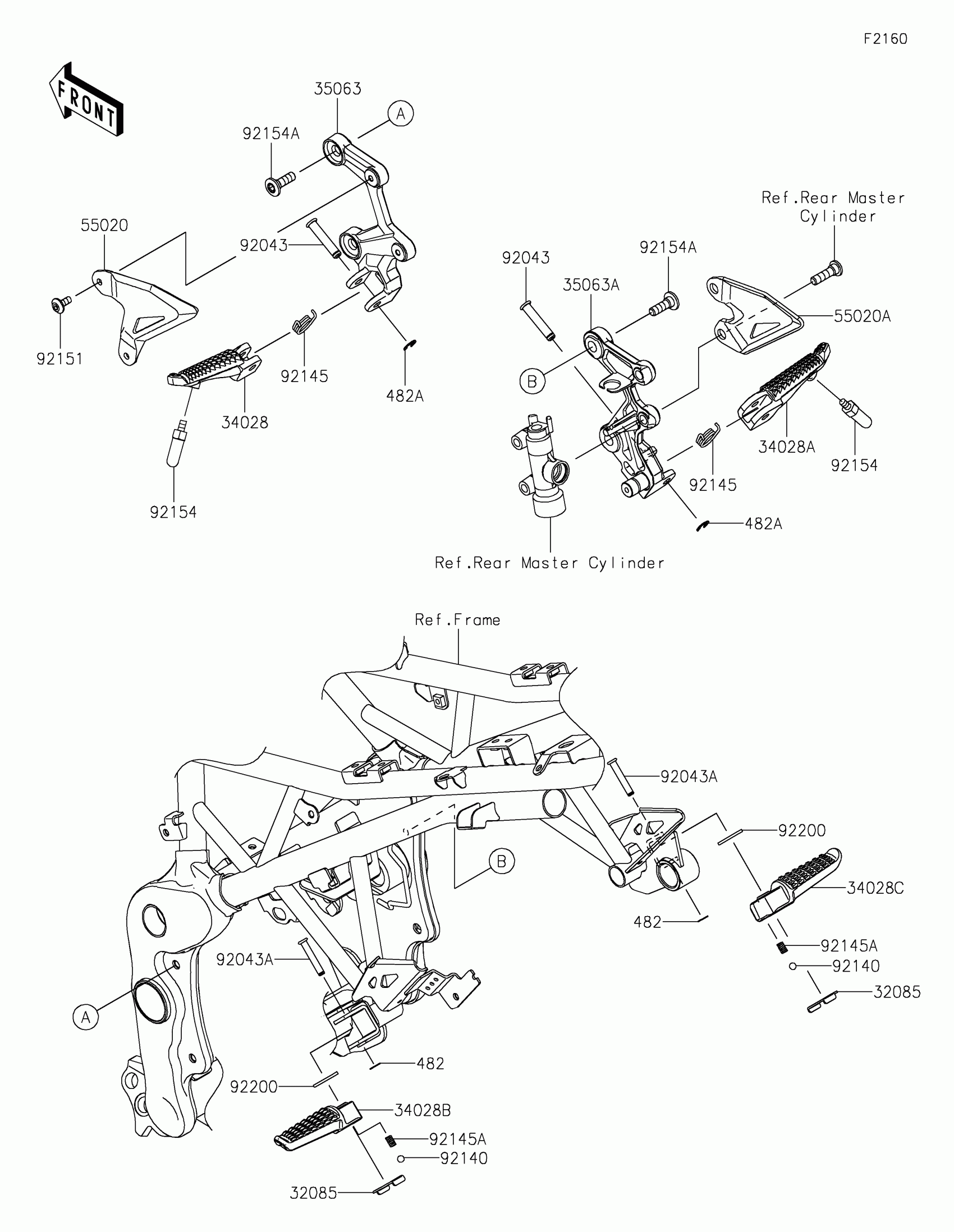

Kawasaki Ninja® 7 Hybrid Footrests Diagram

Description

Price

32085

STOPPER,REAR STEP

32085-0047

$5.57

34028

STEP,FR,LH

34028-0356

$61.29

34028A

STEP,FR,RH

34028-0357

$61.29

34028B

STEP,RR,LH

34028-0366

$70.40

34028C

STEP,RR,RH

34028-0367

$70.40

35063

STAY,FR STEP,LH,F.S.BLACK

35063-1584-18R

$112.80

35063A

STAY,FR STEP,RH,F.S.BLACK

35063-1585-18R

$120.49

55020

GUARD,HEEL,LH

55020-2195

$44.13

55020A

GUARD,HEEL,RH

55020-2196

$44.13

92043

PIN,8X40.5

92043-0877

$4.96

92043A

PIN,6X34

92043-1271

$5.52

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING

92145-0780

$3.70

92145A

SPRING

92145-1319

$1.81

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,BANK SENSOR

92154-2799

$7.93

92154A

BOLT,SOCKET,8X26

92154-3747

$3.21

92200

WASHER,16X26X2.3

92200-0772

$3.74

482

CIRCLIP-TYPE-E

482EA5000

$1.34

482A

CIRCLIP-TYPE-E

482EA7000

$3.92
