Description

Price

11061

GASKET,TENSIONER

11061-0796

$2.64

12046

SPROCKET,DRIVEN

12046-0636

$110.94

12046A

SPROCKET,DRIVE

12046-0637

$101.75

12048

TENSIONER-ASSY

12048-0130

$185.93

12053

GUIDE-CHAIN,FR

12053-0319

$40.54

12053A

GUIDE-CHAIN,RR

12053-0320

$172.23

13107

SHAFT,CHAIN GUIDE

13107-0157

$10.65

21174

MOTOR-ELECTRIC

21174-0030

$3,199.85

92015

NUT,FLANGED,8MM

92015-1014

$0.65

92015A

NUT,10MM

92015-1021

$4.23

92022

WASHER,8.5X14.5X1.6

92022-1470

$4.31

92022A

WASHER,10.2X16X1

92022-1829

$4.31

92043

PIN

92043-1770

$6.83

92043A

PIN

92043-1774

$6.83

92055

RING-O,59.6X3.5

92055-0974

$18.39

92057

CHAIN,T112

92057-0865

$67.97

92152

COLLAR

92152-0413

$8.68

92153

BOLT,FLANGED-SMALL,6X22

92153-1560

$2.15

92154

BOLT,FLANGED,8X23

92154-0187

$7.60

92154A

BOLT,SOCKET,8X100

92154-4478

$10.43

92154B

BOLT,SOCKET,10X10

92154-7167

$10.43

92154C

BOLT

92154-7886

$7.80

92200

WASHER

92200-2880

$3.41

130

BOLT-FLANGED,6X25

130CA0625

$4.45

551

PIN-DOWEL,4X8

551A0408

$0.78

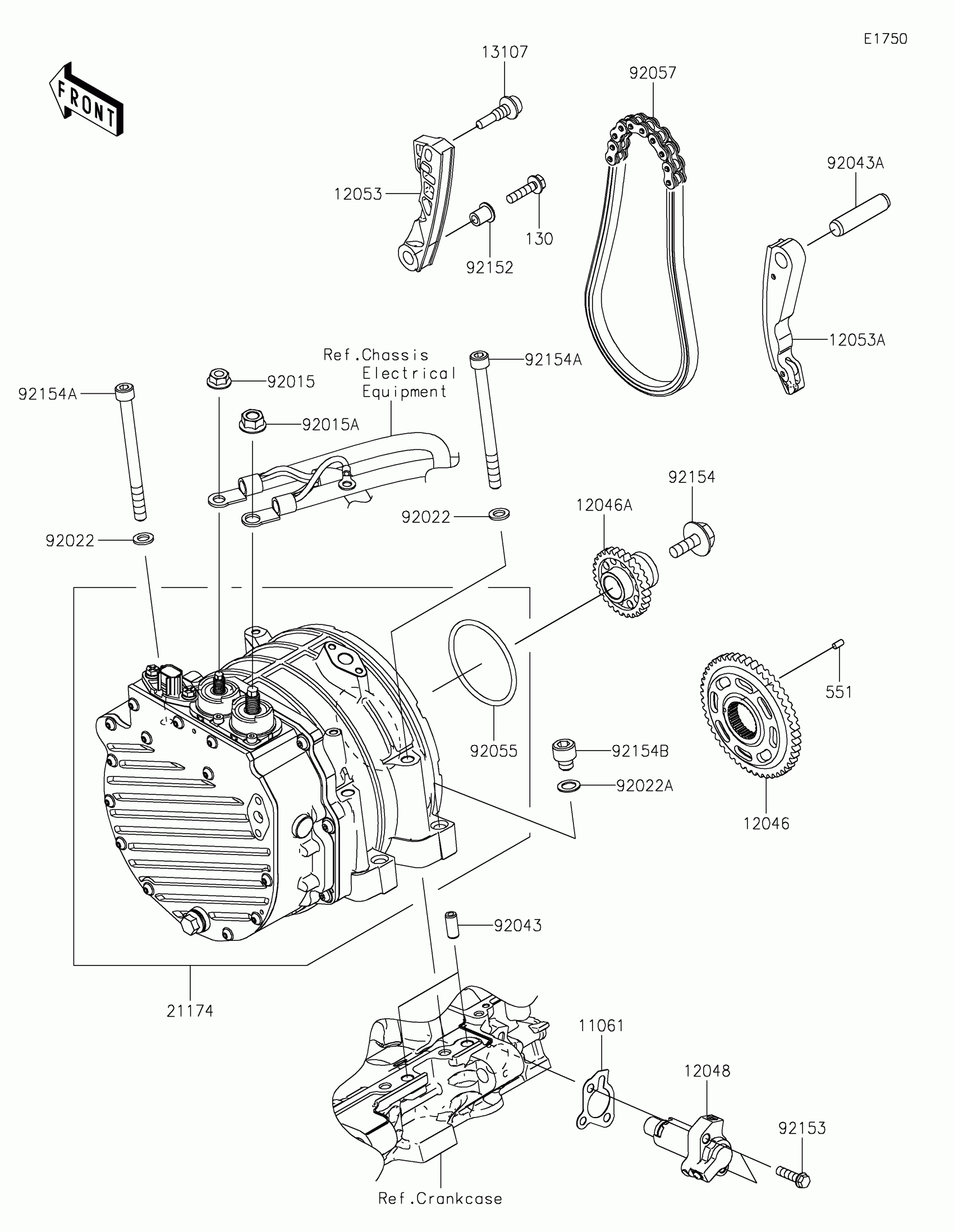

Kawasaki Ninja® 7 Hybrid Electric Motor Diagram
