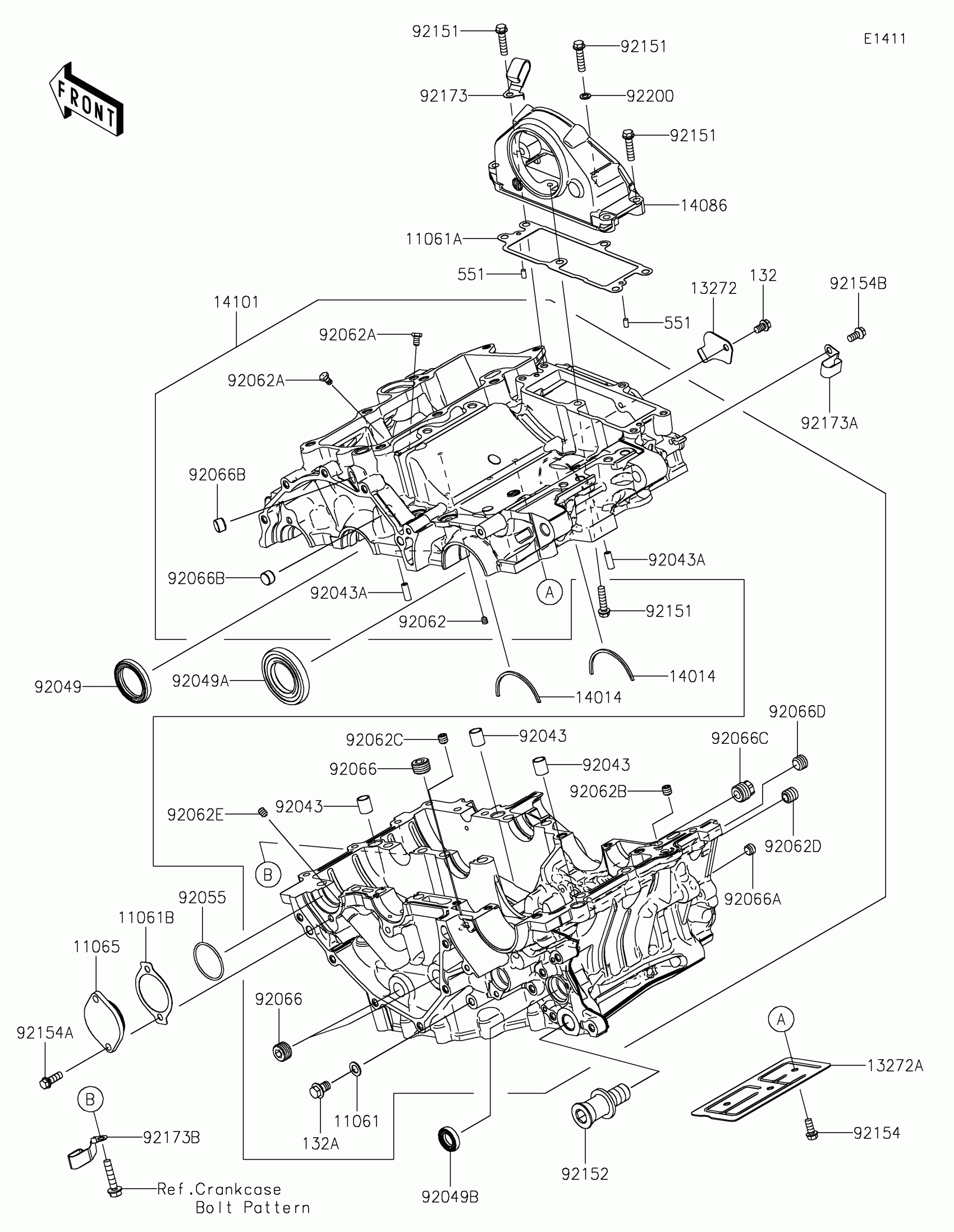

Kawasaki Ninja® 7 Hybrid Crankcase Diagram

#

Description
Price

11061

GASKET,8.2X14X1.0

11061-0418

$5.89

11061A

GASKET

11061-1447

$11.79

11061B

GASKET

11061-1600

$5.51

11065

CAP

11065-1465

$27.40

13272

PLATE

13272-4018

$8.66

13272A

PLATE

13272-4019

$13.28

14014

PLATE-POSITION

14014-0576

$1.42

14086

CASE-MOTOR

14086-0001

$65.33

14101

SET-CRANKCASE

14101-0007

$1,021.34

92043

PIN,12X14

92043-0963

$6.57

92043A

PIN,3.5X6X16

92043-1309

$5.52

92049

SEAL-OIL,32X44X6

92049-0871

$17.57

92049A

SEAL-OIL,TC32578

92049-1474

$18.44

92049B

SEAL-OIL,TC14245

92049-1520

$13.87

92055

RING-O,35.2X1.9

92055-1761

$7.28

92062

NOZZLE

92062-0004

$4.49

92062A

NOZZLE

92062-0047

$15.14

92062B

NOZZLE

92062-0579

$9.53

92062C

NOZZLE

92062-0580

$9.53

92062D

NOZZLE

92062-0582

$29.72

92062E

NOZZLE,6X8,YELLOW

92062-1080

$8.58

92066

PLUG

92066-0831

$5.62

92066A

PLUG,PT1/8X7

92066-0863

$5.89

92066B

PLUG

92066-1110

$6.51

92066C

PLUG,MAIN GALLERY

92066-1530

Unavailable

92066D

PLUG

92066-3778

$11.06

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR,ENGINE-MOUNT

92152-2904

$108.07

92154

BOLT,FLANGED,6X14

92154-1426

$2.00

92154A

BOLT,FLANGED,6X18

92154-1775

$0.63

92154B

BOLT,FLANGED,6X12

92154-1777

$0.95

92173

CLAMP

92173-1592

$3.21

92173A

CLAMP

92173-2588

$2.55

92173B

CLAMP

92173-2667

$5.29

92200

WASHER,6.1X10.0X1.0

92200-0190

$2.61

132

BOLT-FLANGED-SMALL,6X10

132BA0610

$1.71

132A

BOLT-FLANGED-SMALL

132BA0812

$4.31

551

PIN-DOWEL,4X8

551A0408

$0.78
