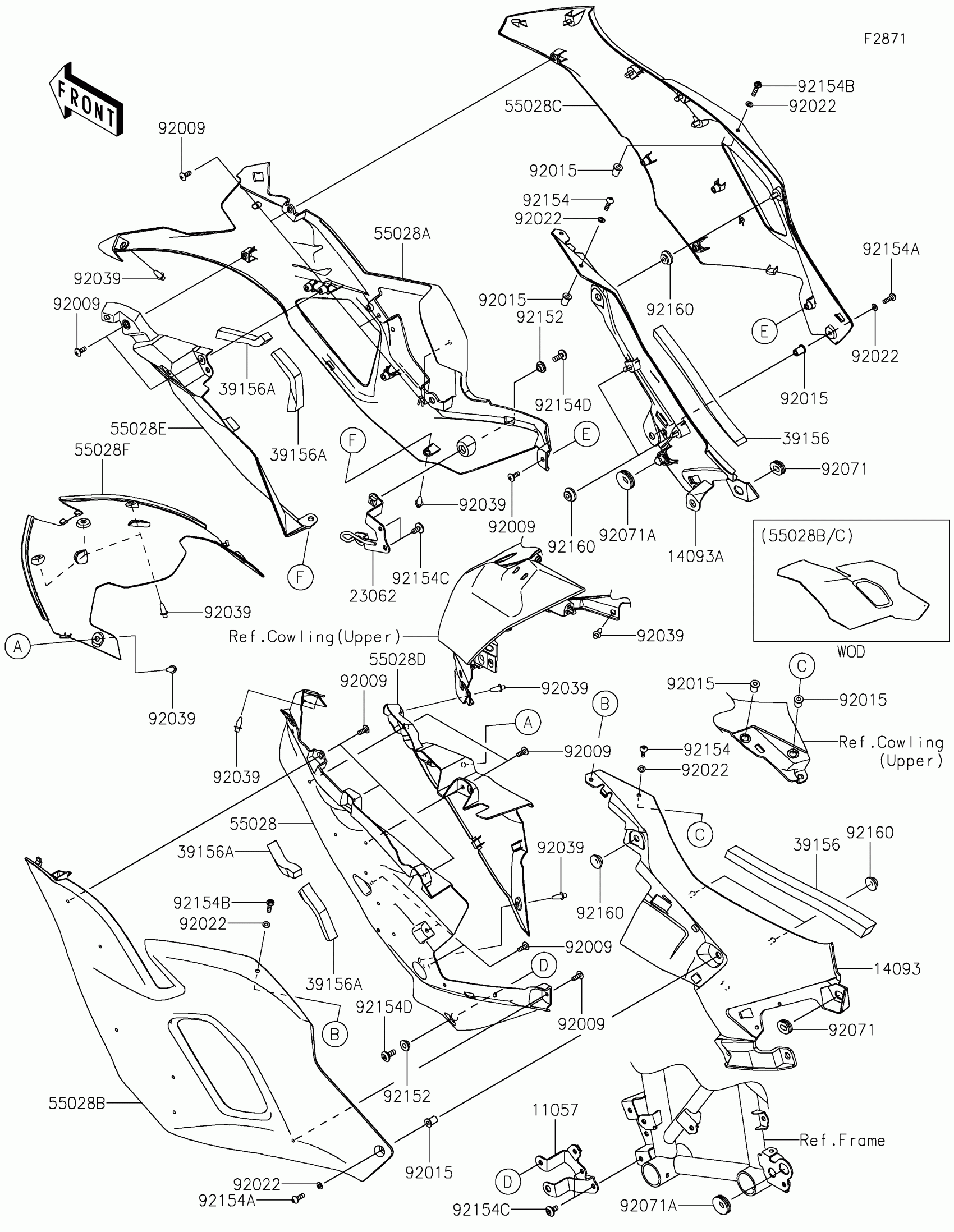

Kawasaki Ninja® 7 Hybrid Cowling(Center) Diagram

#

Description
Price

11057

BRACKET,SIDE COWL.,LH

11057-7955

$11.08

14093

COVER,KNEE GRIP,LH

14093-1289

$89.67

14093A

COVER,KNEE GRIP,RH

14093-1290

$66.95

23062

BRACKET-COMP,SIDE COWL.,RH

23062-1474

$12.83

39156

PAD,13X240X16

39156-2297

$7.78

39156A

PAD,90X10X15

39156-2909

$4.31

55028

COWLING,SIDE,FR,LH

55028-0834

$252.82

55028A

COWLING,SIDE,FR,RH

55028-0835

$213.95

55028B

COWLING,SIDE,RR,LH,M.B.SILVER

55028-0836-63S

$309.62

55028C

COWLING,SIDE,RR,RH,M.B.SILVER

55028-0837-63S

$309.62

55028D

COWLING,SIDE,INNER,LH

55028-0838

$43.09

55028E

COWLING,SIDE,INNER,RH

55028-0839

$40.62

55028F

COWLING,FR

55028-0841

$55.60

92009

SCREW,TAPPING,5X14

92009-1197

$3.92

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92039

RIVET

92039-0709

$2.67

92071

GROMMET,11X23X7

92071-0762

$1.41

92071A

GROMMET

92071-1043

$5.46

92152

COLLAR,6.5X10X5.9

92152-2486

$3.44

92154

BOLT,SOCKET,5X16

92154-1701

$1.19

92154A

BOLT,SOCKET,5X16

92154-4294

$2.75

92154B

BOLT,SOCKET,5X20

92154-4301

$2.12

92154C

BOLT,SOCKET,6X12

92154-4310

$1.53

92154D

BOLT,SOCKET,6X16

92154-7026

$5.53

92160

DAMPER

92160-1613

$3.74
