2024 Kawasaki Ninja® 7 Hybrid Clutch Diagram

← All diagrams

Find the part on the Clutch diagram for your 2024 Kawasaki Ninja® 7 Hybrid, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

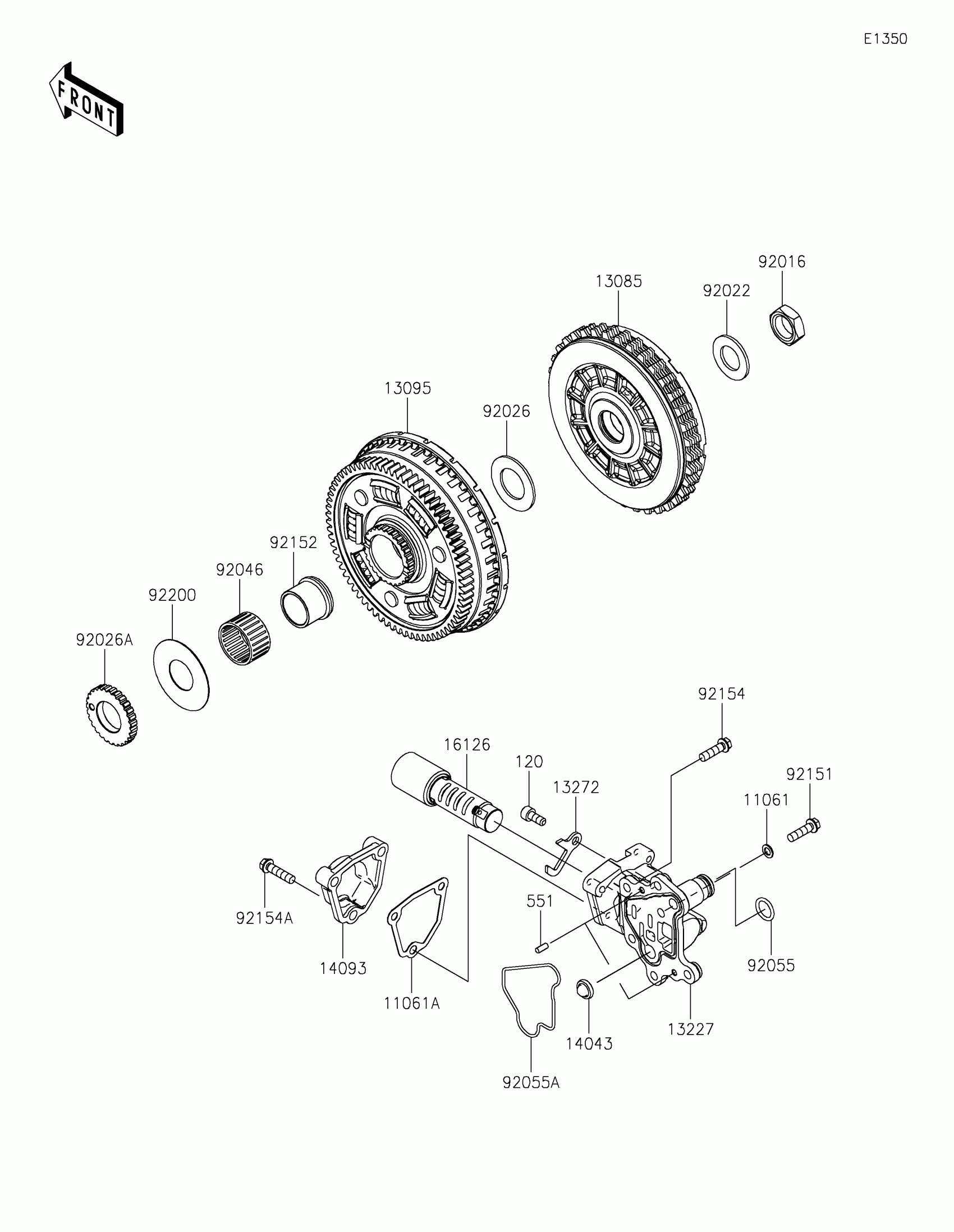

2024 Kawasaki Ninja® 7 Hybrid Clutch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,DRAIN

11061-0875

1
Out of stock

11061A

GASKET,VALVE COVER

11061-1441

1
Out of stock

13085

PLATE-ASSY-CLUTCH

13085-0170

1
Out of stock

13095

HOUSING-COMP-CLUTCH

13095-0616

1
Out of stock

13227

HOUSING

13227-0714

1
Out of stock

13272

PLATE,VALVE

13272-4021

1
Out of stock

14043

FILTER,ELEMENT

14043-0009

1

$10.46

In stock

14093

COVER,VALVE

14093-1285

1
Out of stock

16126

VALVE

16126-0774

1
Out of stock

92016

NUT,20MM

92016-028

1
Out of stock

92022

WASHER,20.3X36X2.3

92022-1116

1
Out of stock

92026

SPACER,25.5X44.5X2

92026-0734

1
Out of stock

92026A

SPACER

92026-0926

1
Out of stock

92046

BEARING-NEEDLE,K30X35X20

92046-1171

1
Out of stock

92055

RING-O,13.8MM

92055-0848

1
Out of stock

92055A

RING-O,HOUSING

92055-1730

1
Out of stock

92151

BOLT,6X22

92151-1936

1
Out of stock

92152

COLLAR

92152-2905

1
Out of stock

92154

BOLT,FLANGED,6X22

92154-0794

1
Out of stock

92154A

BOLT,FLANGED,6X25

92154-0819

1
Out of stock

92200

WASHER,25.1X58X0.8

92200-2539

1
Out of stock

120

BOLT-SOCKET,6X14

120CA0614

1
Out of stock

551

PIN-DOWEL,4X10

551A0410

1
Out of stock
