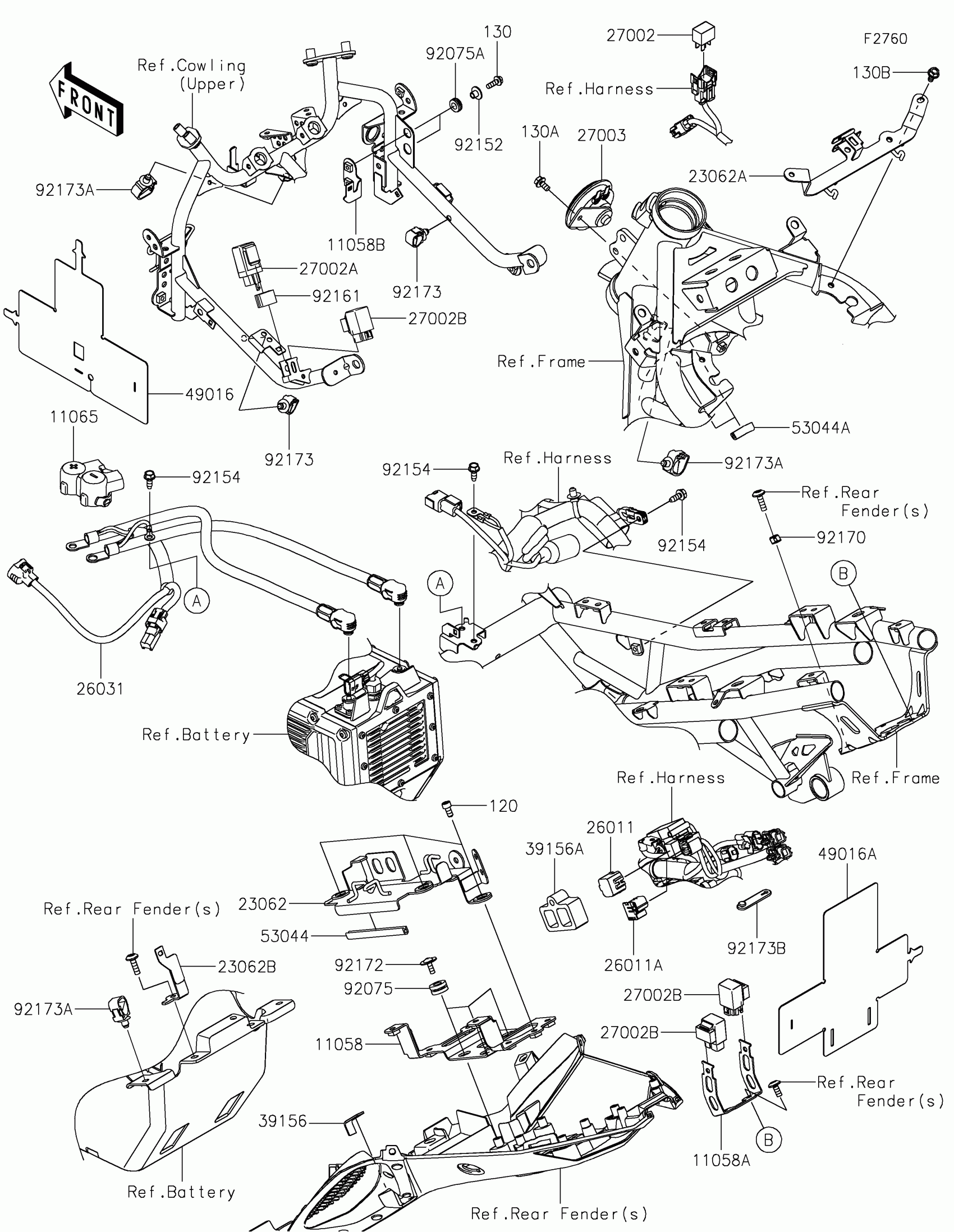

Kawasaki Ninja® 7 Hybrid Chassis Electrical Equipment Diagram

#

Description
Price

11058

BRACKET,ECU,LWR

11058-0640

$49.31

11058A

BRACKET,RELAY,RR

11058-0658

$8.21

11058B

BRACKET,RELAY,FR

11058-1556

$4.19

11065

CAP,MOTOR

11065-1447

$9.45

23062

BRACKET-COMP,ECU,UPP

23062-1376

$60.59

23062A

BRACKET-COMP,CONNECTOR

23062-1377

$39.36

23062B

BRACKET-COMP,FUSE BOX

23062-1504

$6.18

26011

WIRE-LEAD,CONNECTOR COVER

26011-0275

$14.13

26011A

WIRE-LEAD,DIAG CONNECTOR

26011-1901

$37.01

26031

HARNESS,48V BATTERY

26031-4285

$541.11

27002

RELAY-ASSY

27002-0033

$49.39

27002A

RELAY-ASSY,SIGNAL LAMP

27002-0062

$74.99

27002B

RELAY-ASSY

27002-1062

$45.39

27003

HORN

27003-0124

$81.16

39156

PAD

39156-2170

$0.63

39156A

PAD,DIAGNOSTIC CONNECTOR

39156-2685

$7.64

49016

COVER-SEAL,FR RELAY

49016-0718

$8.93

49016A

COVER-SEAL,RR RELAY

49016-0719

$8.36

53044

TRIM

53044-0564

$7.24

53044A

TRIM,9X6.5X30

53044-0632

$4.45

92075

DAMPER

92075-1880

$1.63

92075A

DAMPER

92075-2097

$2.06

92152

COLLAR,5.2X7.5X8.2

92152-1880

$4.92

92154

BOLT,FLANGED,6X16

92154-0551

$1.63

92161

DAMPER,15X25X8.5

92161-1443

$1.94

92170

CLAMP

92170-1514

$4.31

92172

SCREW,5X16

92172-1215

$0.90

92173

CLAMP,12MM DIA.

92173-0736

$5.05

92173A

CLAMP

92173-0861

$3.02

92173B

CLAMP

92173-2198

$1.48

120

BOLT-SOCKET,6X12

120CA0612

$1.71

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,6X12

130BA0612

$1.72

130B

BOLT-FLANGED,6X12

130CA0612

$3.96
