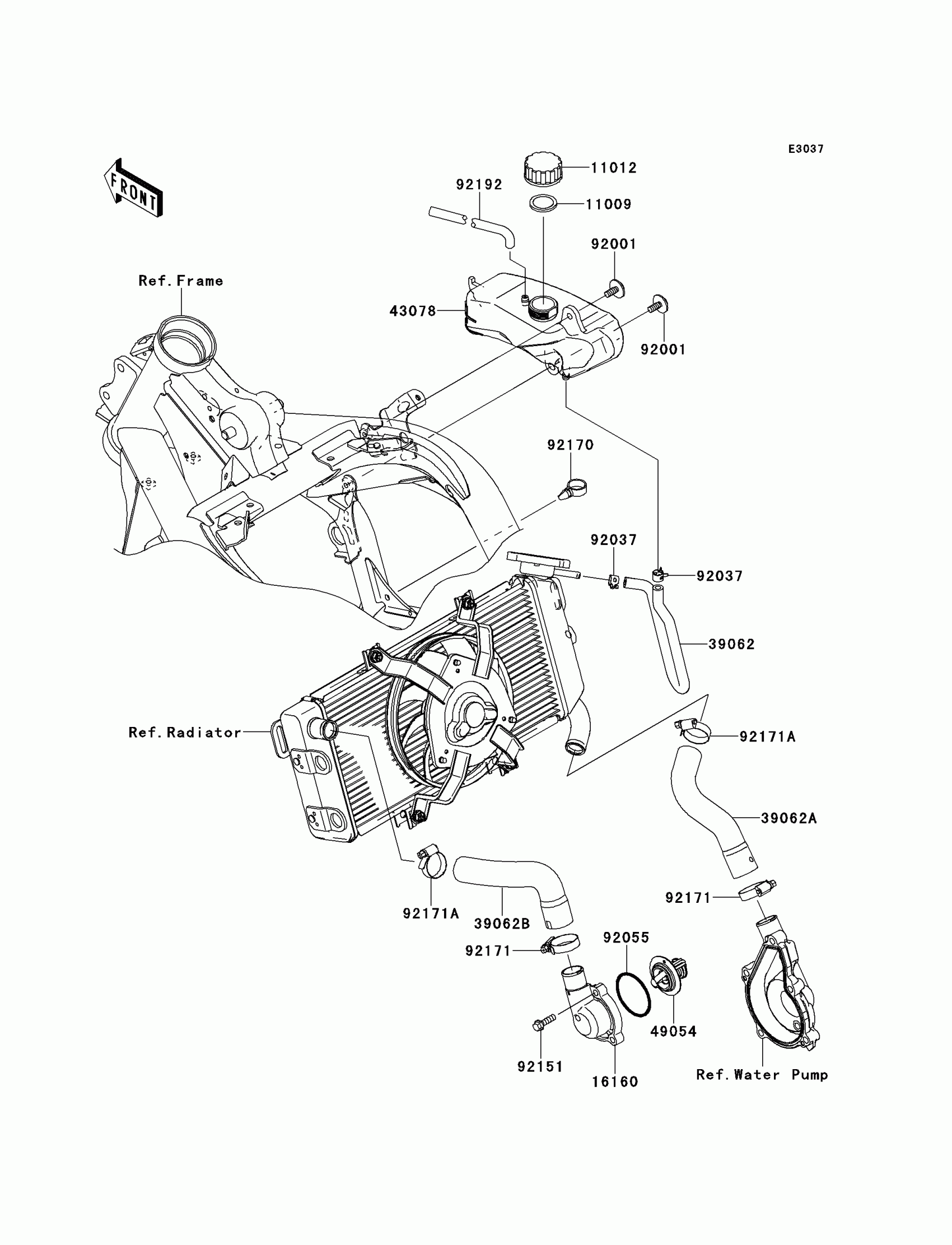

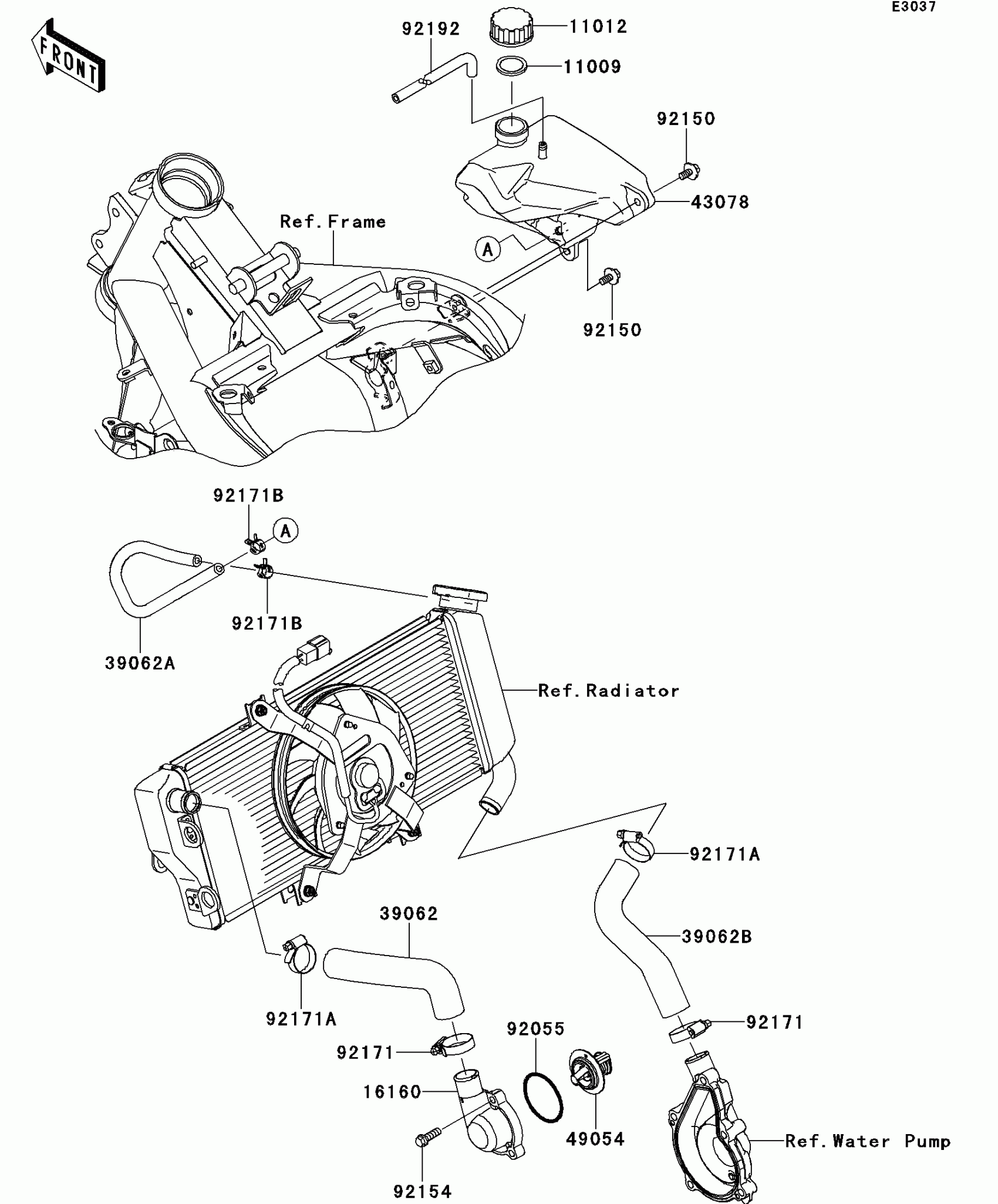

Kawasaki Ninja® 650R Water Pipe Diagram

Description

Price

11009

GASKET,RESERVOIR TANK CAP

11009-1145

$1.42

11012

CAP

11012-1084

$1.72

16160

BODY,THERMOSTAT

16160-0084

$52.34

39062

HOSE-COOLING,RAD-RESERVOIR

39062-0094

$13.23

39062A

HOSE-COOLING,W.PUMP-RAD

39062-0096

$18.83

39062B

HOSE-COOLING,THERMO-RAD

39062-0135

$18.83

43078

RESERVOIR

43078-0025

$52.34

49054

THERMOSTAT

49054-0001

$30.76

92001

BOLT,6X16

92001-1950

$4.31

92037

CLAMP,TUBE

92037-1505

$4.76

92055

RING-O,44.7X2.4

92055-1279

$7.34

92151

BOLT,FLANGED-SMALL,6X20

92151-1252

Unavailable

92170

CLAMP

92170-1067

$7.45

92171

CLAMP

92171-0261

$16.83

92171A

CLAMP

92171-0337

$9.89

92192

TUBE,BREATHER

92192-0307

$7.40
