Transmission

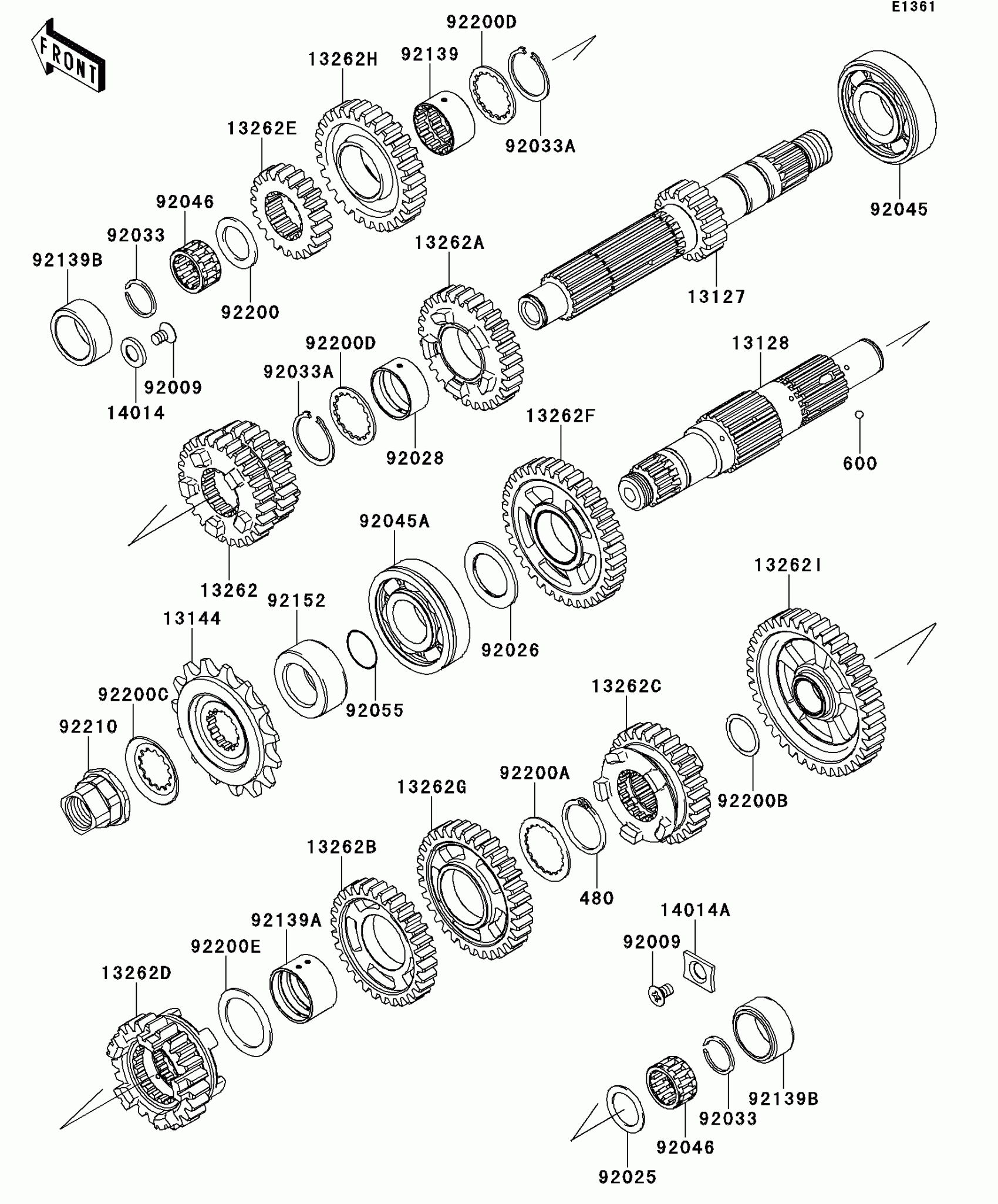

Kawasaki NINJA® 650R Transmission Diagram
#
13127
SHAFT-TRANSMISSION INPUT,16T
13127-0028
$256.64
13128
SHAFT-TRANSMISSION OUTPUT
13128-0020
$193.41
13144
SPROCKET-OUTPUT,15T,#520
13144-0024
$38.84
13262
GEAR,INPUT 3RD&4TH,24T&27T
13262-0245
Unavailable
13262A
GEAR,INPUT 5TH,29T
13262-0246
$122.30
13262B
GEAR,OUTPUT 4TH,30T
13262-0251
Unavailable
13262C
GEAR,OUTPUT 5TH,28T
13262-0252
Unavailable
13262D
GEAR,OUTPUT TOP,23T
13262-0253
Unavailable
13262E
GEAR,INPUT 2ND,21T
13262-0335
$49.95
13262F
GEAR,OUTPUT 2ND,36T
13262-0337
Unavailable
13262G
GEAR,OUTPUT 3RD,32T
13262-0338
Unavailable
13262H
GEAR,INPUT TOP,27T
13262-0447
$122.30
13262I
GEAR,OUTPUT LOW,39T
13262-0498
$122.20
14014
PLATE-POSITION,9.5X17X2.3
14014-0019
$3.90
14014A
PLATE-POSITION,RH
14014-0020
$5.65
92009
SCREW,6X10
92009-1375
$3.92
92025
SHIM,20.3X28X1.1
92025-1455
$2.61
92026
SPACER,25.3X39X2.0
92026-1529
$10.90
92028
BUSHING,INPUT GEAR
92028-1449
$25.59
92033
RING-SNAP,20MM
92033-015
$4.26
92033A
RING-SNAP,25.9X30.6X1.2
92033-1037
$4.65
92045
BEARING-BALL,25X62X17
92045-0042
$36.26
92045A
BEARING-BALL,6305N2SH2
92045-1224
$36.90
92046
BEARING-NEEDLE,KMJ20X26X13.8X1
92046-1185
$18.61
92055
RING-O,21.5X1.5
92055-0196
$4.45
92139
BUSHING,25X28.3X16.7
92139-0107
$26.91
92139A
BUSHING,OUT 3RD&4TH GEAR
92139-0108
$20.83
92139B
BUSHING,BEARING-NEEDLE
92139-0120
$33.67
92152
COLLAR,25X40X17.2
92152-0300
$28.66
92200
WASHER,20.2X30X1.8
92200-0221
$3.90
92200A
WASHER,30.3X38X1.0
92200-0222
$4.92
92200B
WASHER,20.2X25.0X0.5
92200-0291
$2.15
92200C
WASHER
92200-0506
Unavailable
92200D
WASHER,28.5X34.0X1.5
92200-1240
$10.28
92200E
WASHER,29.9X40X1.5
92200-1278
$11.99
92210
NUT,M20,L=24MM
92210-0222
$39.63
480
CIRCLIP
480J2900
$6.22
600
BALL-STEEL,5/32
600A0500
$0.81
