2008 Kawasaki Ninja® 650R Suspension/shock Absorber Diagram

← All diagrams

Find the part on the Suspension/shock Absorber diagram for your 2008 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

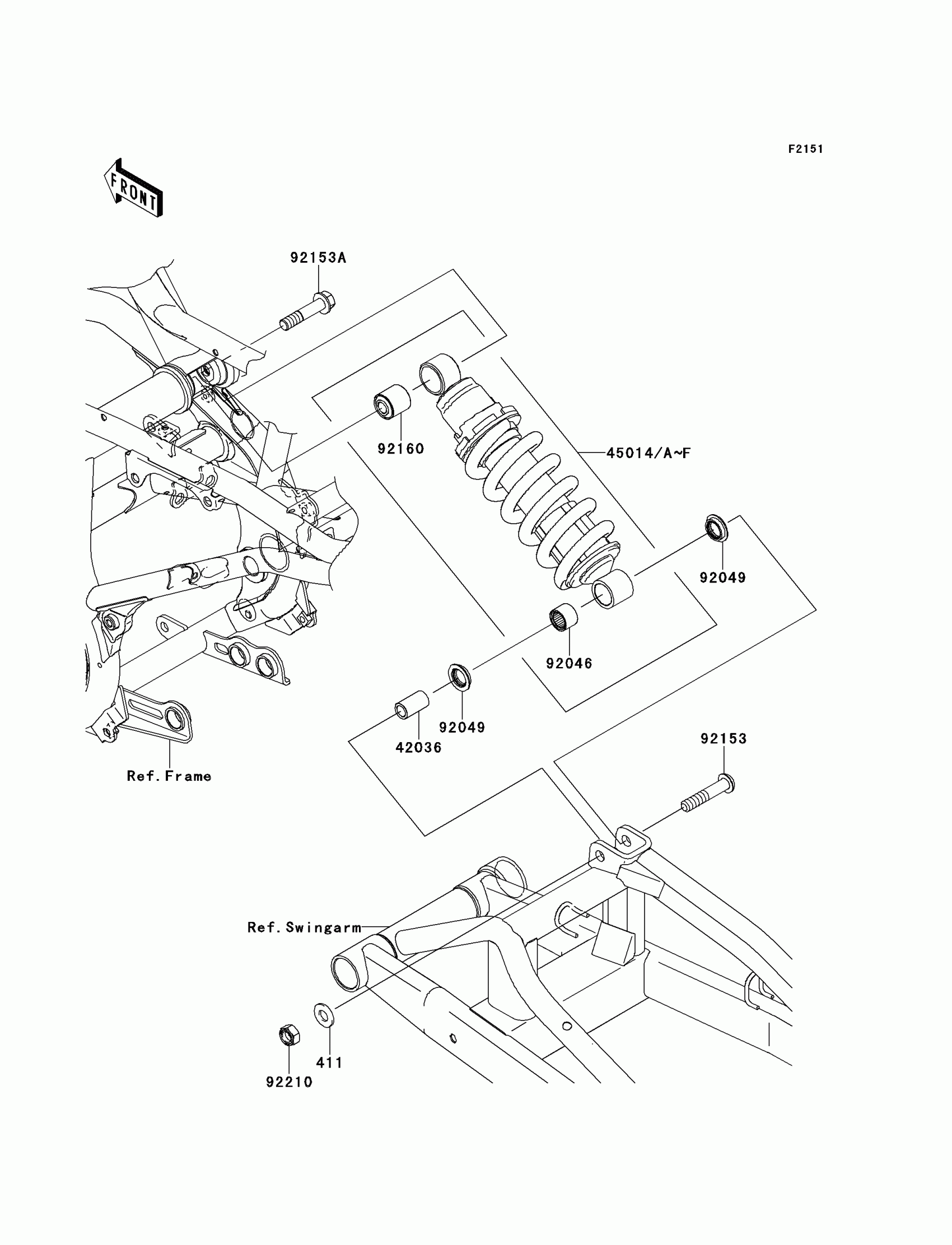

2008 Kawasaki Ninja® 650R Suspension/shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,12MM

411AA1200

1

$0.93

In stock

42036

SLEEVE,12.1X18X32

42036-0024

1

$12.95

In stock

45014D

SHOCKABSORBER,S.RED

45014-0201-VM

1

$544.08

In stock

45014E

SHOCKABSORBER,P.SILVER

45014-0201-458

1

$530.75

In stock

45014F

SHOCKABSORBER,PP.RED

45014-0201-796

1

$530.75

In stock

92046

BEARING-NEEDLE,SFYZM182417

92046-1272

1
Out of stock

92049

SEAL-OIL,KCR MF018N1

92049-1493

1
Out of stock

92153

BOLT,SOCKET,12X60

92153-1484

1
Out of stock

92153A

BOLT,FLANGED,12X55

92153-1766

1

$10.07

In stock

92160

1

$31.51

In stock

92210

NUT,LOCK,12MM

92210-0300

1
Out of stock
