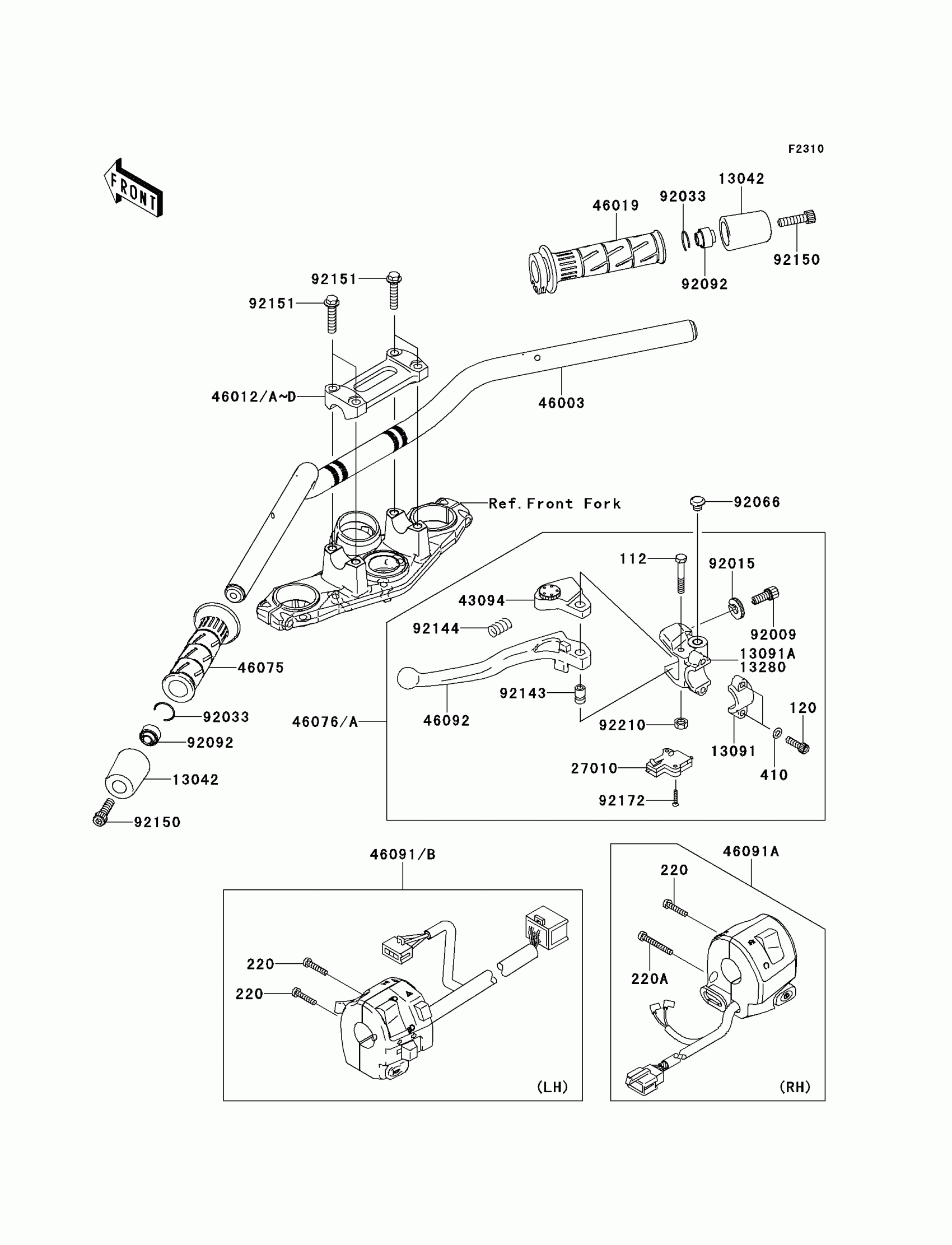

Kawasaki Ninja® 650R Handlebar Diagram

#

Description
Price

112

BOLT-UPSET,6X40

112C0640

Unavailable

120

BOLT-SOCKET,6X20

120S0620

Unavailable

220

SCREW-PAN-CROS,5X25

220C0525

$2.66

220A

SCREW-PAN-CROS,5X40

220C0540

Unavailable

410

WASHER-PLAIN-SMALL,6MM,BLACK

410F0600

Unavailable

13042

WEIGHT,HANDLE

13042-1006

Unavailable

13091

HOLDER,CLUTCH LEVER

13091-1624

$36.55

13280

HOLDER,CLUTCH LEVER

13280-0248

$52.39

27010

SWITCH,CLUTCH,BLACK

27010-1094

$25.31

43094

ADJUSTER,CLUTCH LEVER

43094-1053

$36.81

46003

HANDLE,P.SILVER

46003-0093-458

$158.88

46012C

HOLDER-HANDLE,UPP,BLACK

46012-0047-18R

$37.79

46012D

HOLDER-HANDLE,UPP,P.SILVER

46012-0047-458

$37.79

46019

GRIP-ASSY,THROTTLE

46019-0001

$37.15

46075

GRIP,HANDLE,LH

46075-1144

$18.64

46076

LEVER-ASSY-GRIP,CLUTCH

46076-0045

$111.09

46091A

HOUSING-ASSY-CONTROL,RH

46091-0092

$163.72

46091B

HOUSING-ASSY-CONTROL,LH

46091-0119

$163.27

46092

LEVER-GRIP,CLUTCH

46092-1162

$13.41

92009

SCREW,CABLE ADJUST,8MM,BLACK

92009-1134

$11.50

92015

NUT,CABLE ADJUST LOCK,8MM,BLK

92015-1197

$7.54

92033

RING-SNAP,OD=22.2

92033-1102

Unavailable

92066

PLUG,9.5X8,POLYETHYLENE

92066-1077

$3.54

92092

BUSHING-RUBBER,HANDLE

92092-1018

Unavailable

92143

COLLAR

92143-1379

$7.25

92144

SPRING

92144-1467

$4.88

92150

BOLT,SOCKET,8X30

92150-1604

$4.37

92151

BOLT,FLANGED,8X35

92151-1537

$2.19

92172

SCREW,3X16

92172-0183

$1.57

92210

NUT,LOCK,6MM

92210-0006

$1.76
