2008 Kawasaki Ninja® 650R Side Covers/chain Cover Diagram

← All diagrams

Find the part on the Side Covers/chain Cover diagram for your 2008 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

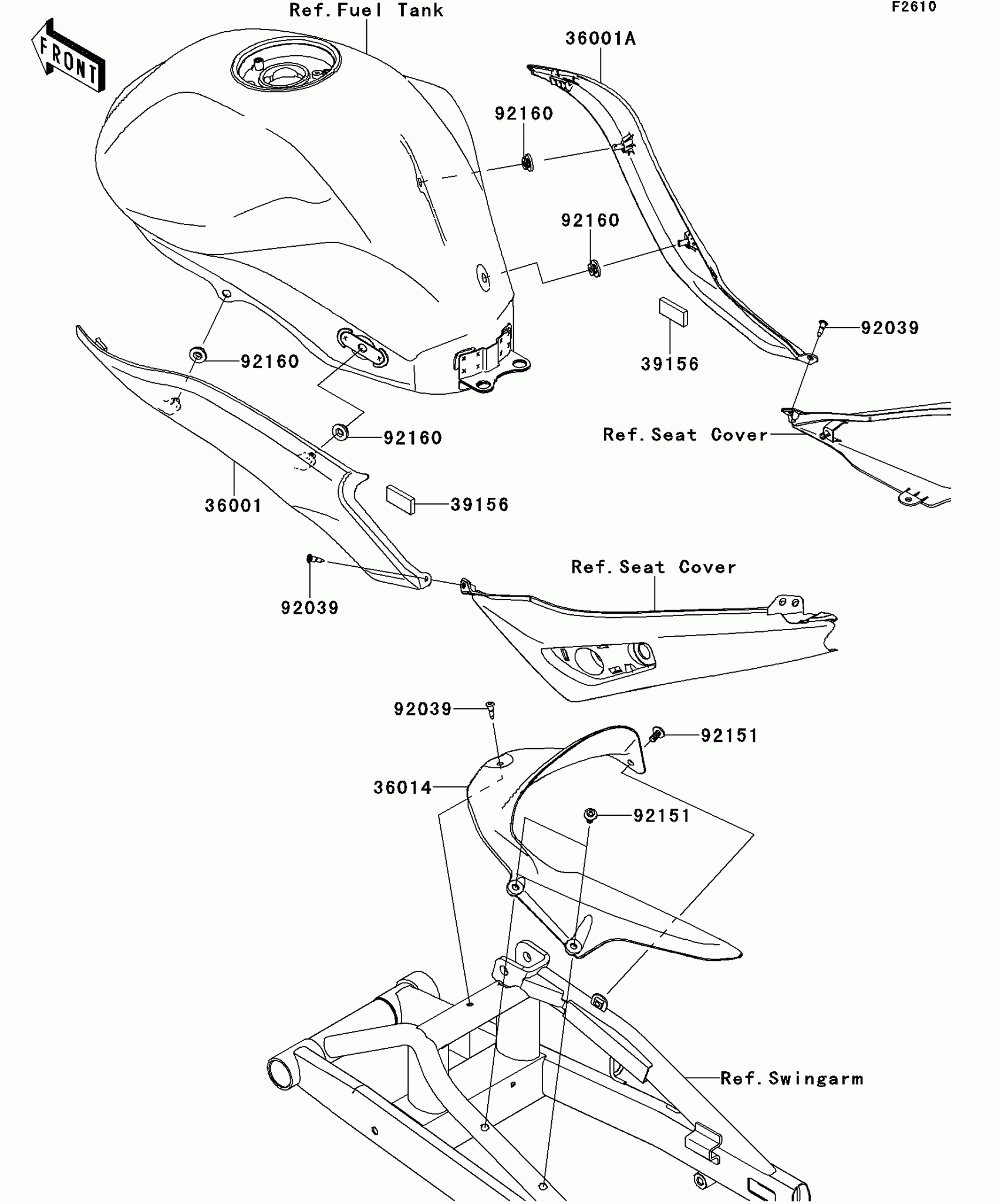

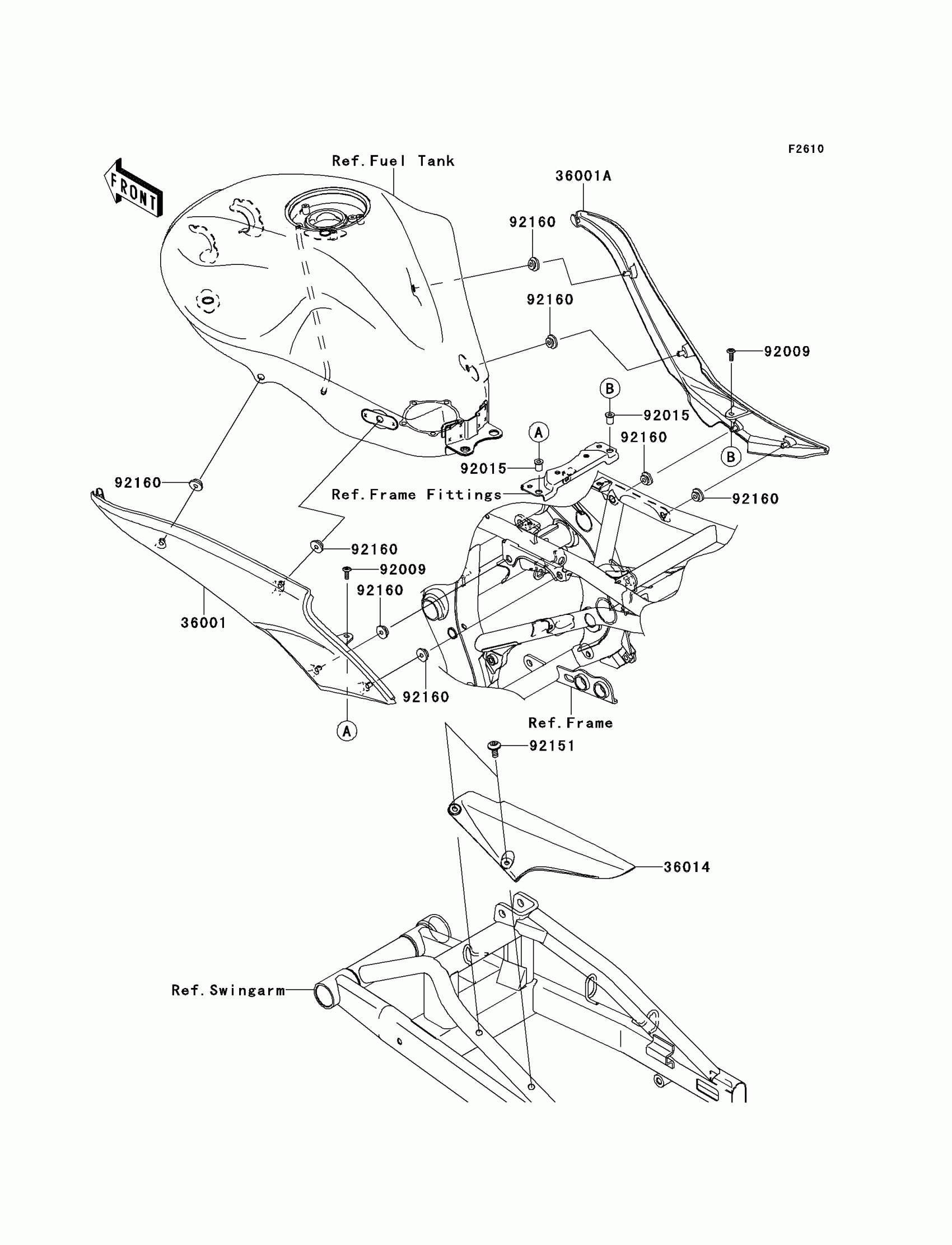

2008 Kawasaki Ninja® 650R Side Covers/chain Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

36001

COVER-SIDE,LH,F.BLACK

36001-0063-6Z

1
Out of stock

36001A

COVER-SIDE,RH,F.BLACK

36001-0064-6Z

1
Out of stock

36014

CASE-CHAIN

36014-0027

1

$29.15

In stock

92009

SCREW,5X16

92009-1909

1
Out of stock

92015

NUT,WELL,5MM

92015-1757

1
Out of stock

92151

BOLT,SOCKET,6X14

92151-1654

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock
← Rear Wheel/chain Transmission →

More Drive & Transmission diagrams
