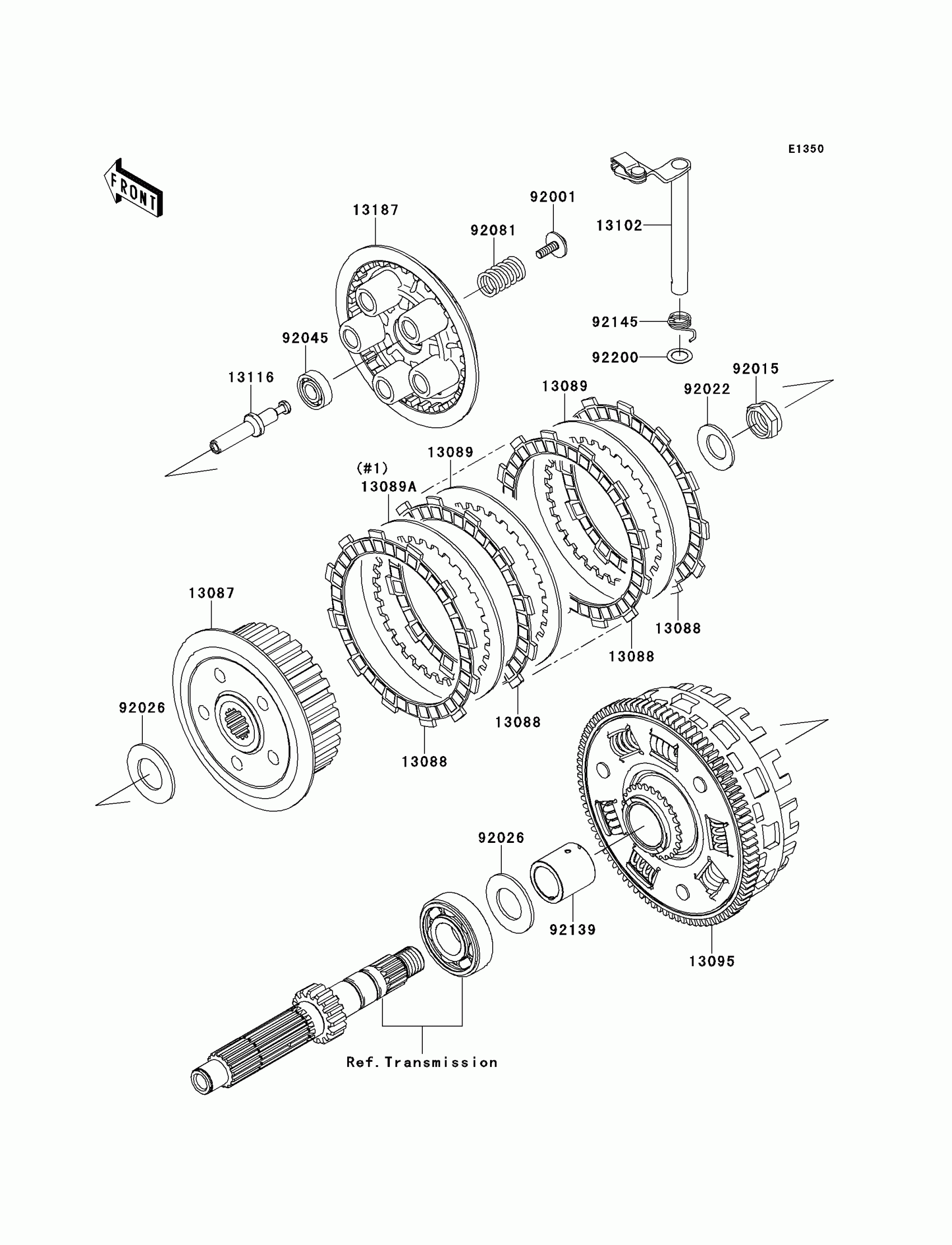

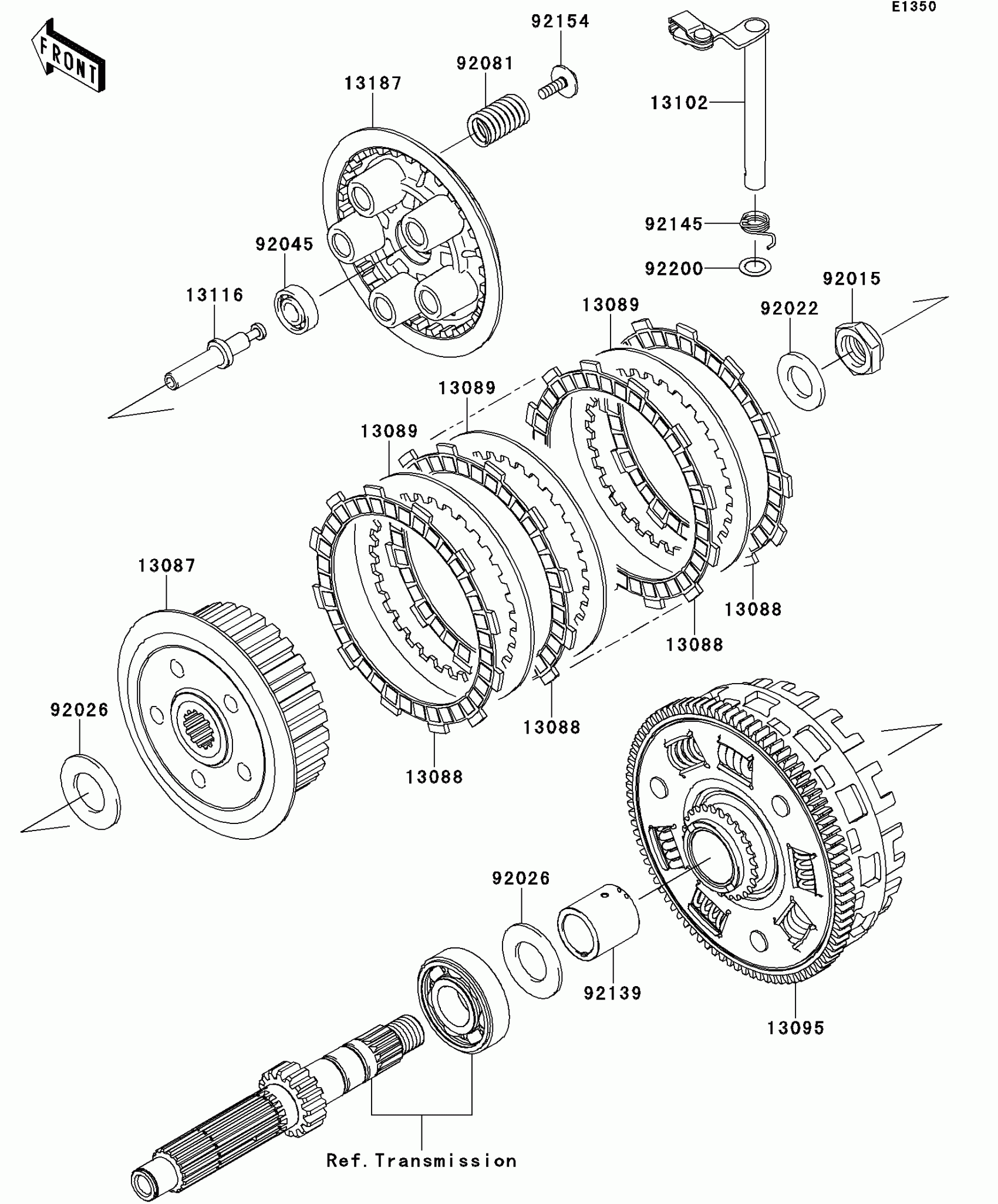

Kawasaki Ninja® 650R Clutch Diagram

Description

Price

13087

HUB-CLUTCH

13087-042

Unavailable

13088

PLATE-FRICTION

13088-1105

$11.77

13089

PLATE-CLUTCH,T=2.3

13089-0016

$9.69

13089A

PLATE-CLUTCH,T=2.6

13089-0017

$12.71

13095

HOUSING-COMP-CLUTCH

13095-0059

$517.70

13102

RELEASE-COMP-CLUTCH

13102-0021

$51.15

13116

ROD-PUSH

13116-0018

$23.37

13187

PLATE-CLUTCH OPERATING

13187-1006

$76.98

92001

BOLT,FLANGED,6X18

92001-1066

$4.67

92015

NUT,20MM

92015-1555

$9.95

92022

WASHER,20.3X36X3.7

92022-1868

$7.25

92026

SPACER,25.5X47X2.5

92026-022

$9.58

92045

BEARING-BALL,6001C3ML01

92045-1235

$12.33

92081

SPRING,CLUTCH

92081-1033

$5.64

92139

BUSHING

92139-0106

$37.45

92145

SPRING,CLUTCH RELEASE

92145-0066

$5.78

92200

WASHER,12X18.5X0.5

92200-1487

$1.95
