2011 Kawasaki Ninja® 650R Rear Brake Diagram

← All diagrams

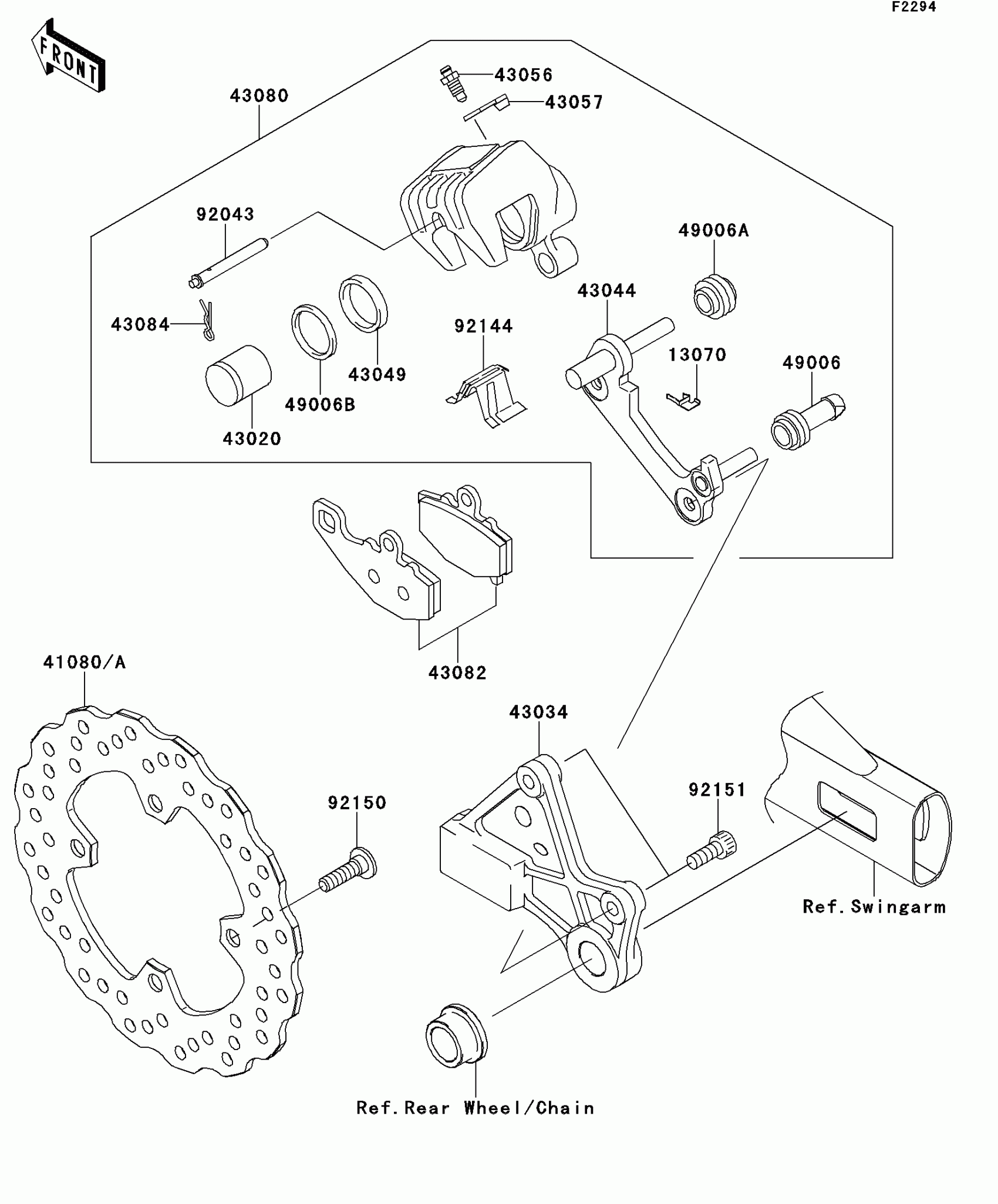

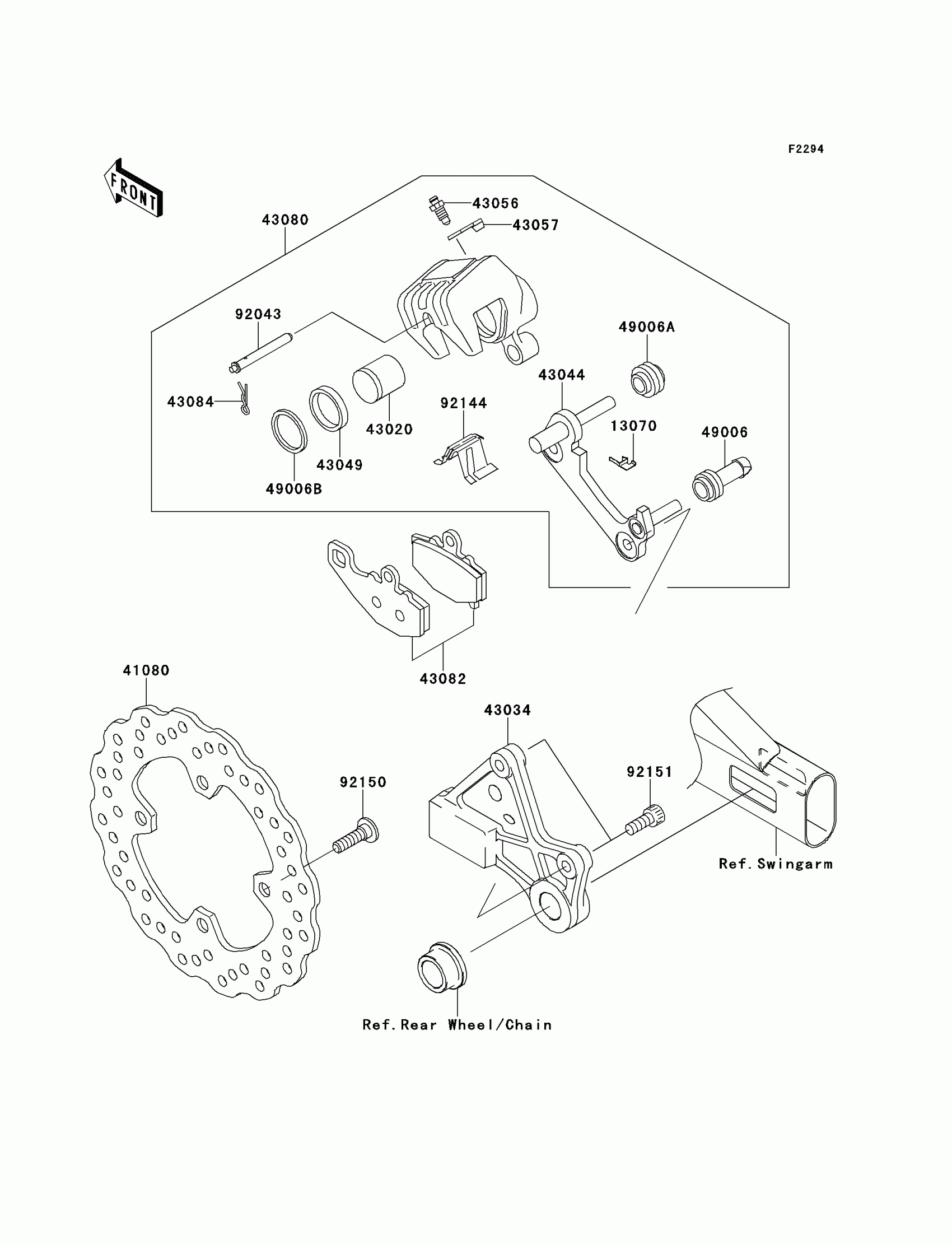

Find the part on the Rear Brake diagram for your 2011 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki Ninja® 650R Rear Brake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13070

GUIDE,BRAKE PAD

13070-0045

1
Out of stock

41080A

DISC,RR

41080-0200

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-1119

1
Out of stock

43034

HOLDER-BRAKE,REAR CALIPER

43034-0037

1
Out of stock

43044

HOLDER-COMP-CALIPER,RR

43044-1110

1
Out of stock

43049

PACKING,PISTON SEAL

43049-1097

1
Out of stock

43056

BREATHER-BRAKE

43056-1054

1
Out of stock

43057

CAP-BREATHER

43057-003

1
Out of stock

43080

CALIPER-SUB-ASSY,RR,BLACK

43080-5061-DJ

1
Out of stock

43082

PAD-ASSY-BRAKE

43082-1213

1
Out of stock

43084

CLAMP,PAD

43084-003

1
Out of stock

49006

BOOT,CALIPER

49006-1054

1
Out of stock

49006A

BOOT,CALIPER

49006-1095

1
Out of stock

49006B

BOOT,PISTON SEAL

49006-1212

1
Out of stock

92043

PIN,PAD

92043-1489

1
Out of stock

92144

SPRING,PAD

92144-1719

1
Out of stock

92150

BOLT,SOCKET,8X30

92150-1771

1
Out of stock

92151

BOLT,SOCKET,8X20

92151-1289

1
Out of stock
