2011 Kawasaki Ninja® 650R Front Master Cylinder Diagram

← All diagrams

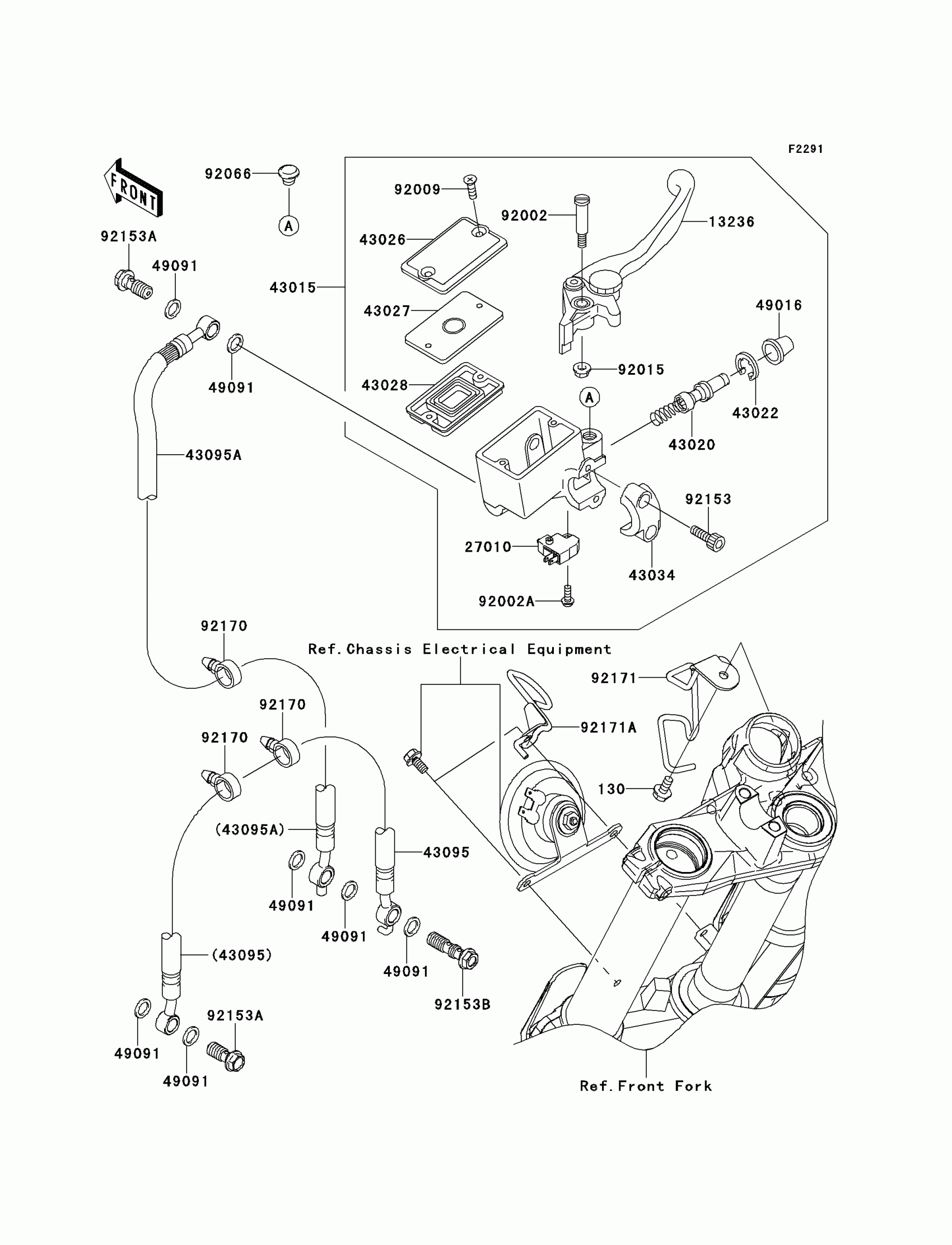

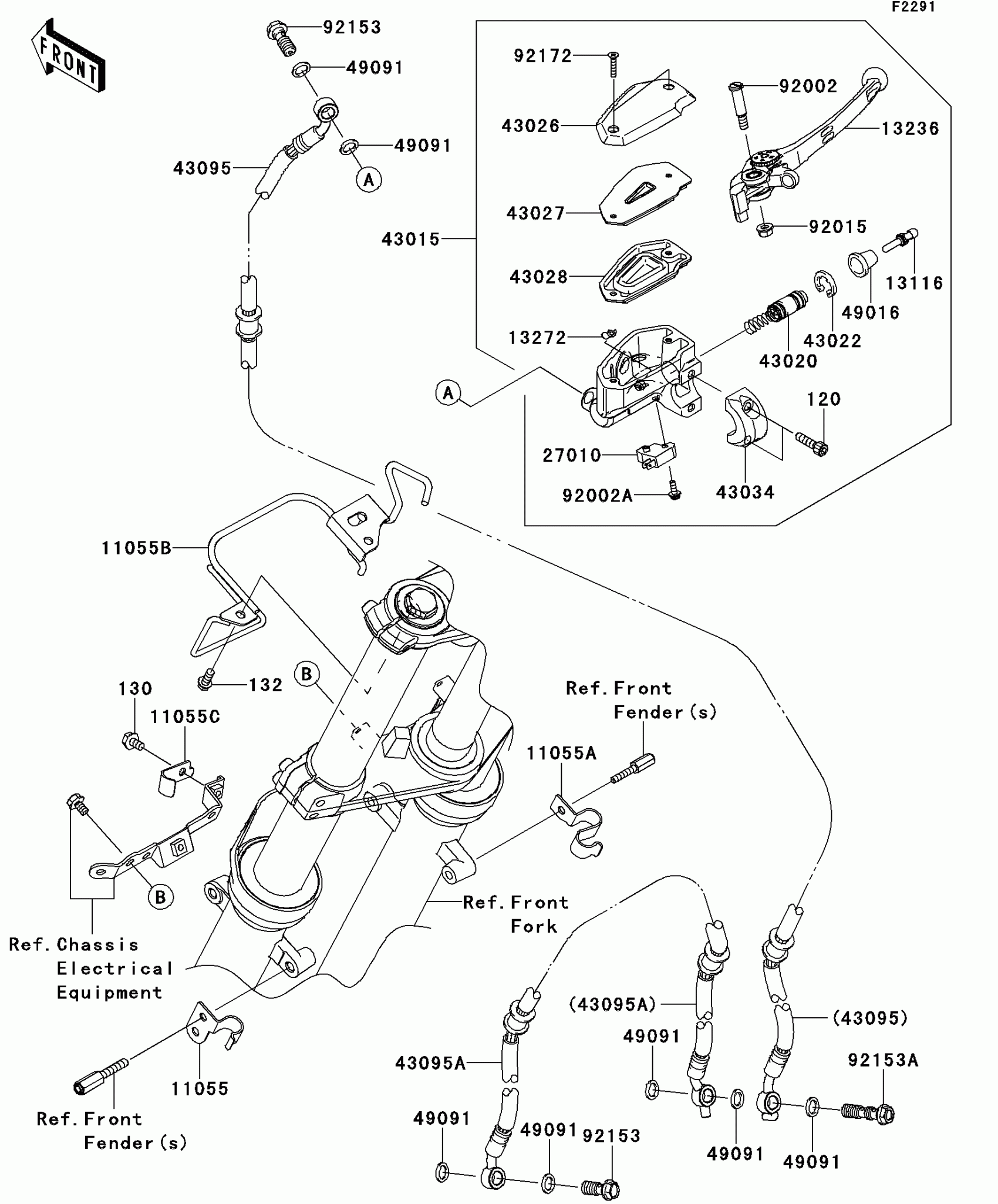

Find the part on the Front Master Cylinder diagram for your 2011 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki Ninja® 650R Front Master Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11055

BRACKET

11055-1115

1

$4.15

In stock

11055A

BRACKET

11055-1116

1

$4.10

In stock

11055B

BRACKET

11055-1559

1

$30.48

In stock

11055C

BRACKET

11055-1562

1

$4.81

In stock

13116

ROD-PUSH

13116-0032

1
Out of stock

13236

LEVER-COMP,FRONT BRAKE

13236-0169

1
Out of stock

13272

PLATE

13272-0573

1

$7.47

In stock

27010

SWITCH,BRAKE

27010-0025

1
Out of stock

43015

CYLINDER-ASSY-MASTER,FR

43015-0118

1
Out of stock

43020

PISTON-COMP-BRAKE

43020-0015

1
Out of stock

43022

STOPPER-BRAKE,PISTON

43022-1010

1
Out of stock

43026

CAP-BRAKE

43026-0019

1
Out of stock

43027

PLATE-DIAPHRAGM

43027-0008

1
Out of stock

43028

DIAPHRAGM

43028-0015

1
Out of stock

43034

HOLDER-BRAKE,MASTER-CYLINDER

43034-0050

1
Out of stock

43095

HOSE-BRAKE,FR,L=755

43095-0411

1
Out of stock

43095A

HOSE-BRAKE,FR,L=545

43095-0412

1
Out of stock

49016

COVER-SEAL,MASTER CYLINDER

49016-1044

1
Out of stock

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

1
Out of stock

92002

BOLT,LEVER SET,BLACK

92002-1322

1
Out of stock

92002A

BOLT,SCREW,4X12

92002-1323

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92153

BOLT,OIL,L=23

92153-0627

1
Out of stock

92153A

BOLT,OIL,L=37

92153-0628

1
Out of stock

92172

SCREW,4X20

92172-0320

1
Out of stock

120

BOLT-SOCKET,6X22

120CB0622

1
Out of stock

130

BOLT-FLANGED,6X10

130BB0610

1

$2.05

In stock

132

1

$1.31

In stock
