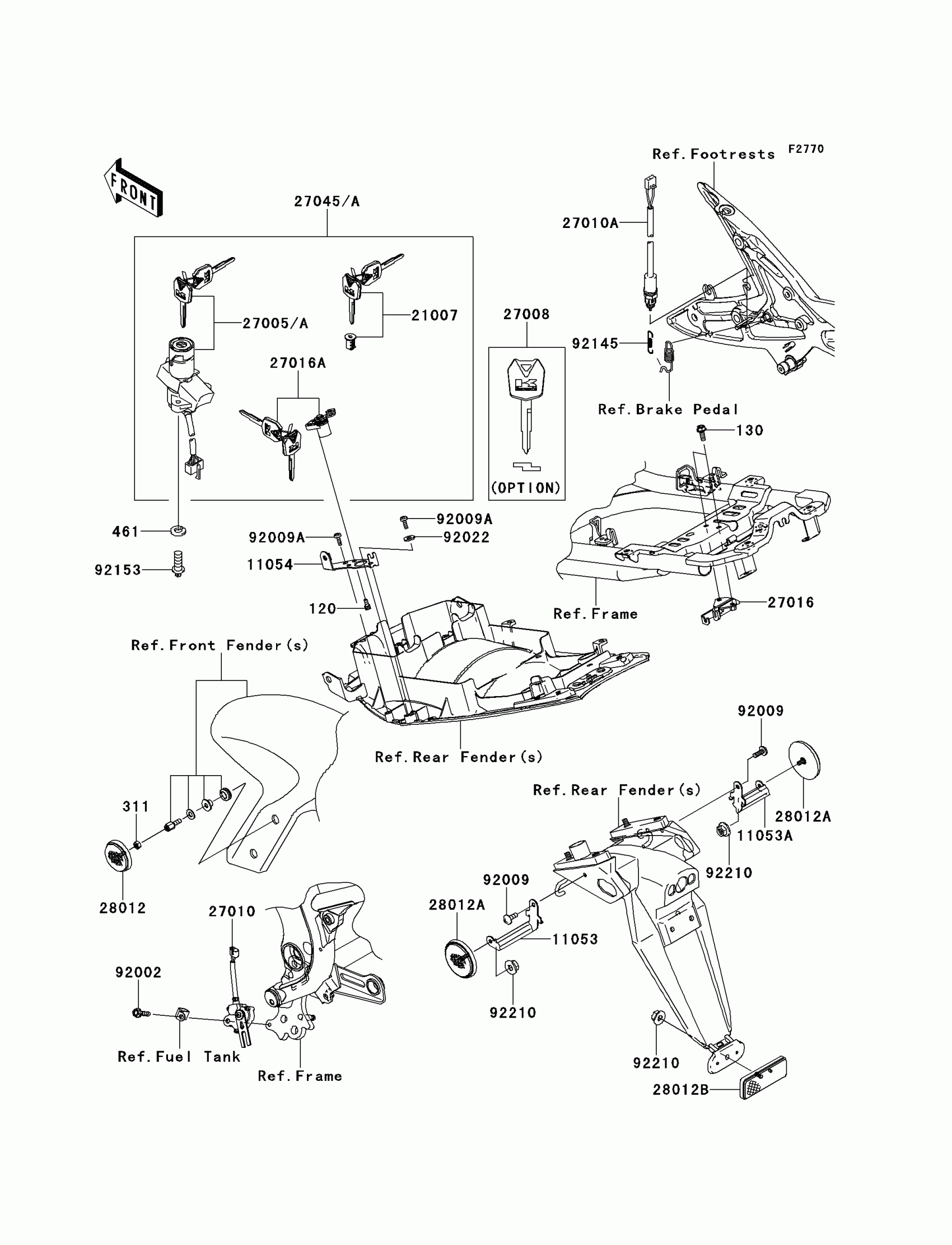

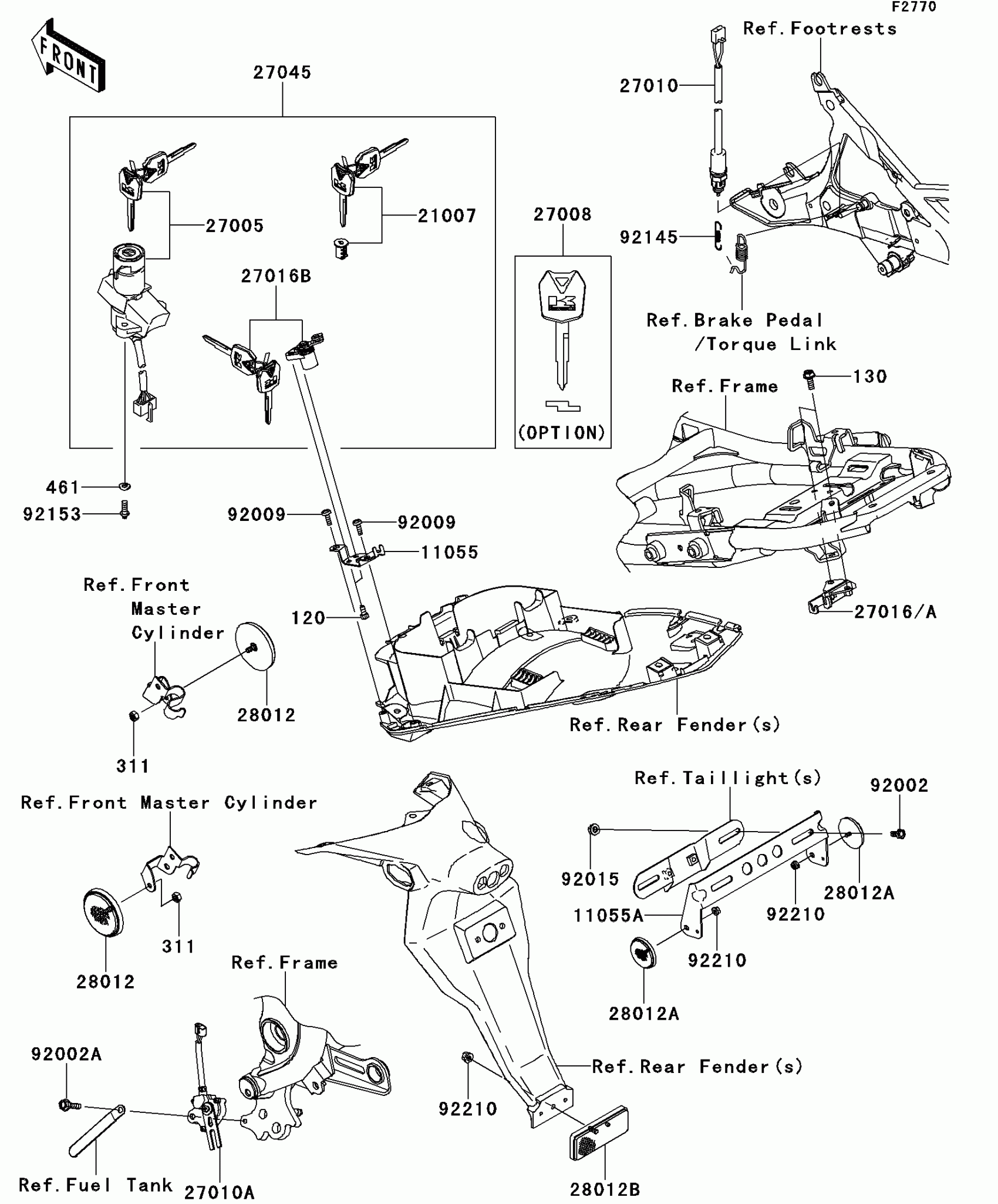

Kawasaki Ninja® 650R Ignition Switch/Locks/Reflectors Diagram

Description

Price

120

BOLT-SOCKET,5X12

120S0512

$1.71

130

BOLT-FLANGED,6X12

130L0612

$2.19

311

NUT-HEX

311C0500

$0.43

461

WASHER-SPRING

461L0600

$0.71

11053

BRACKET,REAR REFLECTOR,LH

11053-0405

$13.07

11053A

BRACKET,REAR REFLECTOR,RH

11053-0406

$13.07

11054

BRACKET,SEAT LOCK

11054-0406

$11.53

21007

ROTOR,LOCK,TANK CAP

21007-5057

$84.71

27005A

SWITCH-ASSY-IGNITION

27005-5139

$186.48

27008

KEY-LOCK,BLANK

27008-0030

$18.66

27010

SWITCH,SIDE STAND

27010-1455

$117.84

27010A

SWITCH,REAR BRAKE

27010-1479

$30.06

27016

LOCK-ASSY,SEAT STRIKER

27016-1115

$28.59

27016A

LOCK-ASSY,SEAT

27016-5309

$86.99

27045A

SWITCH-ASSY

27045-5356

$445.48

28012

REFLECTOR-REFLEX,FR,SIDE

28012-0001

$24.14

28012A

REFLECTOR-REFLEX

28012-0002

$24.14

28012B

REFLECTOR-REFLEX

28012-1077

$23.25

92002

BOLT,FLANGED,6X25

92002-1582

$4.69

92009

SCREW,5X14

92009-1653

$3.96

92009A

SCREW,6X14

92009-3845

$1.06

92022

WASHER,6.5X16X2

92022-1342

$3.92

92145

SPRING,REAR BRAKE SWITCH

92145-0091

$3.69

92153

BOLT,TORX,6X16

92153-0967

$2.61

92210

NUT,FLANGED,5MM

92210-0007

$2.70
