2011 Kawasaki Ninja® 650R Fuel Tank Diagram

← All diagrams

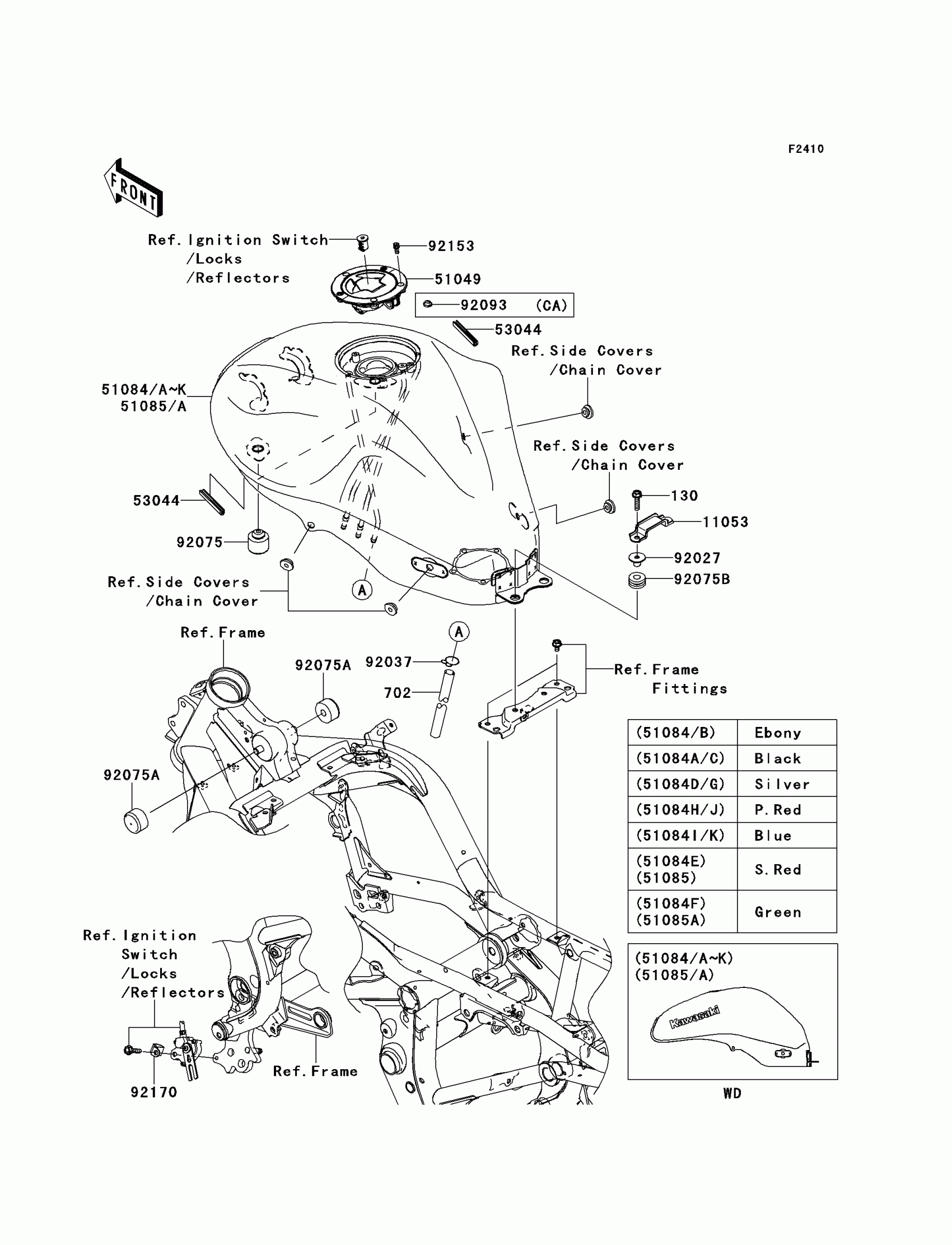

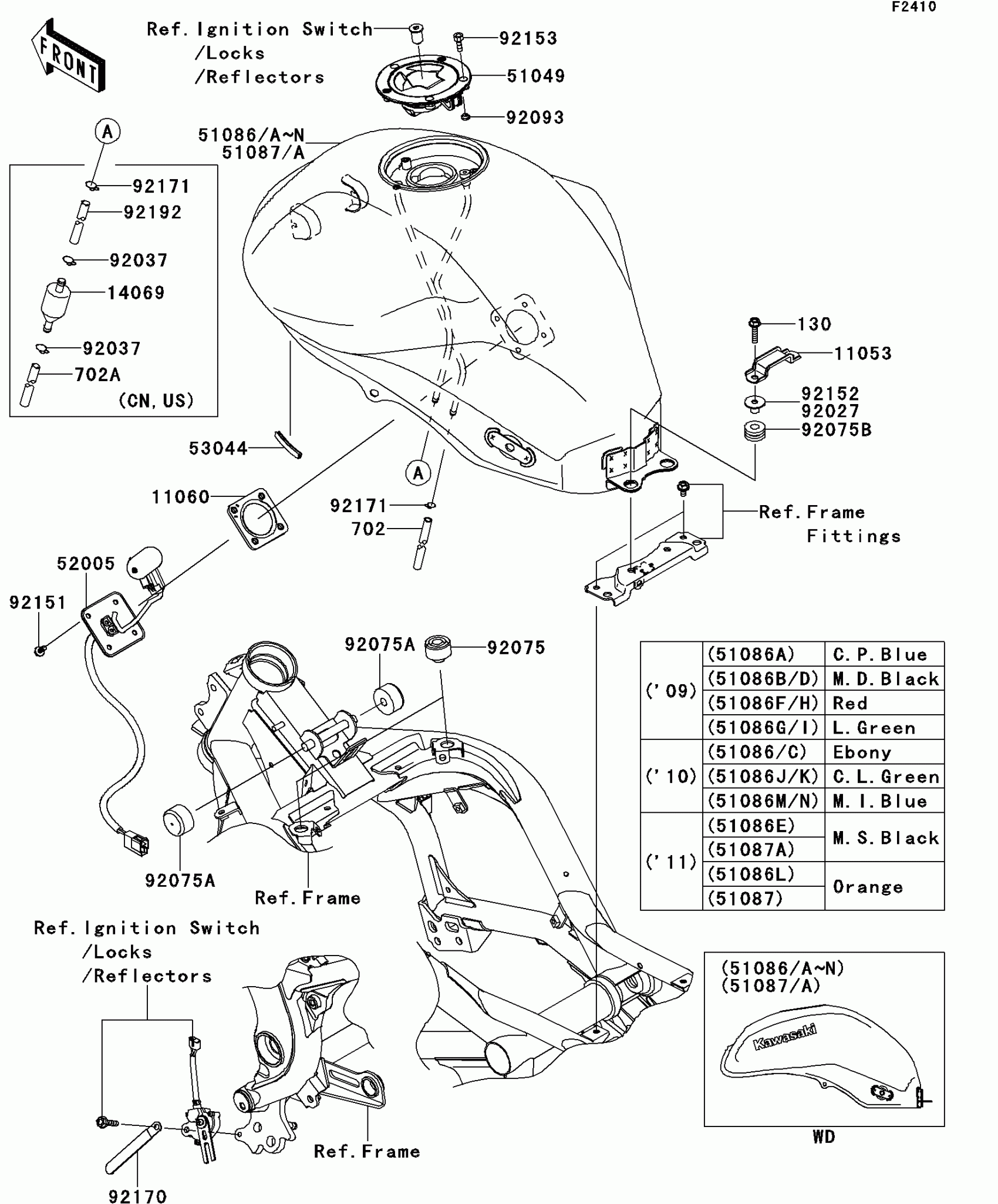

Find the part on the Fuel Tank diagram for your 2011 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2011 Kawasaki Ninja® 650R Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11053

BRACKET,SEAT

11053-1812

1

$5.04

In stock

11060

GASKET,FUEL GAUGE

11060-1952

1
Out of stock

14069

BREATHER,FUEL TANK

14069-1004

1

$8.09

In stock

51049

CAP-TANK,FUEL

51049-0039

1
Out of stock

51086E

TANK-COMP-FUEL,M.S.BLACK

51086-5161-15Z

1
Out of stock

51086L

TANK-COMP-FUEL,C.B.ORANGE

51086-5376-15T

1
Out of stock

51087

TANK-COMP-FUEL,C.B.ORANGE

51087-5077-15T

1
Out of stock

51087A

TANK-COMP-FUEL,M.S.BLACK

51087-5081-15Z

1
Out of stock

52005

GAUGE,FUEL

52005-0076

1
Out of stock

53044

TRIM,L=60

53044-1249

1

$5.71

In stock

92037

CLAMP,TUBE

92037-147

1
Out of stock

92075

DAMPER

92075-015

1
Out of stock

92075A

DAMPER,FUEL TANK

92075-125

1
Out of stock

92075B

DAMPER,10X24X12

92075-1690

1
Out of stock

92093

SEAL,FUEL TANK CAP

92093-1030

1
Out of stock

92151

BOLT,5X12

92151-1599

1
Out of stock

92152

COLLAR,6.5X10X13.1

92152-0910

1
Out of stock

92153

BOLT,SOCKET,5X16

92153-1616

1
Out of stock

92170

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock

92171

CLAMP,8X0.7

92171-1973

1
Out of stock

92192

TUBE,6X9X500

92192-0733

1
Out of stock

130

BOLT-FLANGED,6X25

130BB0625

1

$1.92

In stock

702

TUBE-RUBBER,6X9X690

702A06690

1
Out of stock

702A

TUBE-RUBBER

702A07100

1
Out of stock
