2008 Kawasaki Ninja® 650R Fuel Evaporative System Diagram

← All diagrams

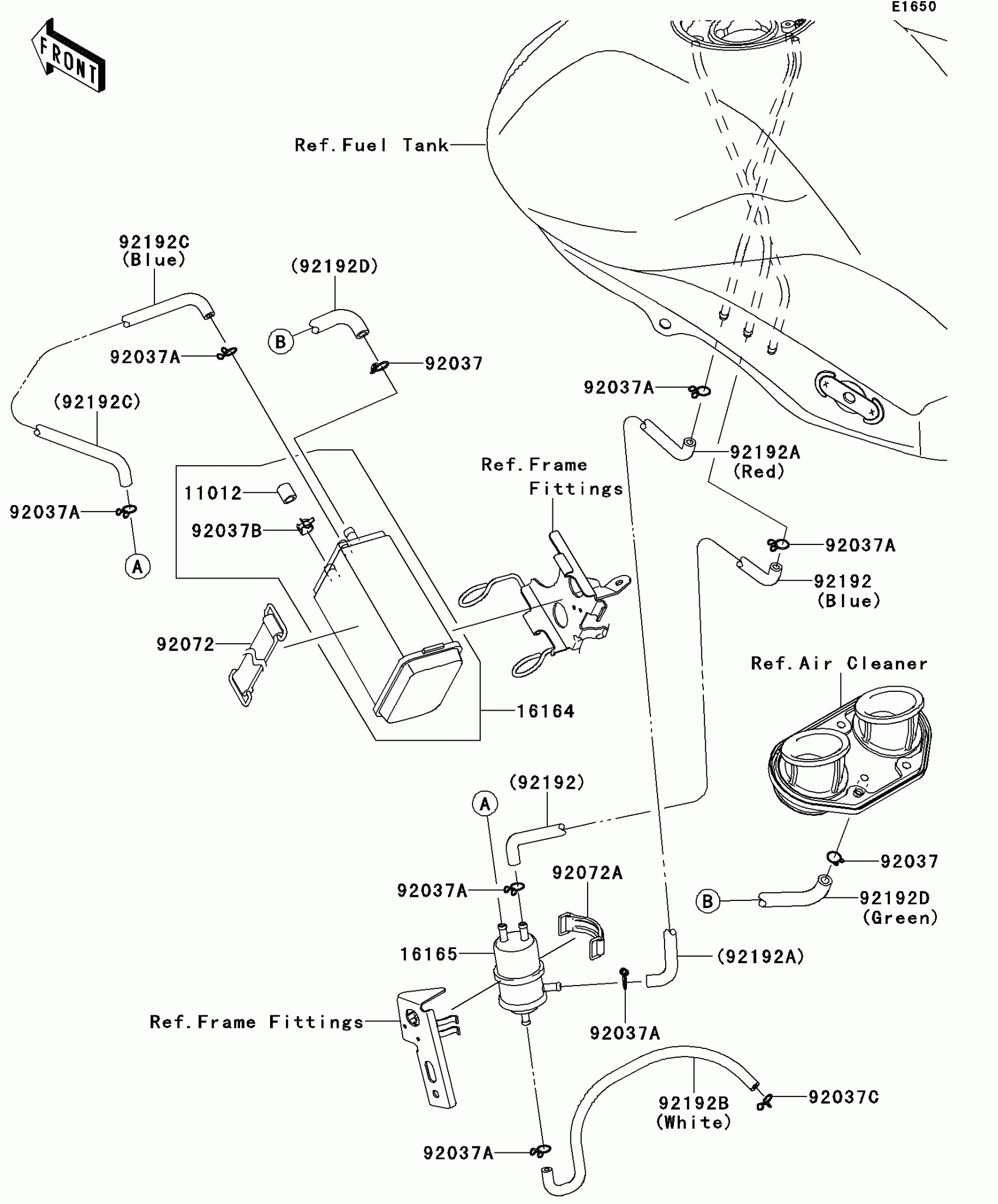

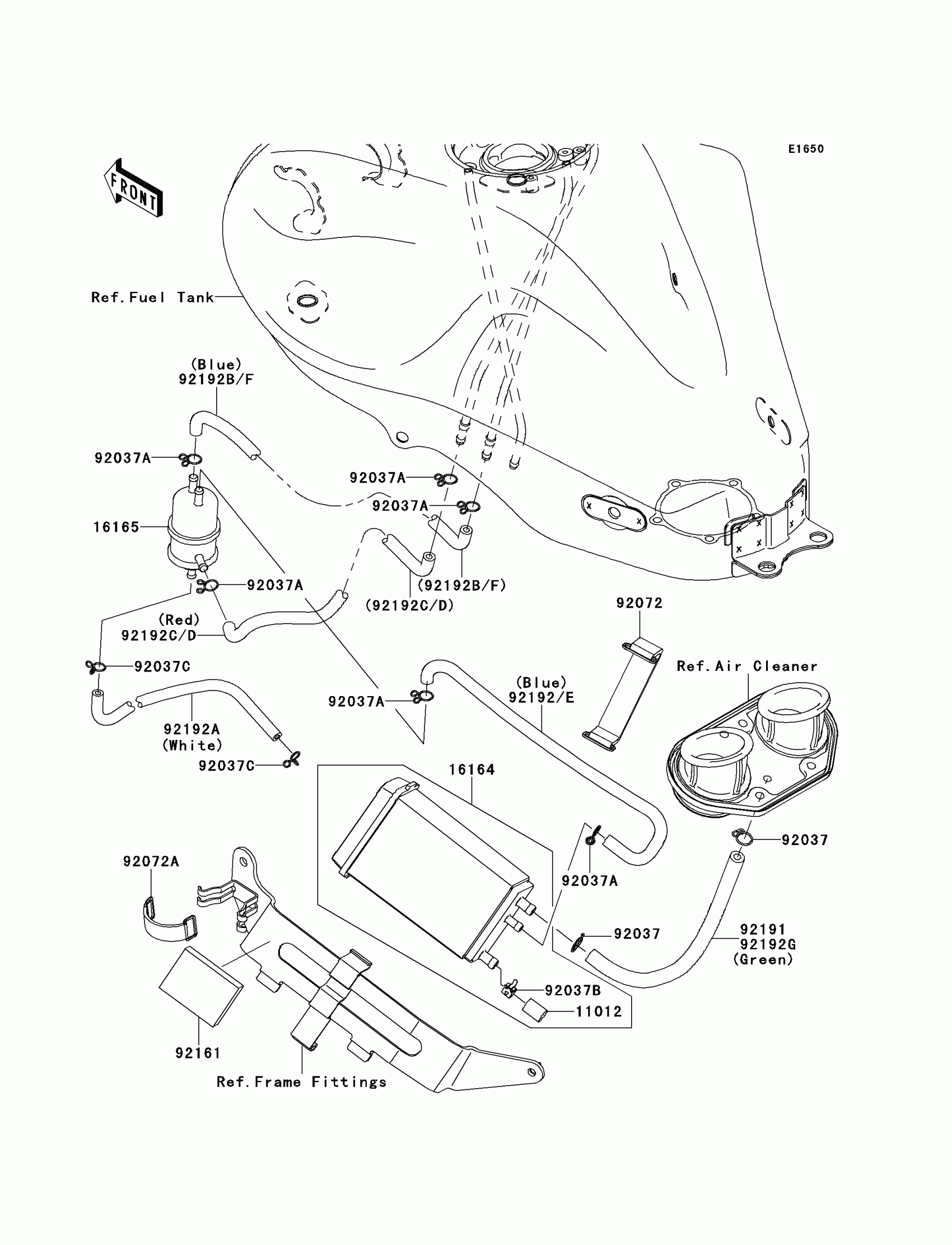

Find the part on the Fuel Evaporative System diagram for your 2008 Kawasaki Ninja® 650R, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2008 Kawasaki Ninja® 650R Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1
Out of stock

16164

CANISTER

16164-1054

1
Out of stock

16165

SEPARATOR

16165-1001

1
Out of stock

92037

CLAMP-HOSE

92037-1104

1
Out of stock

92037A

CLAMP,TUBE

92037-147

1
Out of stock

92037B

CLAMP,CANISTER

92037-1512

1
Out of stock

92037C

CLAMP

92037-1712

1
Out of stock

92072

BAND

92072-1384

1
Out of stock

92072A

BAND,L=50

92072-1419

1
Out of stock

92161

DAMPER

92161-0055

1
Out of stock

92192A

TUBE,THROTTLE-SEPARATOR,WHITE

92192-0251

1
Out of stock

92192D

TUBE,TANK-SEPARATOR,RED

92192-0584

1
Out of stock

92192E

TUBE,SEPARATOR-CANISTER,BLUE

92192-0585

1
Out of stock

92192F

TUBE,SEPARATOR-TANK,BLUE

92192-0586

1
Out of stock

92192G

TUBE,CANISTER-A/C,GREEN

92192-0587

1
Out of stock
