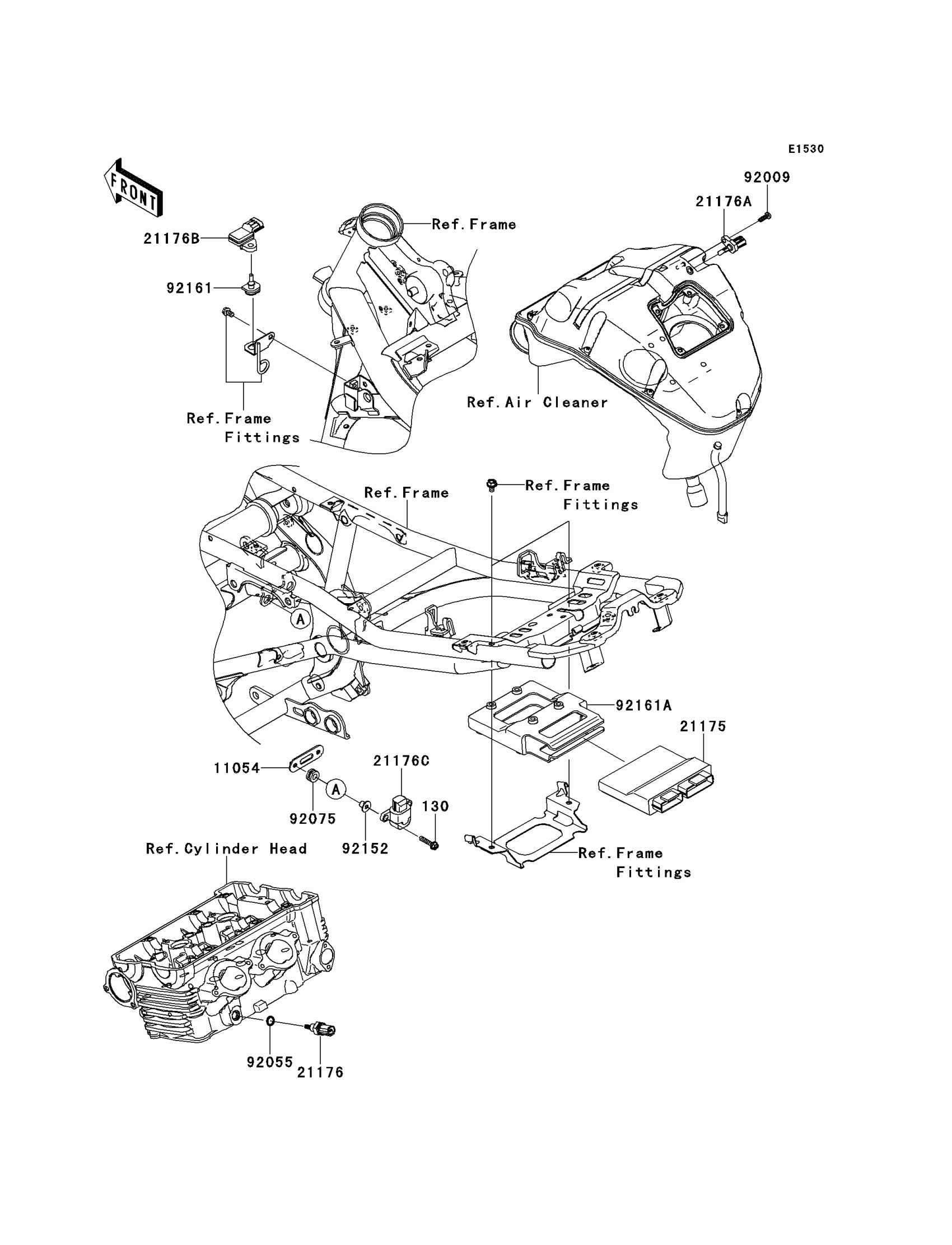

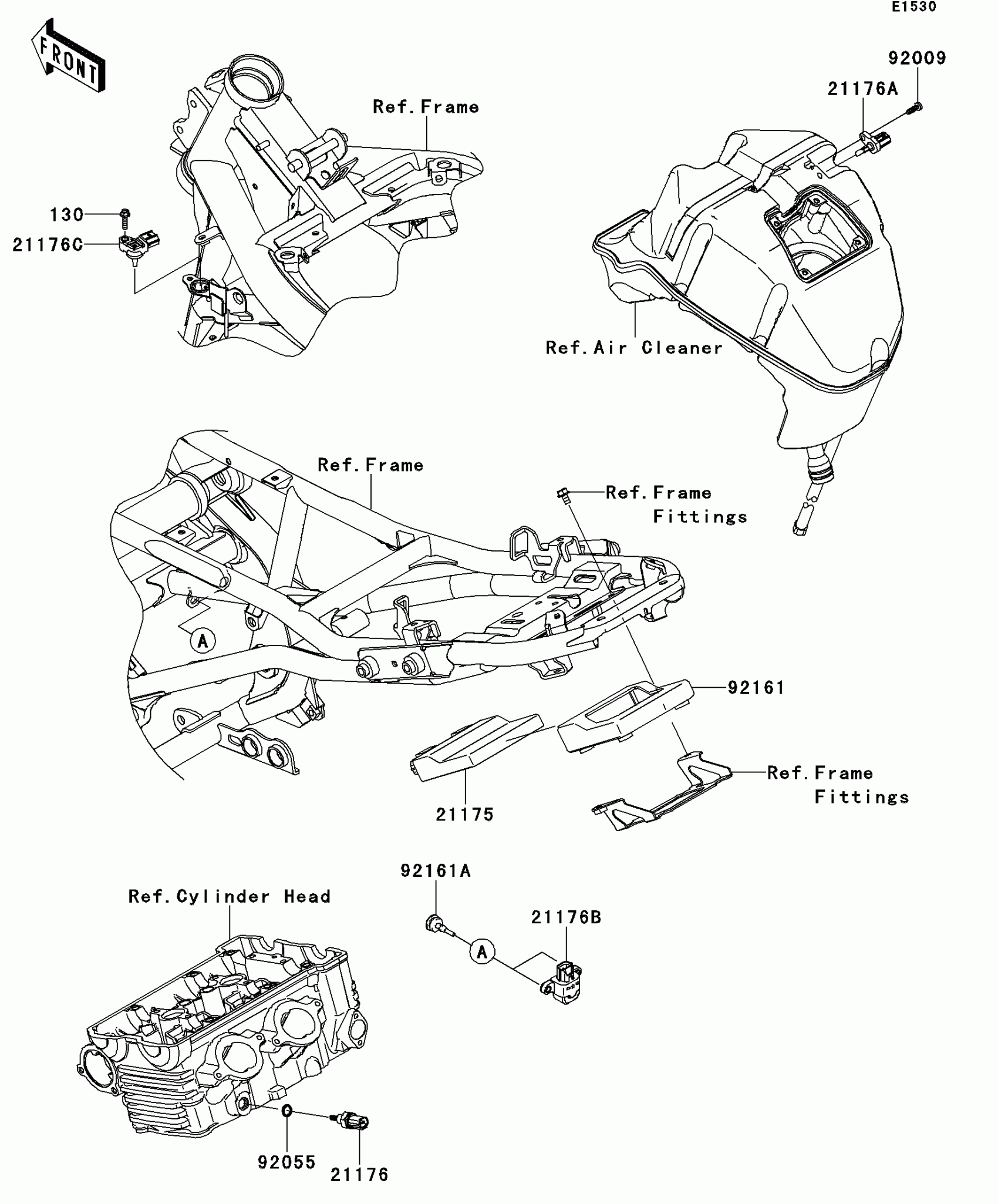

Kawasaki Ninja® 650R Fuel Injection Diagram

Description

Price

130

BOLT-FLANGED,5X25

130J0525

$3.51

11054

BRACKET

11054-0133

$8.12

21175

CONTROL UNIT-ELECTRONIC

21175-0100

$767.15

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176B

SENSOR,PRESSURE

21176-0058

$141.24

21176C

SENSOR,VEHICLE-DOWN

21176-0067

$90.37

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92055

RING-O,9.5X1.9

92055-0016

$8.89

92075

DAMPER

92075-1912

$5.77

92152

COLLAR

92152-0134

$7.65

92161

DAMPER

92161-0041

$5.00

92161A

DAMPER

92161-0179

$22.76
