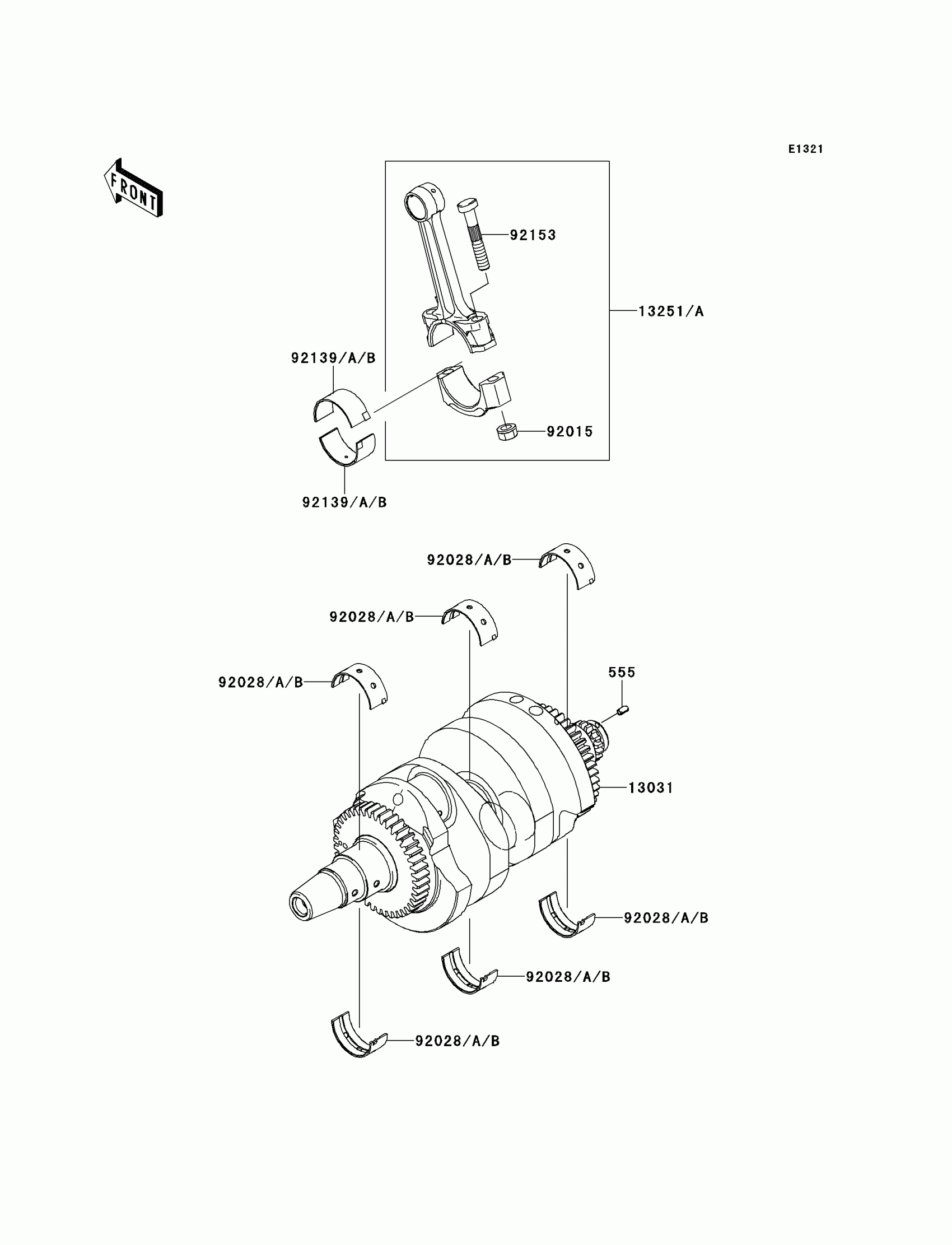

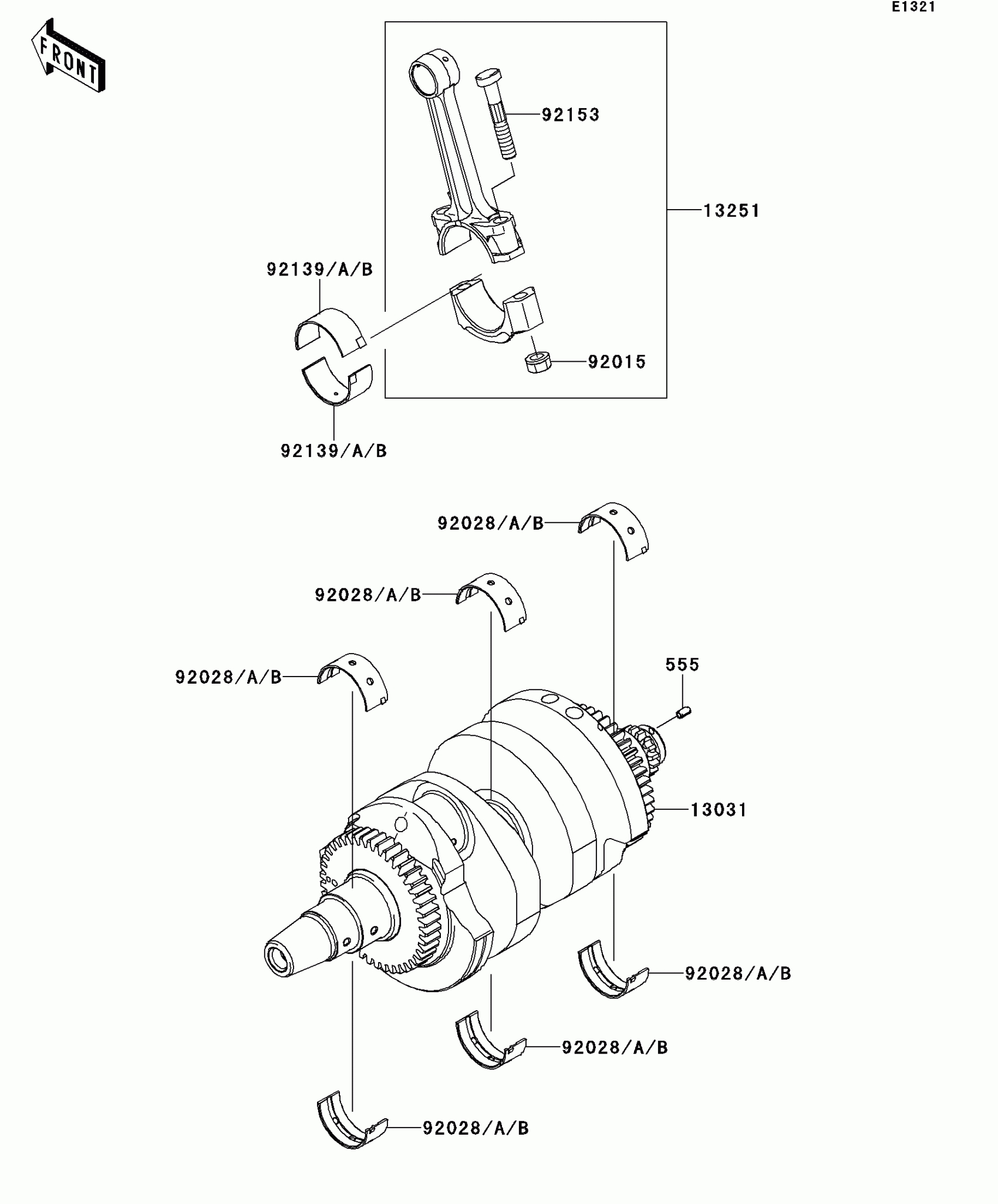

Kawasaki Ninja® 650R Crankshaft Diagram

Description

Price

555

PIN-SPRING,4X8

555A0408

$3.92

13031

CRANKSHAFT-COMP

13031-0071

Unavailable

13251

ROD-ASSY-CONNECTING,J

13251-0010-JJ

Unavailable

13251A

ROD-ASSY-CONNECTING,K

13251-0010-KK

Unavailable

92015

NUT,FLANGED,8MM

92015-1311

$7.34

92028

BUSHING,CRANKSHAFT,BLUE

92028-1903

$18.26

92028A

BUSHING,CRANKSHAFT,BLACK

92028-1904

Unavailable

92028B

BUSHING,CRANKSHAFT,BROWN

92028-1905

Unavailable

92139

BUSHING,CON-ROD,BLUE

92139-0114

$14.14

92139A

BUSHING,CON-ROD,BLACK

92139-0115

Unavailable

92139B

BUSHING,CON-ROD,BROWN

92139-0116

Unavailable

92153

BOLT,CON-ROD,8X49

92153-0957

$3.90
