Description

Price

36001

COVER-SIDE,LH,M.M.G.GRAY

36001-0650-68P

$28.66

36001A

COVER-SIDE,RH,M.M.G.GRAY

36001-0651-68P

$28.66

36014

CASE-CHAIN

36014-0044

$17.48

36036

COVER-SIDE,LH,EBONY

36036-5309-H8

$102.49

36036A

COVER-SIDE,RH,EBONY

36036-5310-H8

$102.49

36036B

COVER-SIDE,LH,P.R.WHITE

36036-5386-68N

$78.63

36036C

COVER-SIDE,RH,P.R.WHITE

36036-5387-68N

$78.63

36041

COVER-TAIL,LH,P.R.WHITE

36041-0033-68N

$72.11

36041A

COVER-TAIL,LH,M.M.G.GRAY

36041-0033-68P

$72.11

36041B

COVER-TAIL,RH,P.R.WHITE

36041-0034-68N

$75.55

36041C

COVER-TAIL,RH,M.M.G.GRAY

36041-0034-68P

$75.55

36042

COVER-TAIL,LH,EBONY

36042-5167-H8

$138.54

36042A

COVER-TAIL,RH,EBONY

36042-5168-H8

$138.54

39156

PAD,COVER-SIDE,LH

39156-2617

$41.75

39156A

PAD,COVER-SIDE,RH

39156-2618

$41.75

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-1592

$3.02

92154

BOLT,SOCKET,5X20

92154-0210

$2.12

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92154B

BOLT,SOCKET,5X16

92154-1701

$1.19

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER,6X20X7.5

92161-1937

$1.94

130

BOLT-FLANGED,5X12

130BA0512

$2.22

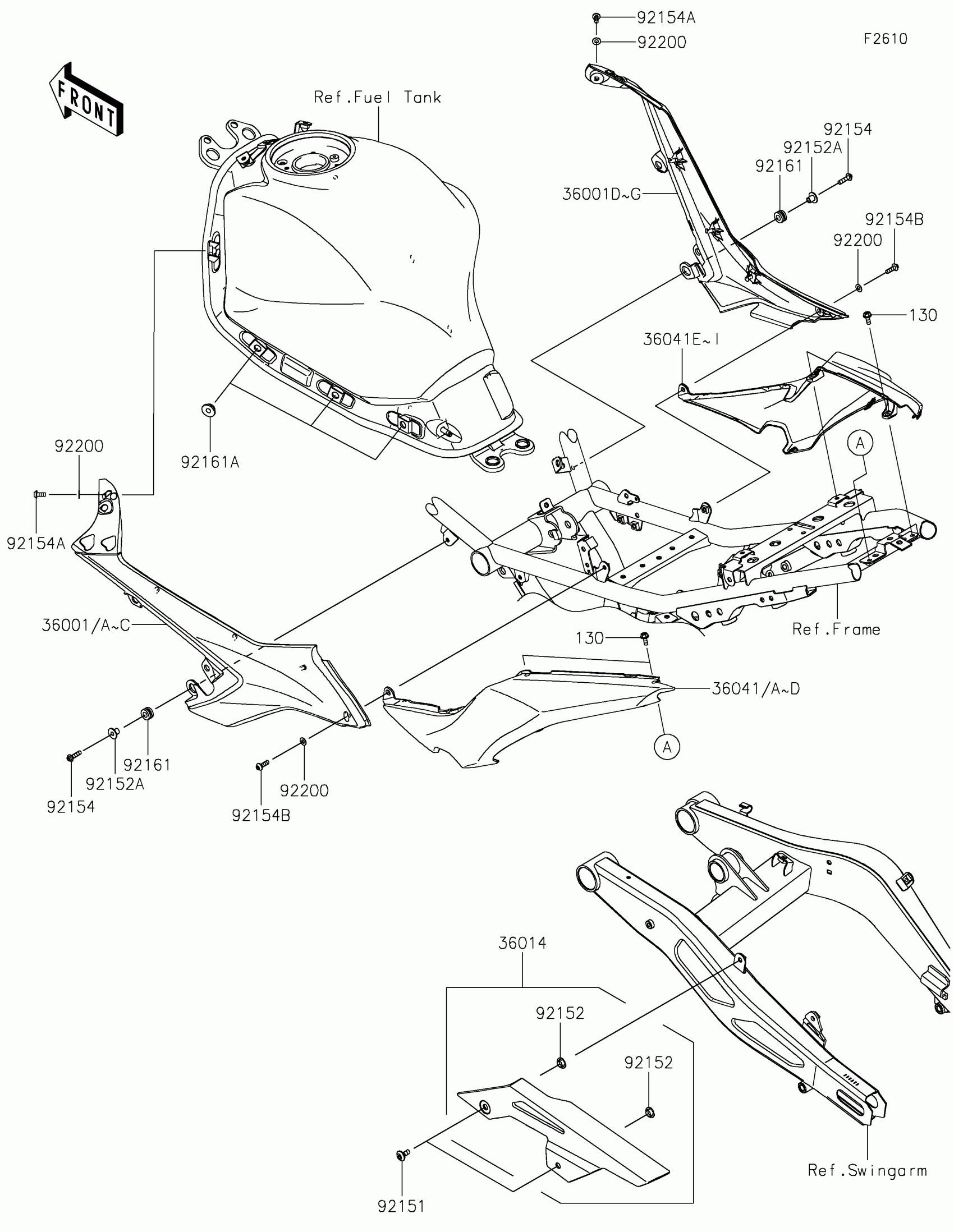

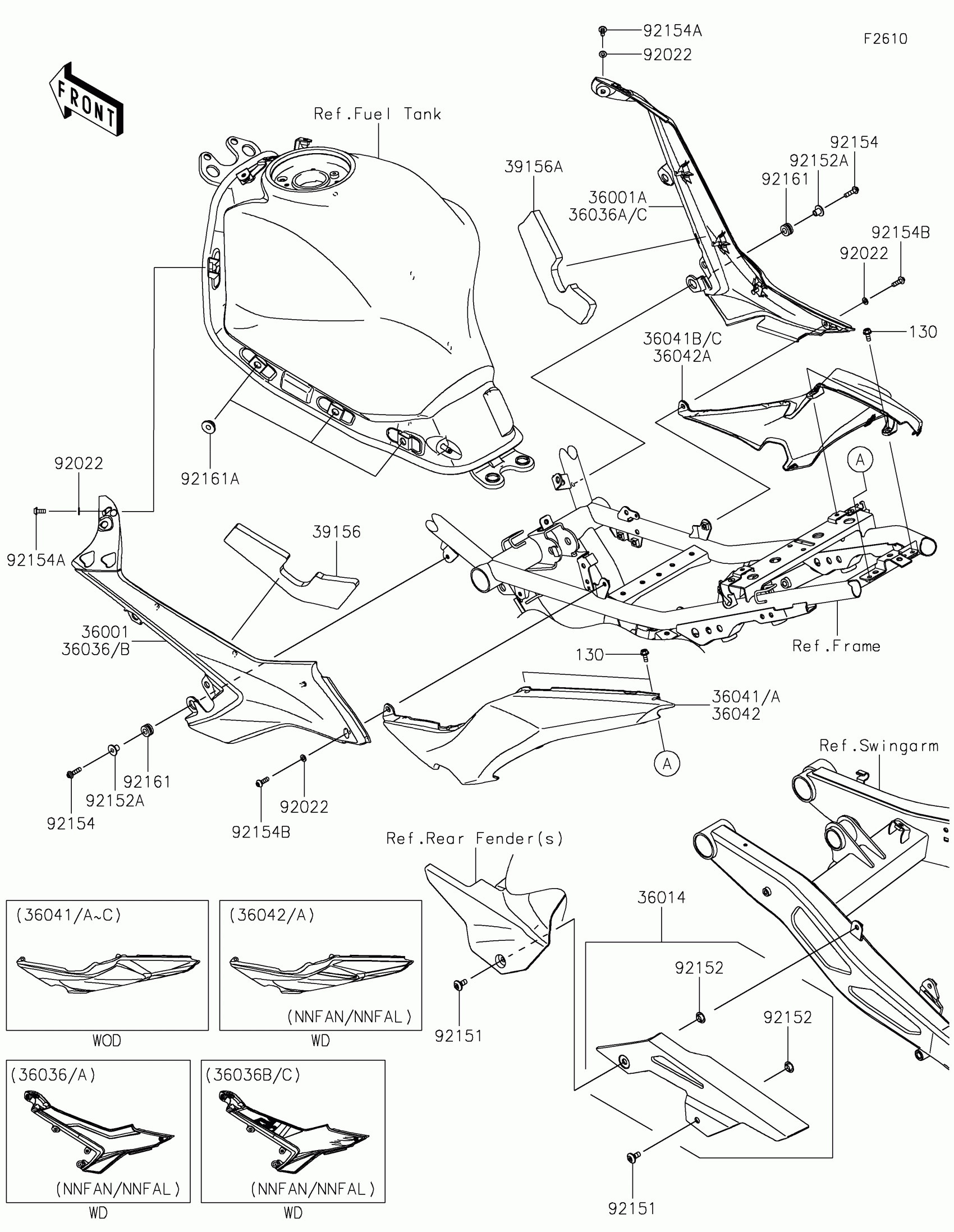

Kawasaki NINJA® 650 Side Covers/Chain Cover Diagram
