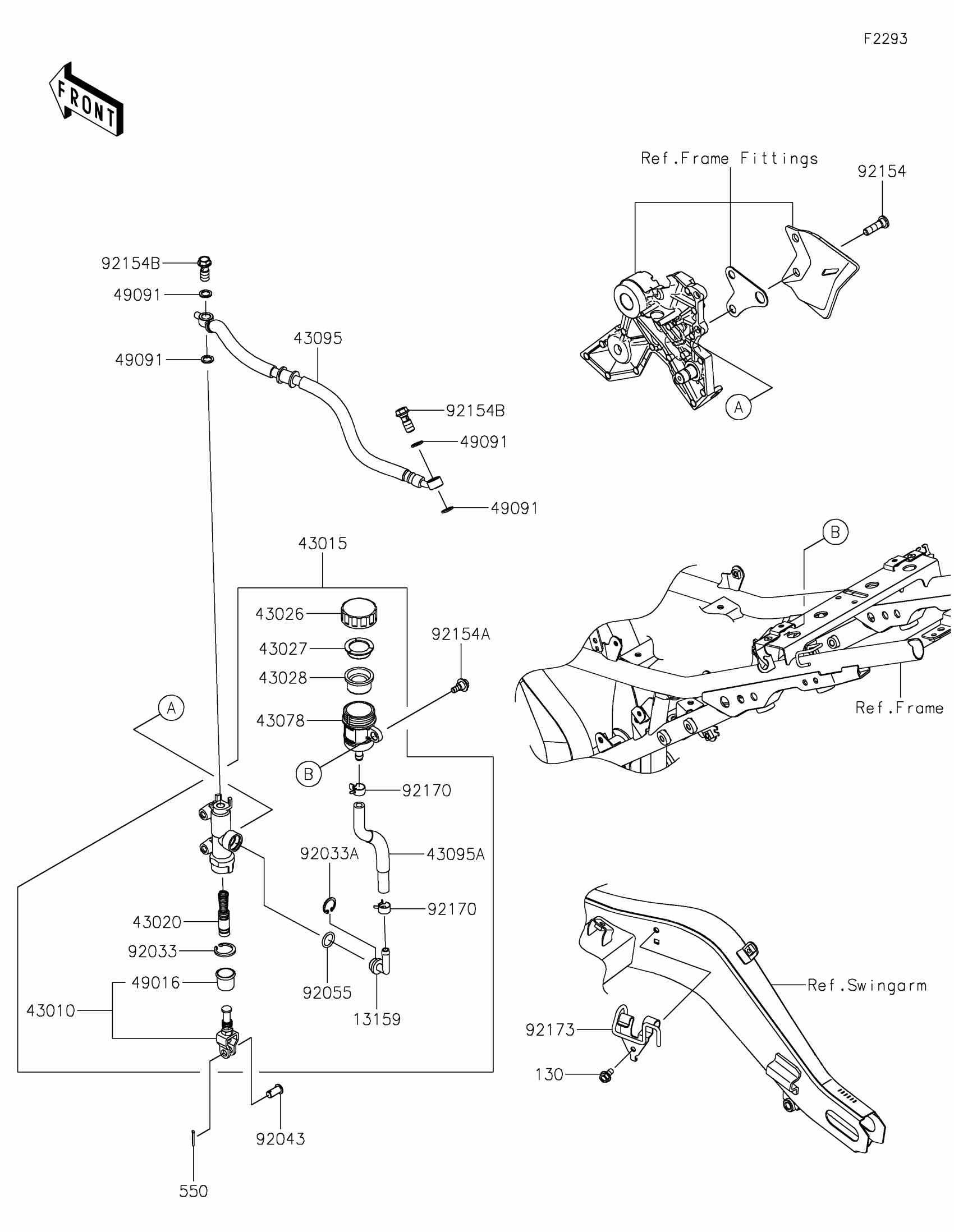

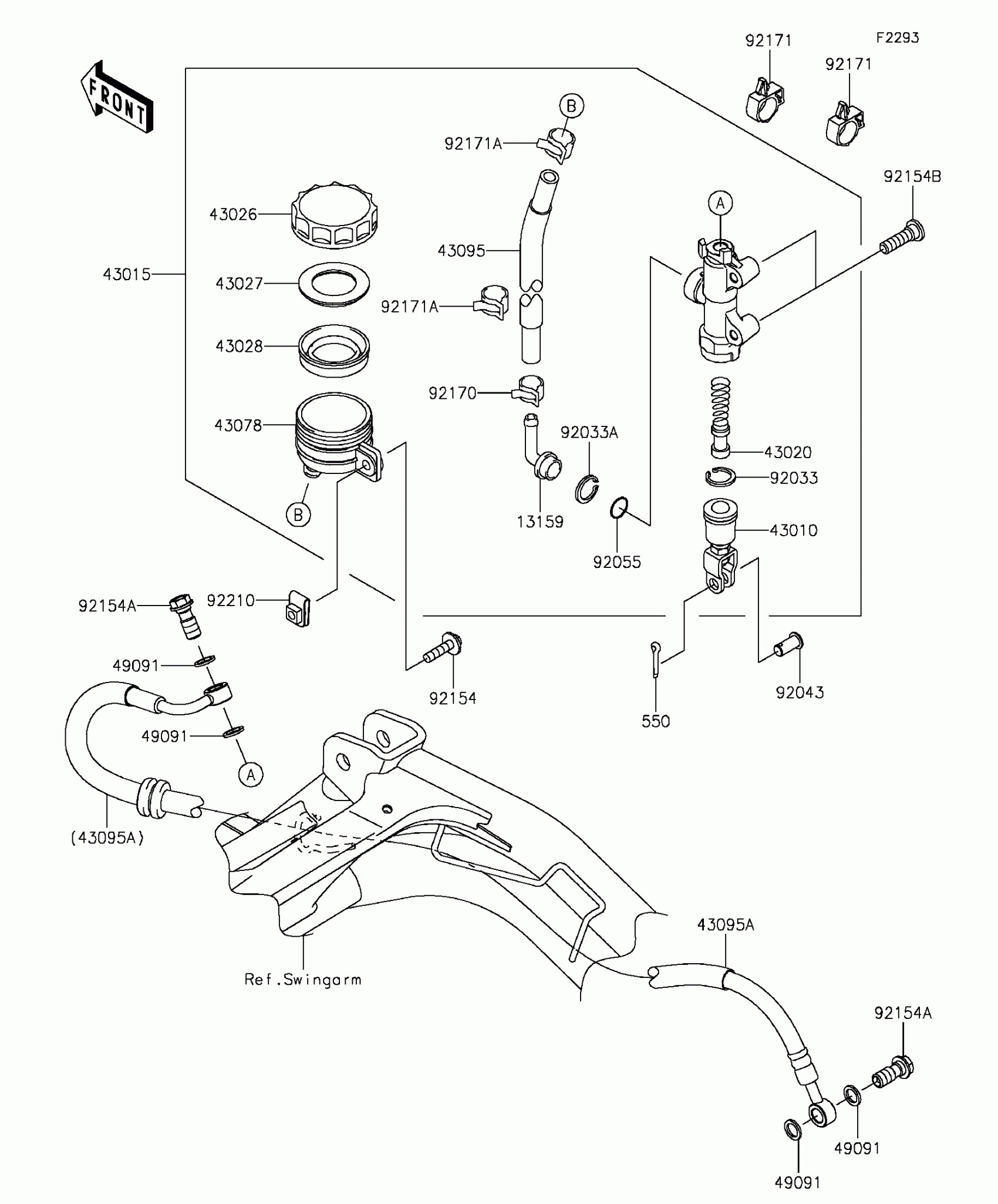

Kawasaki Ninja® 650 Rear Master Cylinder Diagram

#

Description
Price

13159

CONNECTOR

13159-1056

$14.10

43010

ROD-ASSY-BRAKE

43010-1062

$51.24

43015

CYLINDER-ASSY-MASTER,RR

43015-0559

$262.40

43020

PISTON-COMP-BRAKE

43020-1094

$65.22

43026

CAP-BRAKE

43026-1051

$34.20

43027

PLATE-DIAPHRAGM

43027-1051

$5.32

43028

DIAPHRAGM,MASTER CYLINDER

43028-1057

$19.09

43078

RESERVOIR,RR MASTER CYLINDER

43078-1082

$28.25

43095

HOSE-BRAKE,RR M/CYLINDER

43095-0628

$18.48

43095A

HOSE-BRAKE,RR,L=748

43095-0752

$74.64

49091

WASHER-SEAL,10.1X14.5X1.5

49091-0001

$2.15

92033

RING-SNAP,20.9X24.6X1.2

92033-0079

$7.78

92033A

RING-SNAP,20.5MM

92033-1186

$4.96

92043

PIN

92043-0182

$3.29

92055

RING-O,MASTER CYLINDER

92055-1251

Unavailable

92154

BOLT,6X25

92154-0467

$1.94

92154A

BOLT,FLANGED,10X23

92154-0732

$5.05

92154B

BOLT,SOCKET,8X30

92154-0843

$4.72

92170

CLAMP,HOSE

92170-1091

$5.00

92171

CLAMP,BRAKE HOSE

92171-0316

$3.88

92171A

CLAMP,HOSE

92171-0463

$6.38

92210

NUT,6MM

92210-0474

$5.54

550

PIN-COTTER,2.0X15

550AA2015

$1.12
