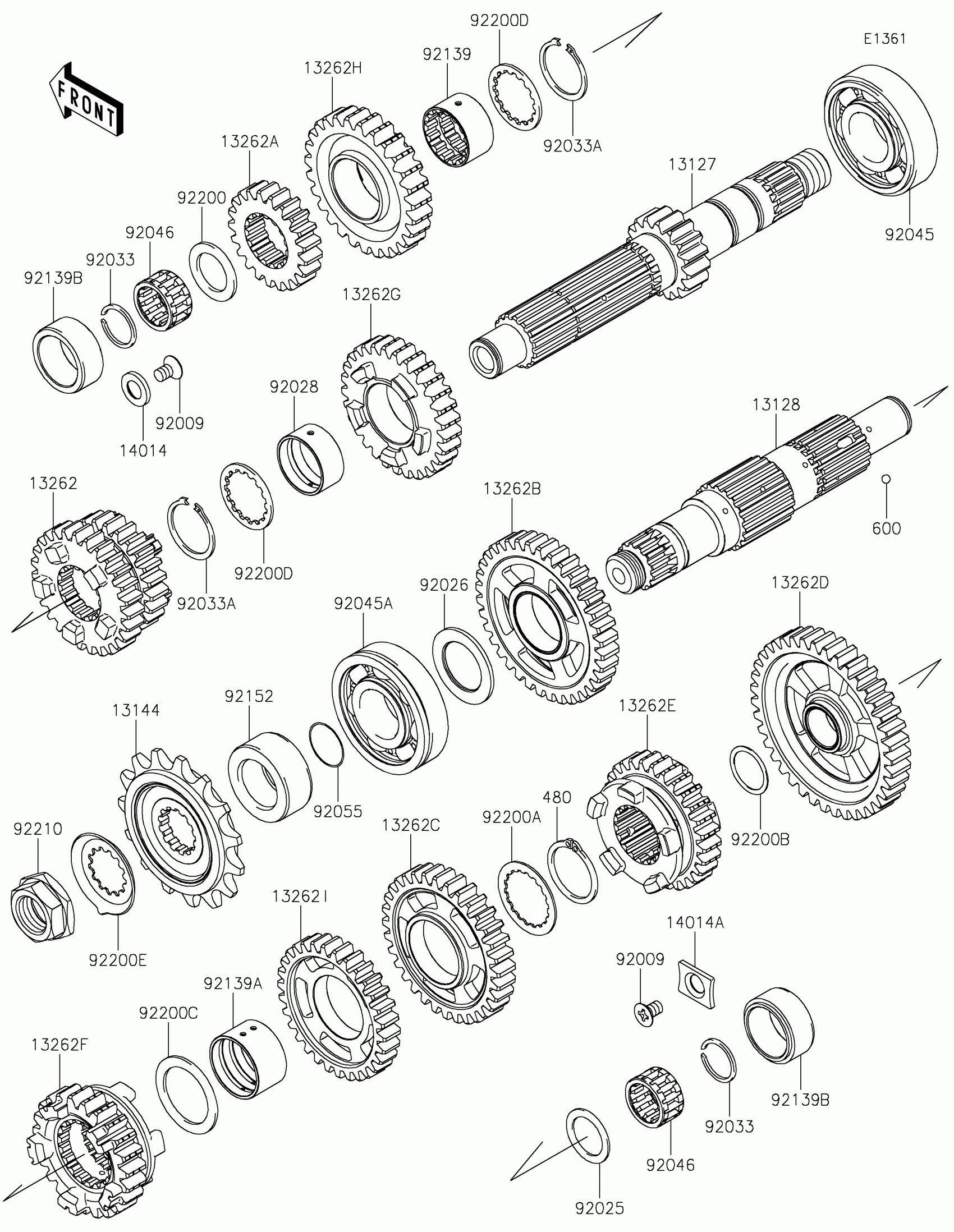

Kawasaki Ninja 650 KRT Edition Transmission Diagram

#

Description
Price

13127

SHAFT-TRANSMISSION INPUT,16T

13127-0666

$241.75

13128

SHAFT-TRANSMISSION OUTPUT

13128-0690

$186.74

13144

SPROCKET-OUTPUT,15T,#520

13144-0576

$38.84

13262

GEAR,INPUT 3RD&4TH,24T&27T

13262-0819

$122.20

13262A

GEAR,INPUT 2ND,21T

13262-0821

$47.23

13262B

GEAR,OUTPUT 2ND,36T

13262-0826

$113.03

13262C

GEAR,OUTPUT 3RD,32T

13262-0827

$113.03

13262D

GEAR,OUTPUT LOW,39T

13262-0828

$122.20

13262E

GEAR,OUTPUT 5TH,28T

13262-1229

$116.36

13262F

GEAR,OUTPUT 6TH,23T

13262-1230

$124.44

13262G

GEAR,INPUT 5TH,29T

13262-1275

$113.03

13262H

GEAR,INPUT 6TH,27T

13262-1276

$116.22

13262I

GEAR,OUTPUT 4TH,30T

13262-1580

$113.03

14014

PLATE-POSITION,9.5X17X2.3

14014-0019

$3.90

14014A

PLATE-POSITION,RH

14014-0020

$5.65

92009

SCREW,6X10

92009-1375

$3.92

92025

SHIM,20.3X28X1.1

92025-1455

$2.61

92026

SPACER,25.3X39X2.0

92026-0715

$11.77

92028

BUSHING,INPUT GEAR

92028-1449

$25.59

92033

RING-SNAP,20MM

92033-015

$4.26

92033A

RING-SNAP,25.9X30.6X1.2

92033-1037

$4.65

92045

BEARING-BALL,25X62X17

92045-0042

$36.26

92045A

BEARING-BALL,6305N2SH2

92045-1224

$36.90

92046

BEARING-NEEDLE,KMJ20X26X13.8X1

92046-1185

$18.61

92055

RING-O,21.5X1.5

92055-0196

$4.45

92139

BUSHING,25X28.3X16.7

92139-0107

$26.91

92139A

BUSHING,OUT 3RD&4TH GEAR

92139-0108

$20.83

92139B

BUSHING,26X34X16.2

92139-0713

$28.59

92152

COLLAR,25X40X17.2

92152-0972

$28.66

92200

WASHER,20.2X30X1.8

92200-0221

$3.90

92200A

WASHER,30.3X38X1.0

92200-0222

$4.92

92200B

WASHER,20.2X25.0X0.5

92200-0291

$2.15

92200C

WASHER,29.9X40X1.5

92200-0721

$13.18

92200D

WASHER,28.5X34.0X1.5

92200-1240

$10.28

92200E

WASHER

92200-1932

$4.60

92210

NUT,20MM

92210-0850

$14.39

480

CIRCLIP

480J2900

$6.22

600

BALL-STEEL,5/32

600A0500

$0.81
