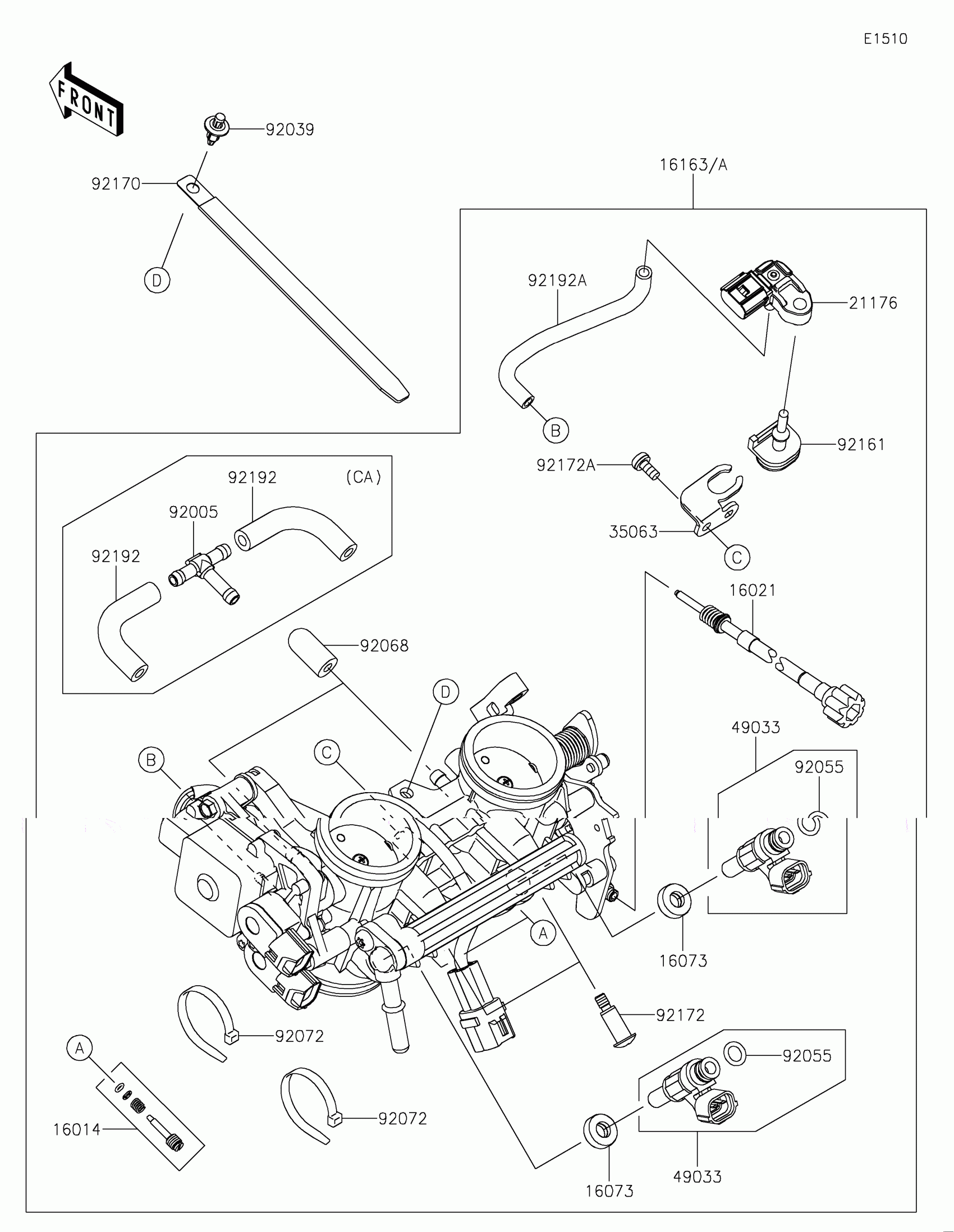

Kawasaki Ninja 650 KRT Edition Throttle Diagram

Description

Price

16014

SCREW-PILOT AIR

16014-0002

$25.16

16021

SCREW-THROTTLE STOP

16021-0034

$69.57

16073

INSULATOR

16073-0129

$6.00

16163

THROTTLE-ASSY

16163-1271

$1,017.52

21176

SENSOR,PRESSURE

21176-0906

$222.28

35063

STAY

35063-1528

$42.07

49033

NOZZLE-INJECTION

49033-0568

$92.32

92039

RIVET

92039-0707

$2.00

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.95

92068

PLUG,12X25

92068-006

$4.26

92072

BAND,SUB-HARNESS

92072-0012

$5.00

92161

DAMPER

92161-0673

$5.54

92170

CLAMP,L=150

92170-1114

$7.45

92172

SCREW,PIPE INJECTION

92172-0064

$2.80

92172A

SCREW

92172-0393

$7.60

92192A

TUBE

92192-2368

$21.63
