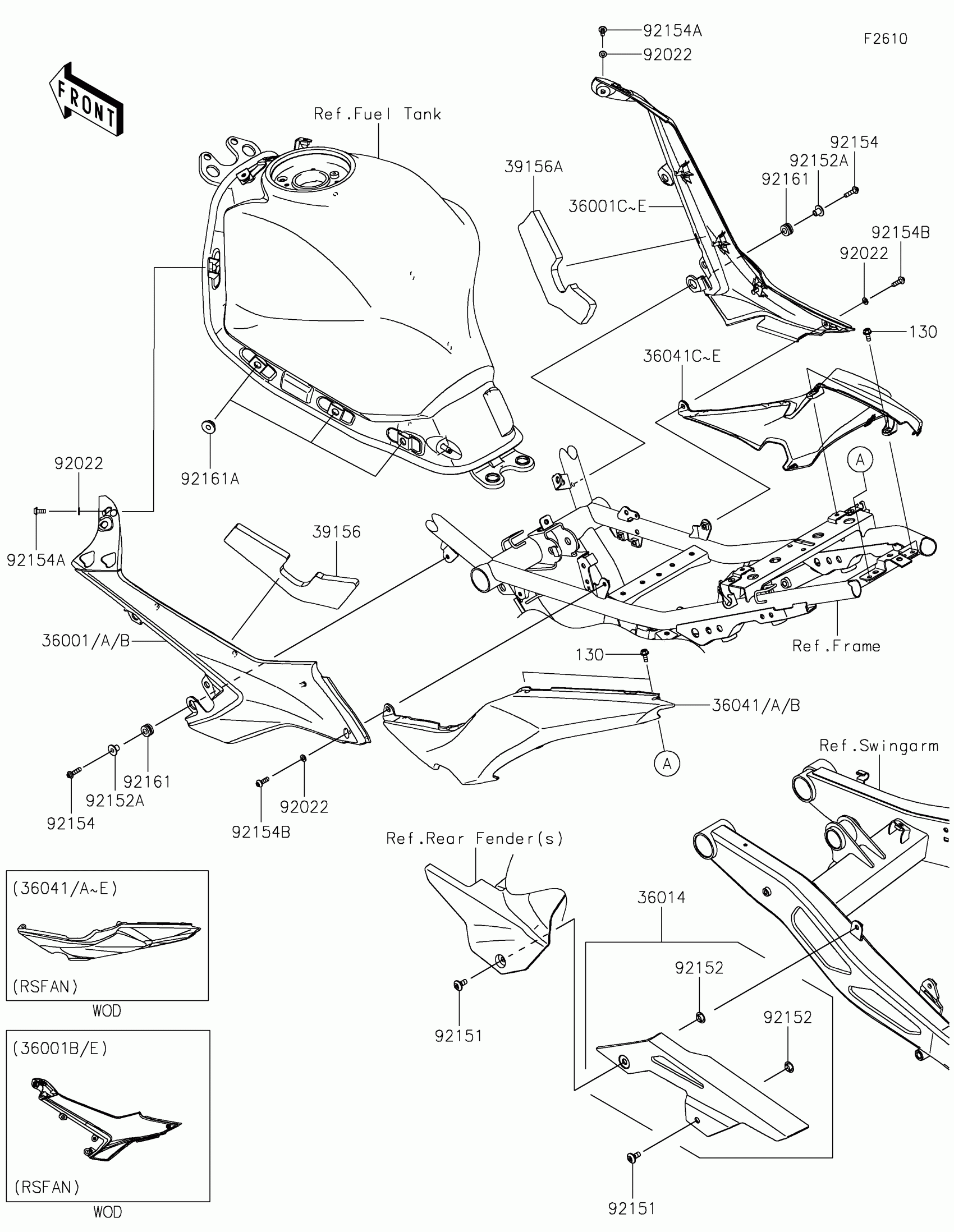

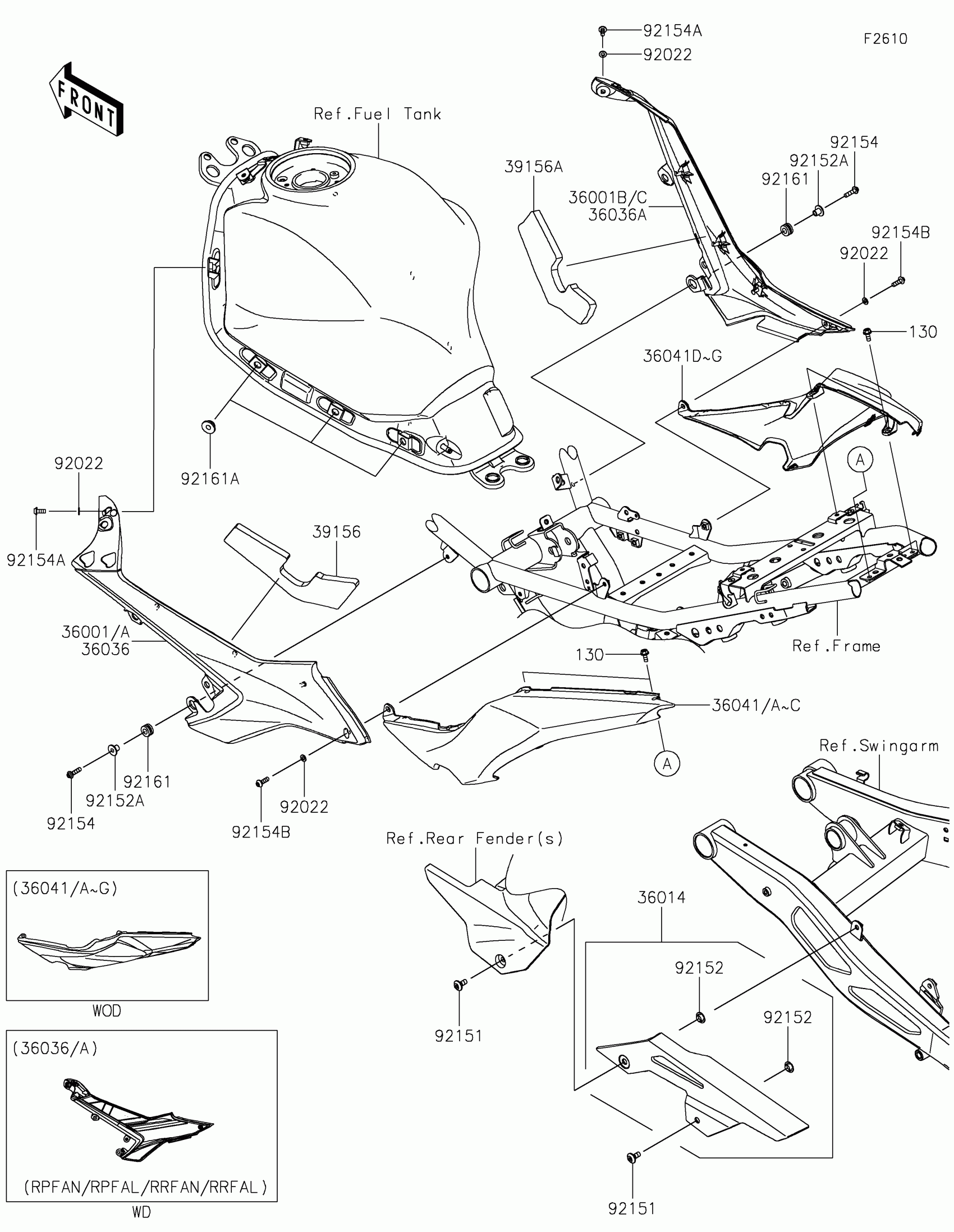

Kawasaki Ninja 650 KRT Edition Side Covers/Chain Cover Diagram

Description

Price

36001

COVER-SIDE,LH,M.S.BLACK

36001-0650-660

$28.66

36001A

COVER-SIDE,LH,M.F.S.BLACK

36001-0650-739

$28.66

36001B

COVER-SIDE,LH,L.GREEN

36001-0650-777

$67.46

36001C

COVER-SIDE,RH,M.S.BLACK

36001-0651-660

$28.66

36001D

COVER-SIDE,RH,M.F.S.BLACK

36001-0651-739

$28.66

36001E

COVER-SIDE,RH,L.GREEN

36001-0651-777

$67.46

36014

CASE-CHAIN

36014-0044

$17.48

36041

COVER-TAIL,LH,M.R.PURPLE

36041-0033-35Y

$69.49

36041A

COVER-TAIL,LH,M.S.BLACK

36041-0033-660

$75.55

36041B

COVER-TAIL,LH,L.GREEN

36041-0033-777

$75.55

36041C

COVER-TAIL,RH,M.R.PURPLE

36041-0034-35Y

$72.79

36041D

COVER-TAIL,RH,M.S.BLACK

36041-0034-660

$75.55

36041E

COVER-TAIL,RH,L.GREEN

36041-0034-777

$75.55

39156

PAD,COVER-SIDE,LH

39156-2617

$41.75

39156A

PAD,COVER-SIDE,RH

39156-2618

$41.75

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92152

COLLAR,8.8X11.2X4

92152-0909

$5.65

92152A

COLLAR

92152-1592

$3.02

92154

BOLT,SOCKET,5X20

92154-0210

$2.12

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92154B

BOLT,SOCKET,5X16

92154-1701

$1.19

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER,6X20X7.5

92161-1937

$1.94

130

BOLT-FLANGED,5X12

130BA0512

$2.22
