2024 Kawasaki Ninja 650 KRT Edition Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 2024 Kawasaki Ninja 650 KRT Edition, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

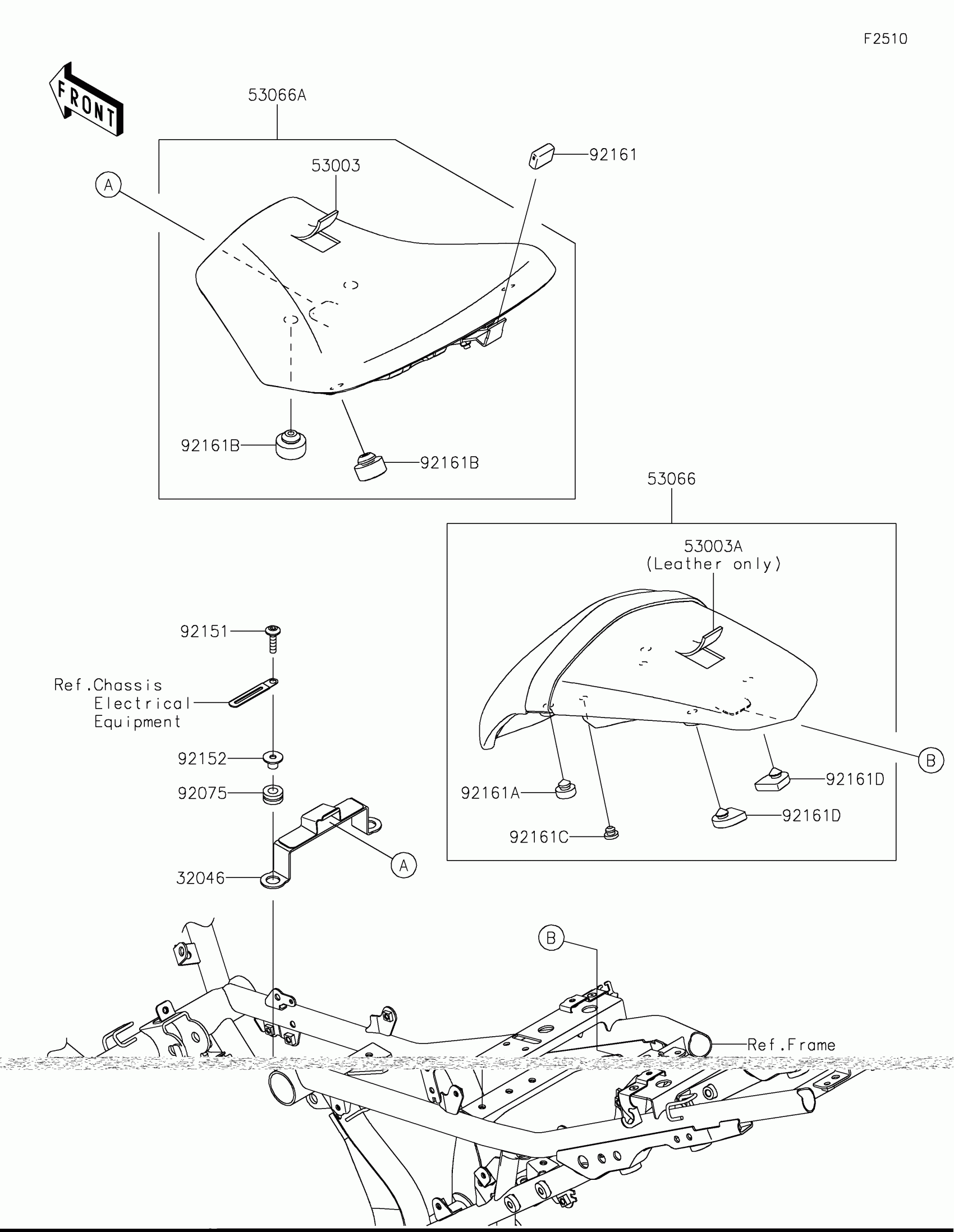

2024 Kawasaki Ninja 650 KRT Edition Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

32046

BRACKET-SEAT

32046-0394

1

$13.41

In stock

53003

LEATHER,FR SEAT,BLACK

53003-0443-MA

1

$96.95

In stock

53003A

LEATHER,RR,BLACK

53003-0505-MA

1

$85.98

In stock

53066

SEAT-ASSY,RR,BLACK+BLK

53066-0662-12Y

1

$193.43

In stock

53066A

SEAT-ASSY,FR,BLACK

53066-0690-MA

1

$211.60

In stock

92075

DAMPER

92075-1880

1

$1.44

In stock

92151

BOLT,SOCKET,6X25

92151-1611

1

$1.95

In stock

92152

COLLAR,6.5X10X11.6

92152-2326

1
Out of stock

92161

1

$2.20

In stock

92161A

DAMPER,10X20X8

92161-1898

1

$3.39

In stock

92161B

DAMPER,14X30X14.5

92161-1970

1

$7.32

In stock

92161C

DAMPER

92161-1971

1

$2.19

In stock

92161D

DAMPER

92161-2259

1

$3.49

In stock
