Partiron

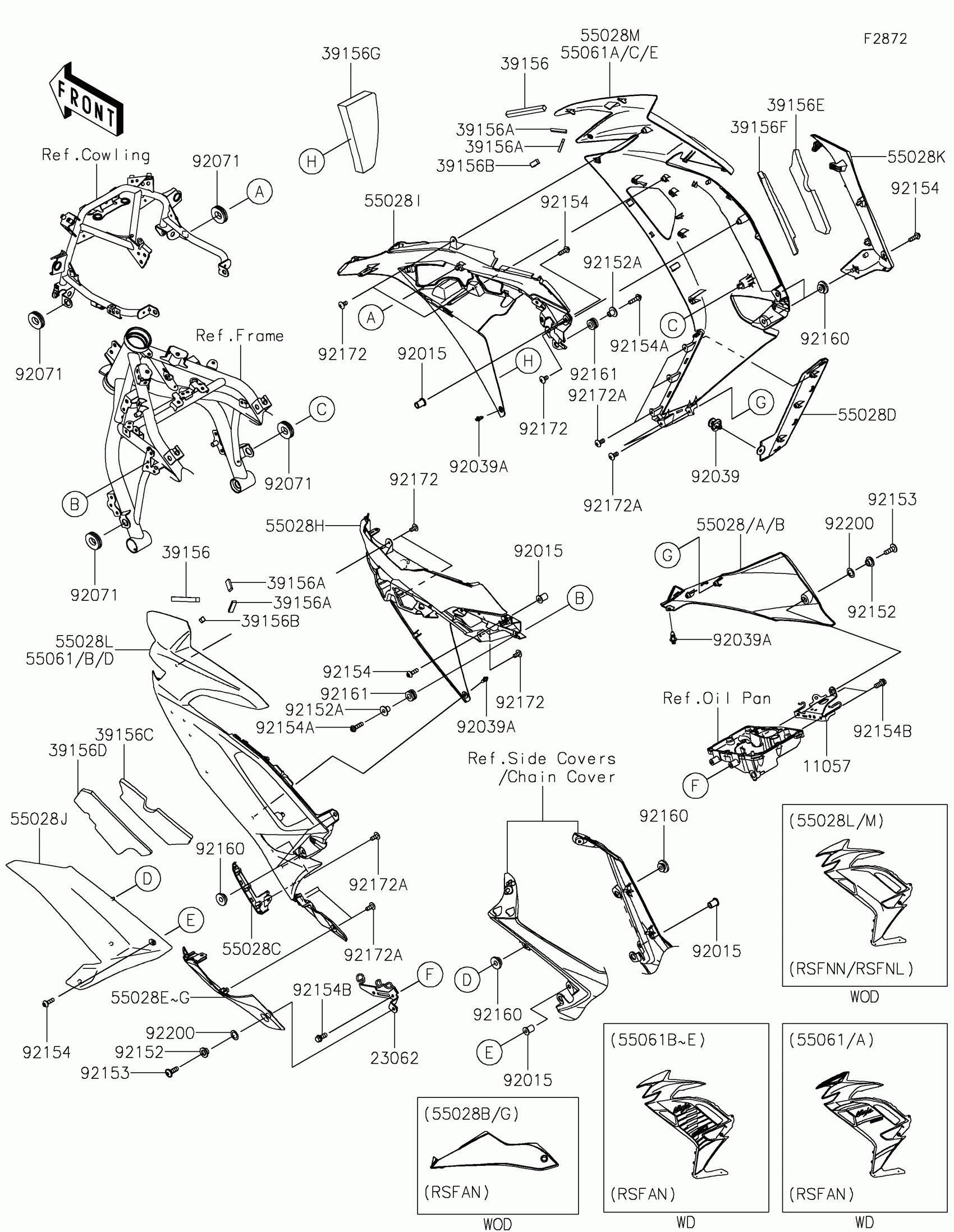

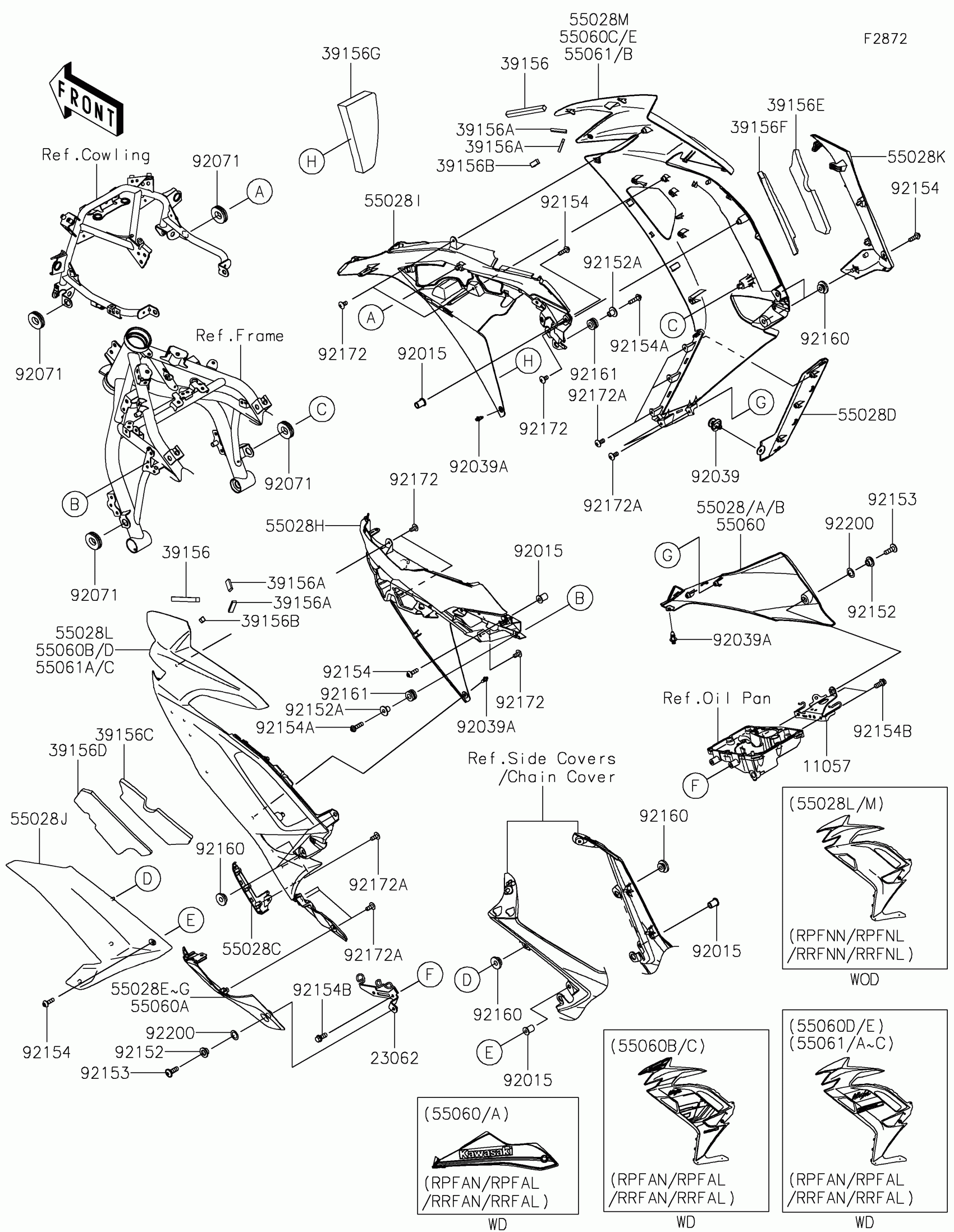

Kawasaki Ninja 650 KRT Edition Cowling Lowers Diagram

#

Description
Price

11057

BRACKET,LWR COWL.,RH

11057-0133

$13.64

23062

BRACKET-COMP,LWR,LH

23062-1247

$15.80

39156

PAD,120X10X10

39156-2502

$2.27

39156A

PAD,37X10X5

39156-2504

$1.13

39156B

PAD,20X10X8

39156-2581

$0.81

39156C

PAD,SIDE COWL.,RR,LH,UPP

39156-2621

$13.78

39156D

PAD,SIDE COWL.,RR,LH,LWR

39156-2622

$8.81

39156E

PAD,SIDE COWL.,RR,RH,UPP

39156-2623

$13.78

39156F

PAD,SIDE COWL.,RR,RH,LWR

39156-2624

$11.10

39156G

PAD

39156-2814

$13.61

55028

COWLING,LWR,RH,M.M.C.GREEN

55028-0599-36T

$141.24

55028A

COWLING,LWR,RH,M.M.D.GRAY

55028-0599-69P

$141.24

55028B

COWLING,LWR,RH,EBONY

55028-0599-H8

$97.96

55028C

COWLING,LWR,FR,LH

55028-0600

$9.39

55028D

COWLING,LWR,FR,RH

55028-0601

$9.39

55028E

COWLING,LWR,LH,M.M.C.GREEN

55028-0634-36T

$97.96

55028F

COWLING,LWR,LH,M.M.D.GRAY

55028-0634-69P

$97.96

55028G

COWLING,LWR,LH,EBONY

55028-0634-H8

$97.96

55028H

COWLING,SIDE,CNT,LH

55028-0717

$89.68

55028I

COWLING,SIDE,CNT,RH

55028-0718

$89.41

55028J

COWLING,SIDE,RR,LH

55028-0797

$40.00

55028K

COWLING,SIDE,RR,RH

55028-0798

$45.69

55028L

COWLING,SIDE,LH,M.M.G.GRAY

55028-0828-68P

$312.82

55028M

COWLING,SIDE,RH,M.M.G.GRAY

55028-0829-68P

$305.84

55060

COWLING,LWR,RH,L.GREEN

55060-5264-777

$221.33

55060A

COWLING,LWR,LH,L.GREEN

55060-5265-777

$230.55

55060B

COWLING,SIDE,LH,EBONY

55060-5266-H8

$592.56

55060C

COWLING,SIDE,RH,EBONY

55060-5267-H8

$592.56

55061

COWLING,SIDE,RH,M.M.C.GRN+BLK

55061-5107-63X

$573.56

55061A

COWLING,SIDE,LH,M.M.C.GRN+BLK

55061-5109-63X

$585.21

55061B

COWLING,SIDE,RH,M.S.BLACK+GRY

55061-5112-69V

$573.56

55061C

COWLING,SIDE,LH,M.S.BLACK+GRY

55061-5113-69V

$585.21

92015

NUT,WELL,5MM

92015-1757

$5.58

92039

RIVET,HOLE 8MM

92039-0014

$2.28

92039A

RIVET

92039-0709

$1.89

92071

GROMMET

92071-1043

$3.91

92152

COLLAR

92152-1359

$5.84

92152A

COLLAR

92152-1592

$2.11

92153

BOLT,6X18

92153-0478

$1.81

92154

BOLT,SOCKET,5X16

92154-0209

$1.95

92154A

BOLT,SOCKET,5X20

92154-0210

$1.54

92154B

BOLT,FLANGED,6X14

92154-1426

$1.46

92160

DAMPER

92160-1613

$2.84

92161

DAMPER,8X16X8.6

92161-0685

$4.96

92172

SCREW,TAPPING,5X10

92172-0262

$1.04

92172A

SCREW,5X12

92172-0821

$0.73

92200

WASHER,10.4X15.9X0.5

92200-0157

$1.57
