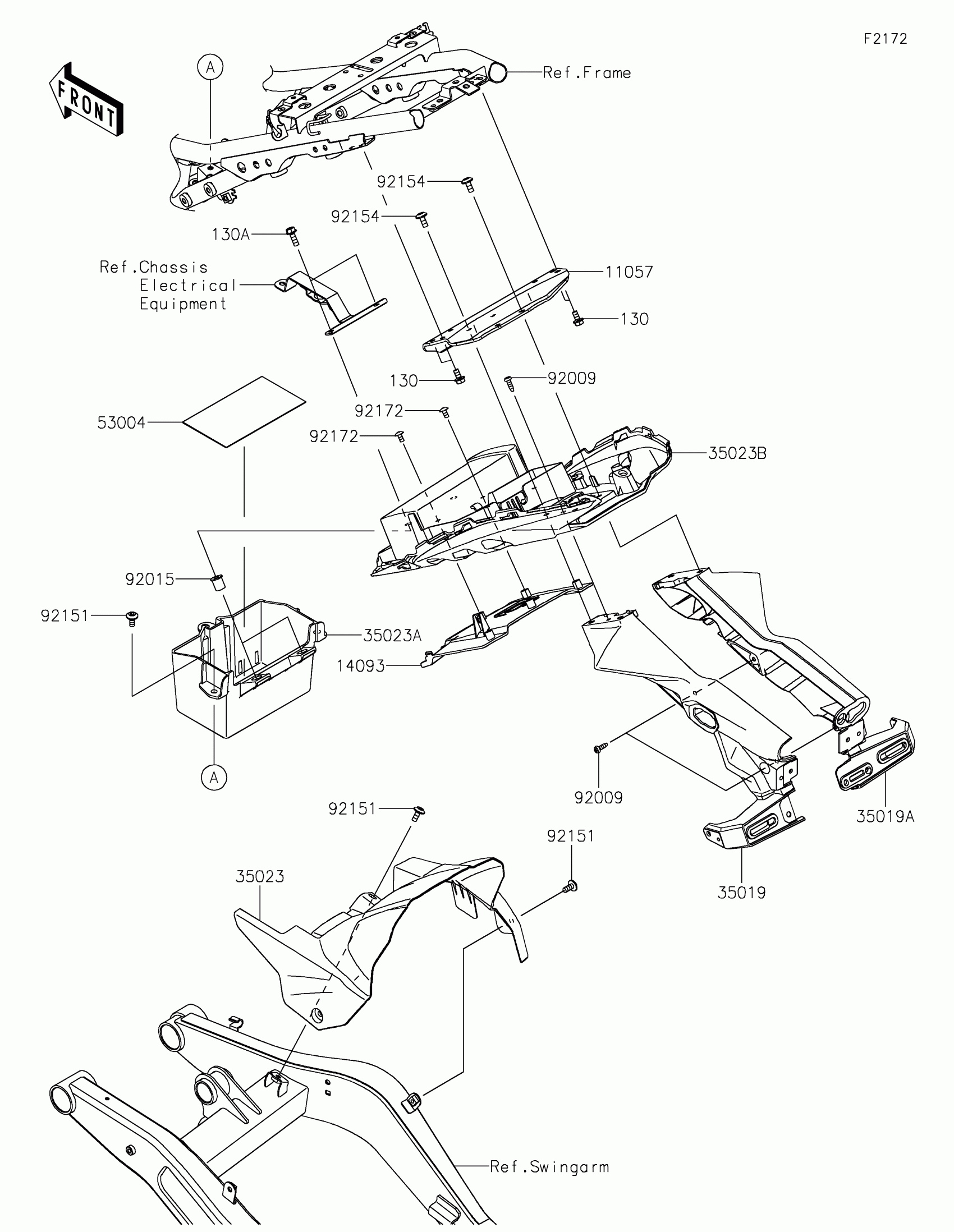

Kawasaki Ninja 650 KRT Edition Rear Fender(s) Diagram

Description

Price

11057

BRACKET,FLAP

11057-0757

$40.66

14093

COVER

14093-0482

$17.14

35019

FLAP,LH

35019-0671

$32.12

35019A

FLAP,RH

35019-0672

$35.12

35023

FENDER-REAR

35023-0417

$27.16

35023A

FENDER-REAR,FR

35023-0418

$33.38

35023B

FENDER-REAR,RR

35023-0419

Unavailable

53004

MAT,BATTERY

53004-0560

$9.09

92009

SCREW,TAPPING,5X16

92009-1984

$2.58

92015

NUT

92015-1700

$8.58

92151

BOLT,SOCKET,6X14

92151-1654

$1.83

92154

BOLT,SOCKET,6X14

92154-0745

$2.32

92172

SCREW,5X10

92172-0864

$1.34

130

BOLT-FLANGED,6X12

130BA0612

$1.72

130A

BOLT-FLANGED,6X18

130BA0618

$1.54
