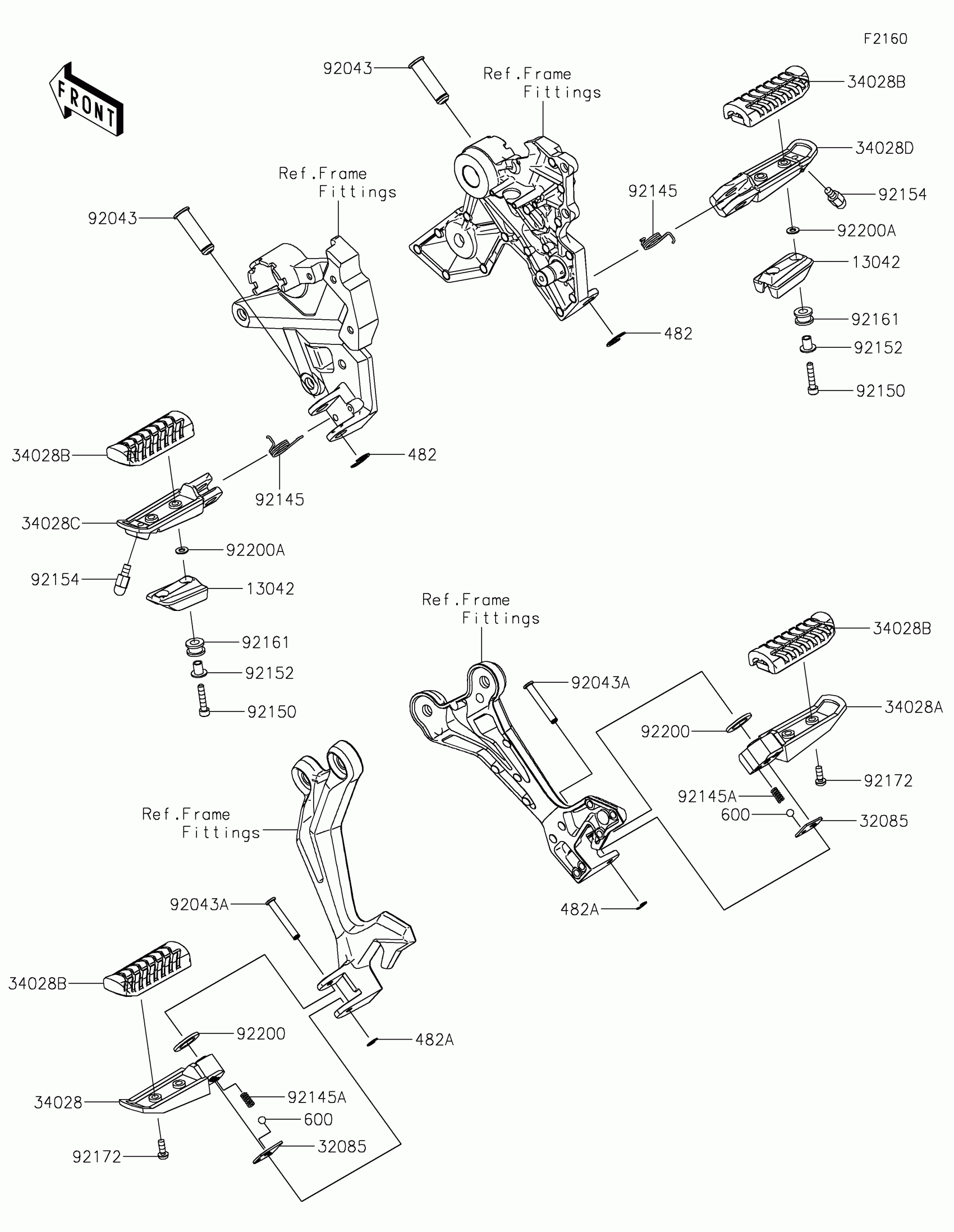

Kawasaki Ninja 650 KRT Edition Footrests Diagram

Description

Price

13042

WEIGHT,STEP

13042-0759

$40.04

32085

STOPPER

32085-0801

$0.90

34028

STEP,RR,LH

34028-0314

$45.71

34028A

STEP,RR,RH

34028-0315

$45.71

34028B

STEP,RUBBER

34028-0349

$22.74

34028C

STEP,FR,LH

34028-0350

$36.60

34028D

STEP,FR,RH

34028-0351

$36.60

92043

PIN,12X37.5

92043-0026

$5.57

92043A

PIN,6X40

92043-0200

$3.02

92140

BALL,6.35MM

92140-0008

Unavailable

92145

SPRING,STEP RETURN

92145-0723

$3.67

92145A

SPRING

92145-1319

$1.81

92150

BOLT,SOCKET,5X25

92150-1684

$3.98

92152

COLLAR

92152-2596

$2.58

92154

BOLT,BANK SENSOR

92154-0838

$5.33

92161

DAMPER,8X16X10

92161-1935

$0.90

92172

SCREW-PAN-WP-CROS,5X14

92172-0473

$2.32

92200

WASHER,16X26X2.3

92200-0772

$3.74

92200A

WASHER,5.3X11X1

92200-0973

$0.95

482

CIRCLIP-TYPE-E,10MM

482EA0100

$1.04

482A

CIRCLIP-TYPE-E

482EA5000

$1.34
