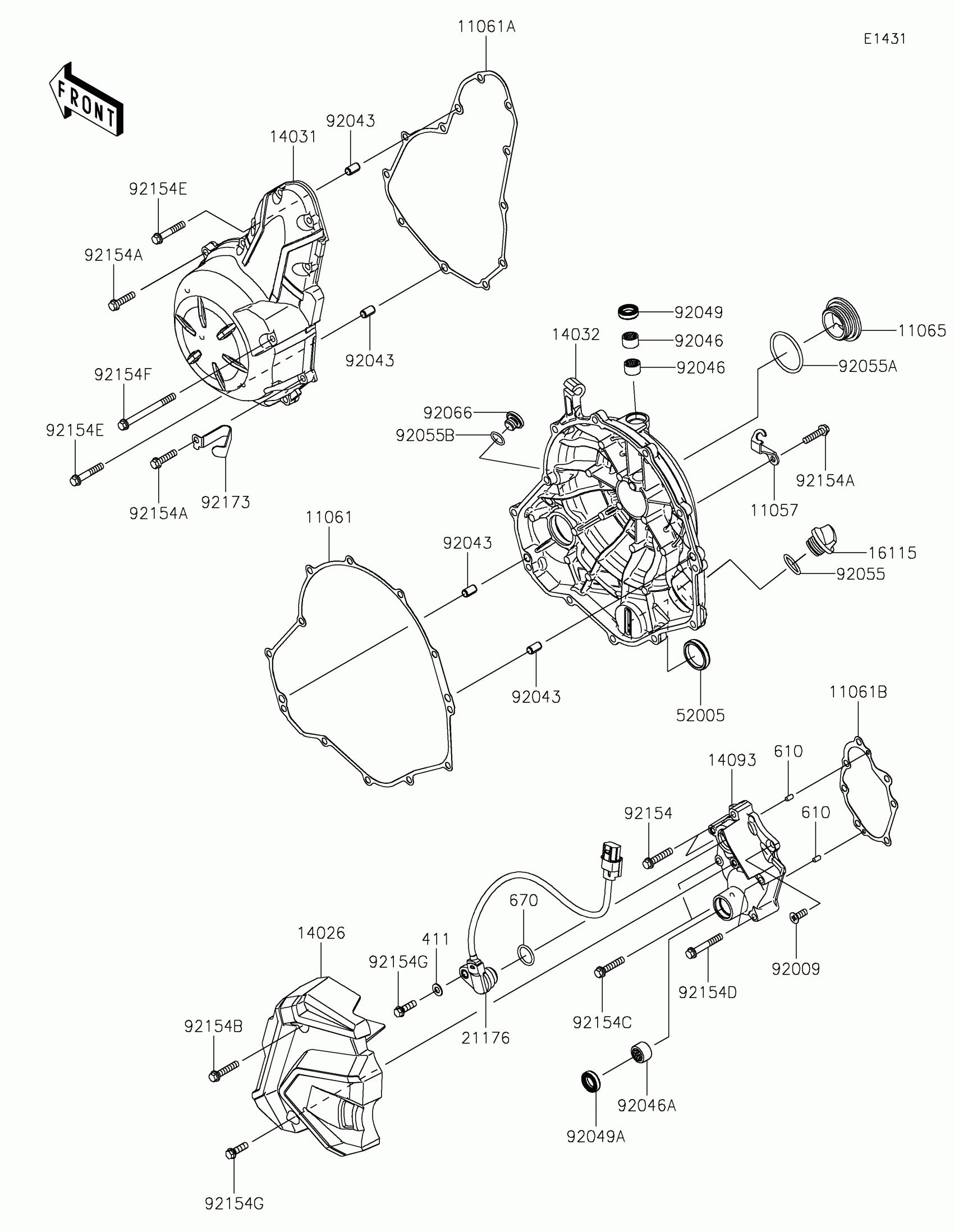

Kawasaki Ninja 650 KRT Edition Engine Cover(s) Diagram

#

Description
Price

11057

BRACKET

11057-0482

$2.17

11061

GASKET,CLUTCH COVER

11061-0164

$21.49

11061A

GASKET,GENERATOR COVER

11061-0165

$12.86

11061B

GASKET,TRANSMISSION COVER

11061-0166

$6.68

11065

CAP

11065-1325

$35.87

14026

COVER-CHAIN

14026-0128

$70.48

14031

COVER-GENERATOR

14031-0609

$121.53

14032

COVER-CLUTCH

14032-0629

$189.25

14093

COVER,TRANSMISSION

14093-0463

$74.68

16115

CAP-OIL FILLER

16115-1053

$12.20

21176

SENSOR,GEAR POSITION

21176-0820

$151.78

52005

GAUGE,OIL LEVEL

52005-0071

$25.24

92009

SCREW,6X16

92009-1360

$4.31

92043

PIN,6.2X8X14

92043-1263

$0.43

92046

BEARING-NEEDLE,HK1210FM

92046-0034

$15.63

92046A

BEARING-NEEDLE,HK1312

92046-1148

$18.74

92049

SEAL-OIL,CLUTCH RELEASE

92049-1475

$4.18

92049A

SEAL-OIL,TC13225.5

92049-1519

$13.55

92055

RING-O,19.8MM

92055-0844

Unavailable

92055A

RING-O,39.4MM

92055-0849

Unavailable

92055B

RING-O,13.0X1.9

92055-1011

$7.62

92066

PLUG,12X9.1

92066-0937

$16.67

92154

BOLT,FLANGED,6X30

92154-0727

$3.02

92154A

BOLT,FLANGED,6X25

92154-0819

$2.32

92154B

BOLT,FLANGED,6X30

92154-1772

$1.19

92154C

BOLT,FLANGED,6X30

92154-1773

$1.19

92154D

BOLT,FLANGED,6X40

92154-1774

$1.48

92154E

BOLT,FLANGED,6X35

92154-1779

$1.71

92154F

BOLT,FLANGED,6X70

92154-1780

$2.26

92154G

BOLT,FLANGED,6X20

92154-2130

$1.17

92173

CLAMP

92173-1689

$2.95

411

WASHER-PLAIN,6MM

411AA0600

$2.92

610

ROLLER,4X8

610A0408

$4.31

670

O RING,18MM

670D2018

$1.91
