Description

Price

11056

BRACKET,CAP COVER

11056-4313

$1.19

14092

COVER,DC SOCKET

14092-0214

$6.57

39137

STAY-COMP

39137-0697

$202.63

39154

WINDSHIELD

39154-0385

$149.25

39156

PAD,28X17X1

39156-2583

$0.68

39156A

PAD,25X10X3

39156-2586

$0.95

39156B

PAD,260X15X15

39156-2614

$7.38

55028

COWLING,UPP,CNT,M.M.C.GREEN

55028-0713-36T

$111.39

55028B

COWLING,UPP,CNT,M.M.D.GRAY

55028-0713-69P

$111.39

55028C

COWLING,UPP,CNT,L.GREEN

55028-0713-777

$111.40

55028D

COWLING,UPP,CNT,EBONY

55028-0713-H8

$111.39

55028E

COWLING,UPP

55028-0714

$43.73

55028F

COWLING,INNER

55028-0721

$123.75

55028G

COWLING,FR

55028-0722

$43.22

56001

MIRROR-ASSY,LH

56001-0378

$105.96

56001A

MIRROR-ASSY,RH

56001-0379

$105.96

92009

SCREW,TAPPING,4X8

92009-1155

$2.97

92015

NUT,WELL,5MM

92015-1757

$7.29

92022

WASHER,5.1X10X1.0

92022-1977

$3.65

92039

RIVET

92039-0709

$2.67

92075

DAMPER,6X10X15

92075-1808

$1.39

92150

BOLT,SOCKET,6X18

92150-1553

$6.22

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,8X18

92154-2656

$4.60

92160

DAMPER,10X20X12

92160-1167

$4.69

92161

DAMPER,12X23

92161-1367

$1.19

92161A

DAMPER

92161-1467

$1.97

92210

NUT,FLANGED,8MM

92210-0304

$3.39

130

BOLT-FLANGED,5X16

130BA0516

$0.86

130A

BOLT-FLANGED,8X14

130BA0814

$2.16

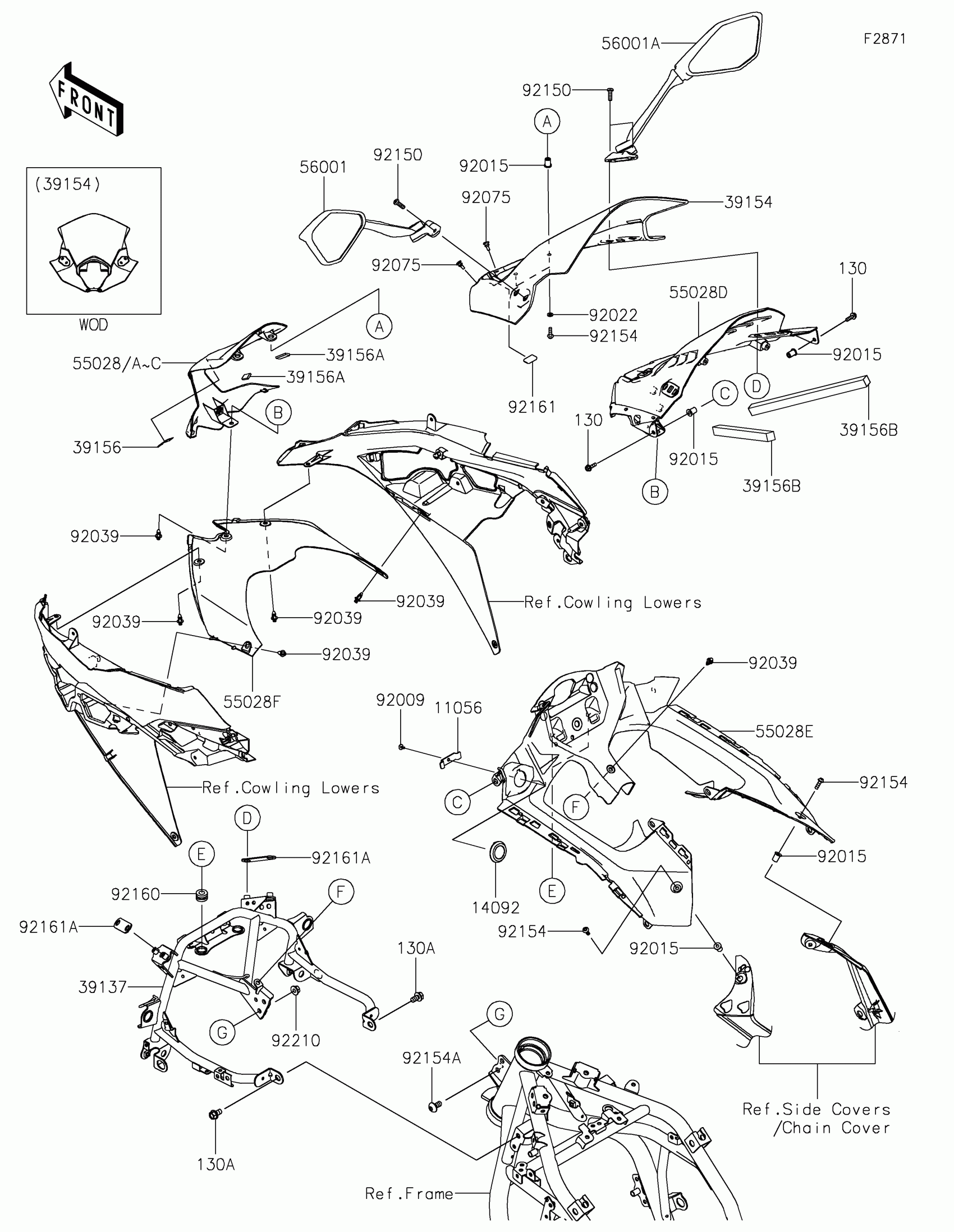

Kawasaki Ninja 650 KRT Edition Cowling Diagram

BRACKET,CAP COVER

COVER,DC SOCKET

STAY-COMP

WINDSHIELD

PAD,28X17X1

PAD,25X10X3

PAD,260X15X15

COWLING,UPP,CNT,M.M.C.GREEN

COWLING,UPP,CNT,M.M.D.GRAY

COWLING,UPP,CNT,L.GREEN

COWLING,UPP,CNT,EBONY

COWLING,UPP

COWLING,INNER

COWLING,FR

MIRROR-ASSY,LH

MIRROR-ASSY,RH

SCREW,TAPPING,4X8

NUT,WELL,5MM

WASHER,5.1X10X1.0

RIVET

DAMPER,6X10X15

BOLT,SOCKET,6X18

BOLT,SOCKET,5X16

BOLT,SOCKET,8X18

DAMPER,10X20X12

DAMPER,12X23

DAMPER

NUT,FLANGED,8MM

BOLT-FLANGED,5X16

BOLT-FLANGED,8X14
