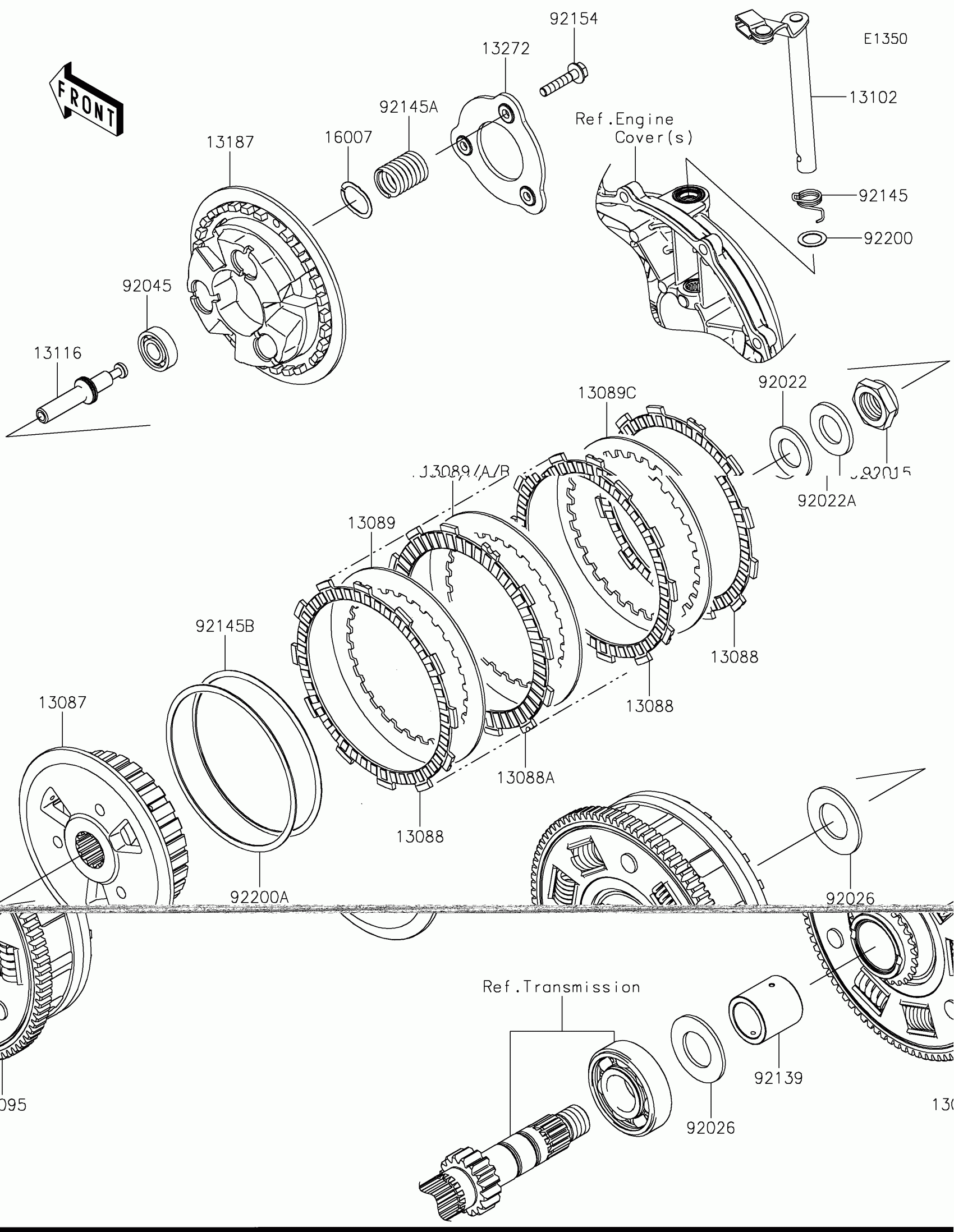

Kawasaki Ninja 650 KRT Edition Clutch Diagram

#

Description
Price

13087

HUB-CLUTCH

13087-0581

$144.95

13088

PLATE-FRICTION

13088-0557

$15.93

13088A

PLATE-FRICTION

13088-0566

$21.14

13089

PLATE-CLUTCH,T=2.0

13089-0021

$11.80

13089A

PLATE-CLUTCH,T=1.6

13089-0038

Unavailable

13089B

PLATE-CLUTCH,T=2.3

13089-0039

Unavailable

13089C

PLATE-CLUTCH

13089-0558

$11.86

13095

HOUSING-COMP-CLUTCH

13095-0585

$579.63

13102

RELEASE-COMP-CLUTCH

13102-0070

$45.06

13116

ROD-PUSH

13116-0734

$22.01

13187

PLATE-CLUTCH OPERATING

13187-0029

$106.94

13272

PLATE

13272-1303

$19.32

16007

SEAT-SPRING

16007-0736

$10.90

92015

NUT,20MM

92015-1555

$13.08

92022

WASHER,20.3X36X2.3

92022-1116

$8.58

92022A

WASHER,20.3X36X3.7

92022-1868

$9.51

92026

SPACER,25.5X47X2.5

92026-0716

$11.16

92045

BEARING-BALL,6001C3ML01

92045-1235

$16.25

92139

BUSHING

92139-0710

$29.82

92145

SPRING,CLUTCH RELEASE

92145-0897

Unavailable

92145A

SPRING

92145-1732

$9.34

92145B

SPRING

92145-1765

$10.39

92154

BOLT,UPSET,6X30

92154-0997

$3.35

92200

WASHER,12X18.5X0.5

92200-1487

$2.75

92200A

WASHER,T=1.0

92200-1579

$10.49
