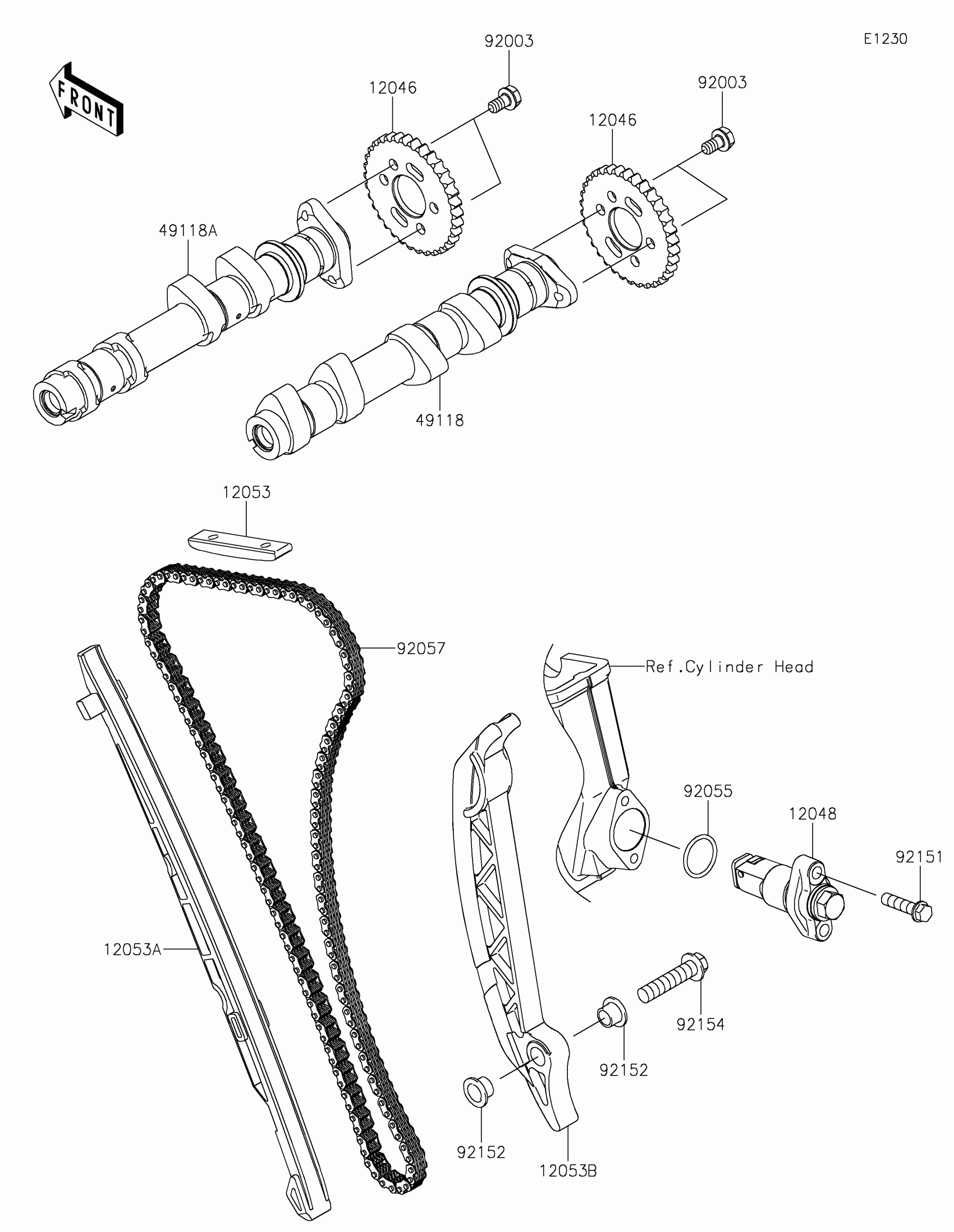

Kawasaki Ninja 650 KRT Edition Camshaft(s)/Tensioner Diagram

Description

Price

12046

SPROCKET,CAM,34T

12046-0041

$36.70

12048

TENSIONER-ASSY

12048-0102

$95.43

12053

GUIDE-CHAIN,UPP

12053-0051

$23.95

12053A

GUIDE-CHAIN,FR

12053-0059

$66.06

12053B

GUIDE-CHAIN,RR

12053-0239

$80.20

49118

CAMSHAFT-COMP,INTAKE

49118-0953

$312.25

49118A

CAMSHAFT-COMP,EXHAUST

49118-0954

$312.25

92003

BOLT,FLANGED,6X11

92003-208

$4.31

92055

RING-O,18.8X1.9

92055-086

$4.31

92057

CHAIN,CAM,92RH 2015-134M

92057-0618

$92.32

92151

BOLT,FLANGED-SMALL,6X25

92151-1930

$2.80

92152

COLLAR,8.2X10.6X6.9

92152-0974

$3.35

92154

BOLT,FLANGED,8X35

92154-0725

$3.35
