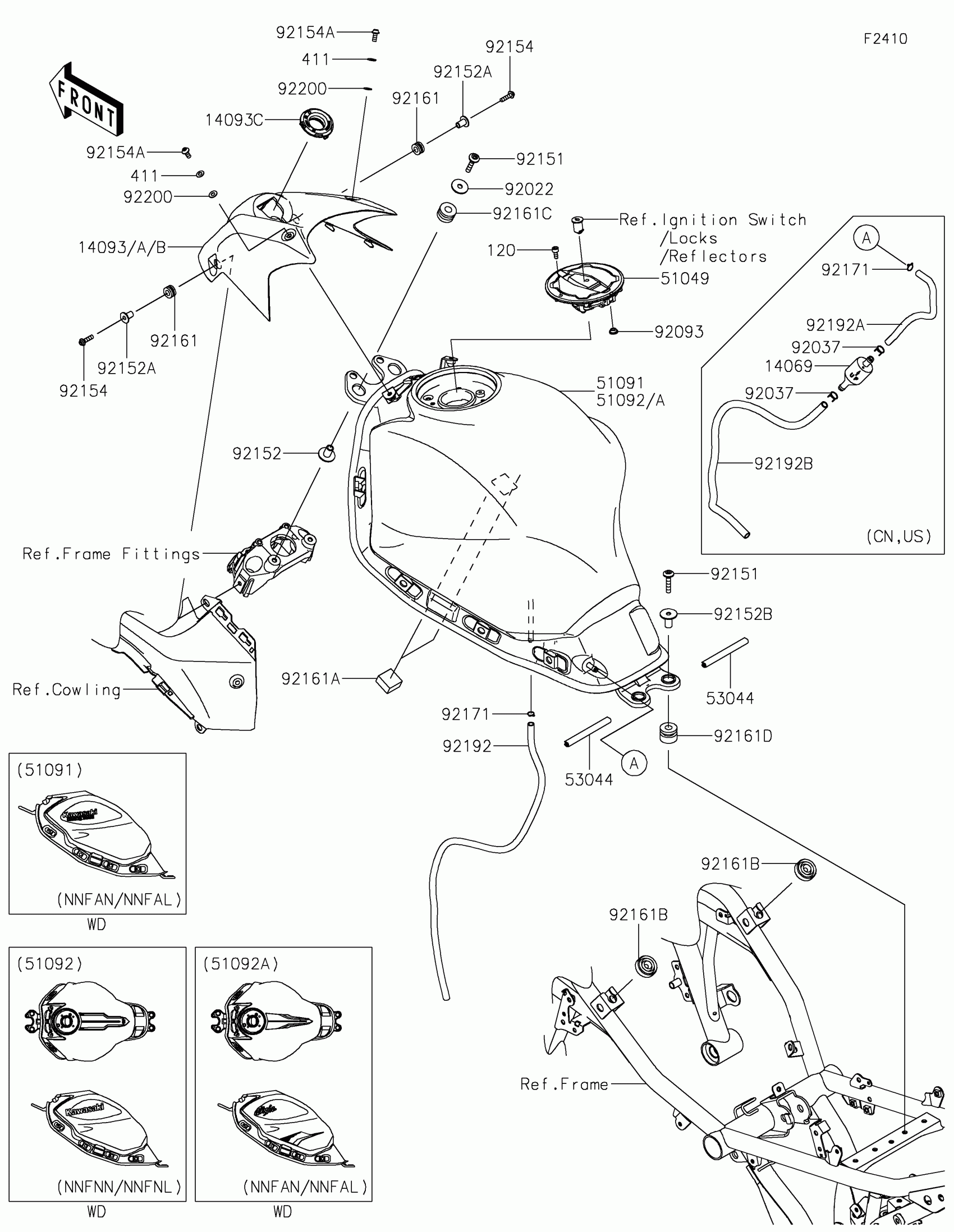

Kawasaki NINJA® 650 Fuel Tank Diagram

#

Description
Price

14069

BREATHER,FUEL TANK

14069-1004

$10.19

14069

BREATHER,FUEL TANK

14069-1004

$10.19

14093

COVER,TANK,P.R.WHITE

14093-0483-68N

$174.70

14093A

COVER,TANK,M.M.G.GRAY

14093-0483-68P

$174.70

14093B

COVER,TANK,L.GREEN

14093-0483-777

$174.70

14093C

COVER,IGNITION SW.

14093-0952

$3.74

51049

CAP-TANK

51049-0735

$136.31

51091

TANK-COMP-FUEL,L.GREEN

51091-5354-777

$909.00

51092

TANK-COMP-FUEL,M.M.G.GRAY

51092-5081-68P

$951.63

51092A

TANK-COMP-FUEL,M.C.GRAY

51092-5153-51A

$1,034.41

53044

TRIM,L=85

53044-0556

$12.58

92022

WASHER,7X24X1.6

92022-228

$3.92

92037

CLAMP,TUBE

92037-147

$7.34

92037

CLAMP,TUBE

92037-147

$7.34

92093

SEAL,FUEL TANK CAP

92093-1030

$7.77

92151

BOLT,SOCKET,6X30

92151-1605

$2.34

92152

COLLAR,6.5X10X17.6

92152-1655

$1.63

92152A

COLLAR,5.6X16X14.2

92152-2229

$2.70

92152B

COLLAR,6.5X10X21.1

92152-2325

$3.74

92154

BOLT,SOCKET,5X20

92154-0210

$2.12

92154A

BOLT,SOCKET,5X12

92154-1421

$0.95

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92161A

DAMPER,T=13

92161-0792

$3.71

92161B

DAMPER,14X30X10

92161-1368

$2.32

92161C

DAMPER,10X24X15

92161-1482

$3.71

92161D

DAMPER,10X24X19

92161-1929

$2.17

92171

CLAMP,8X0.7

92171-1973

$1.34

92171

CLAMP,8X0.7

92171-1973

$1.34

92171

CLAMP,8X0.7

92171-1973

$1.34

92192

TUBE,6X9X620

92192-1085

$13.37

92192A

TUBE,6X9X173/35

92192-1702

$7.36

92192A

TUBE,6X9X173/35

92192-1702

$7.36

92192B

TUBE,7X10.5X480

92192-1724

$5.56

92192B

TUBE,7X10.5X480

92192-1724

$5.56

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

120

BOLT-SOCKET,5X12

120CA0512

$1.57

411

WASHER-PLAIN,5MM

411AA0500

$0.56
