2015 Kawasaki Ninja® 650 Fuel Evaporative System Diagram

← All diagrams

Find the part on the Fuel Evaporative System diagram for your 2015 Kawasaki Ninja® 650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

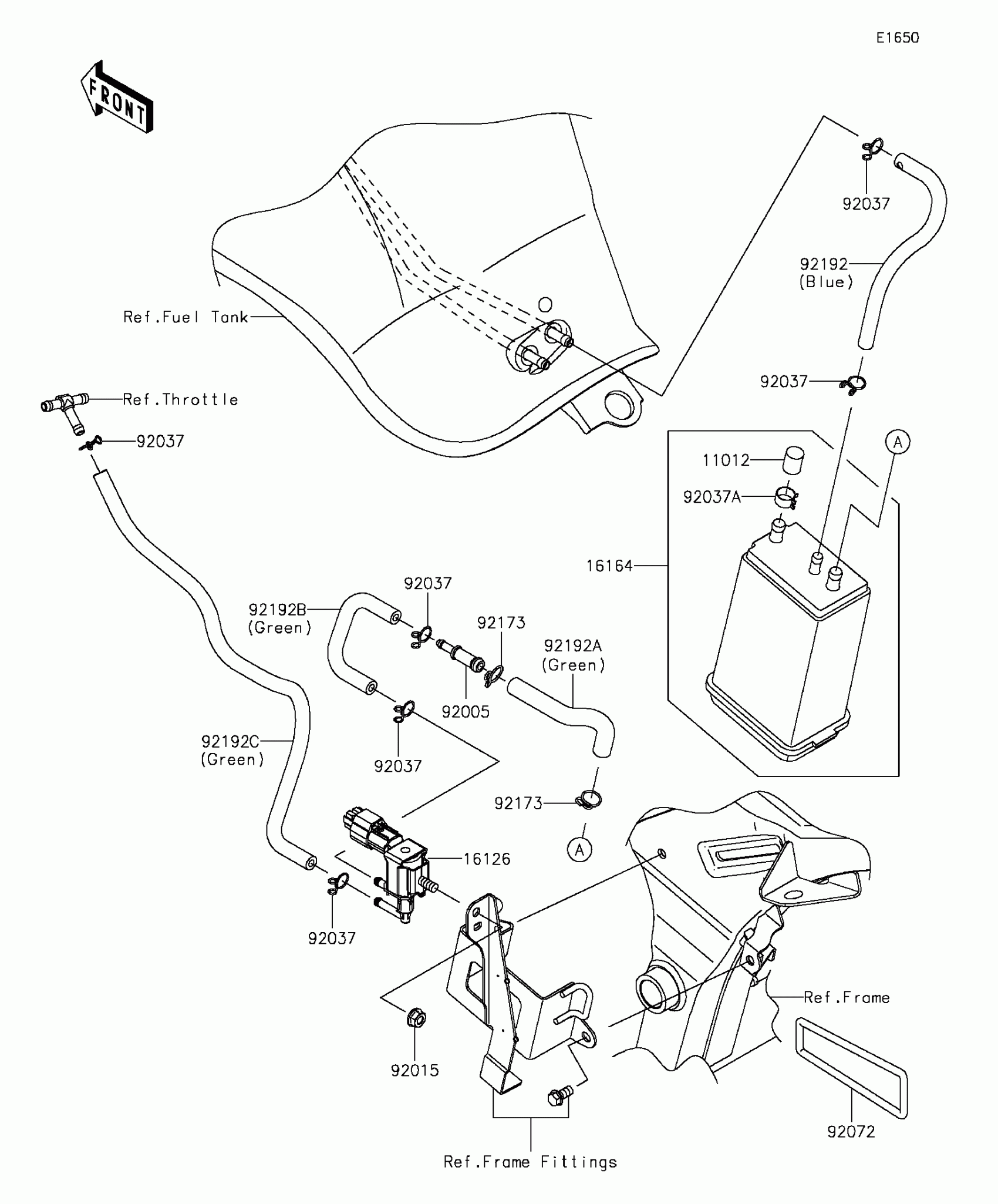

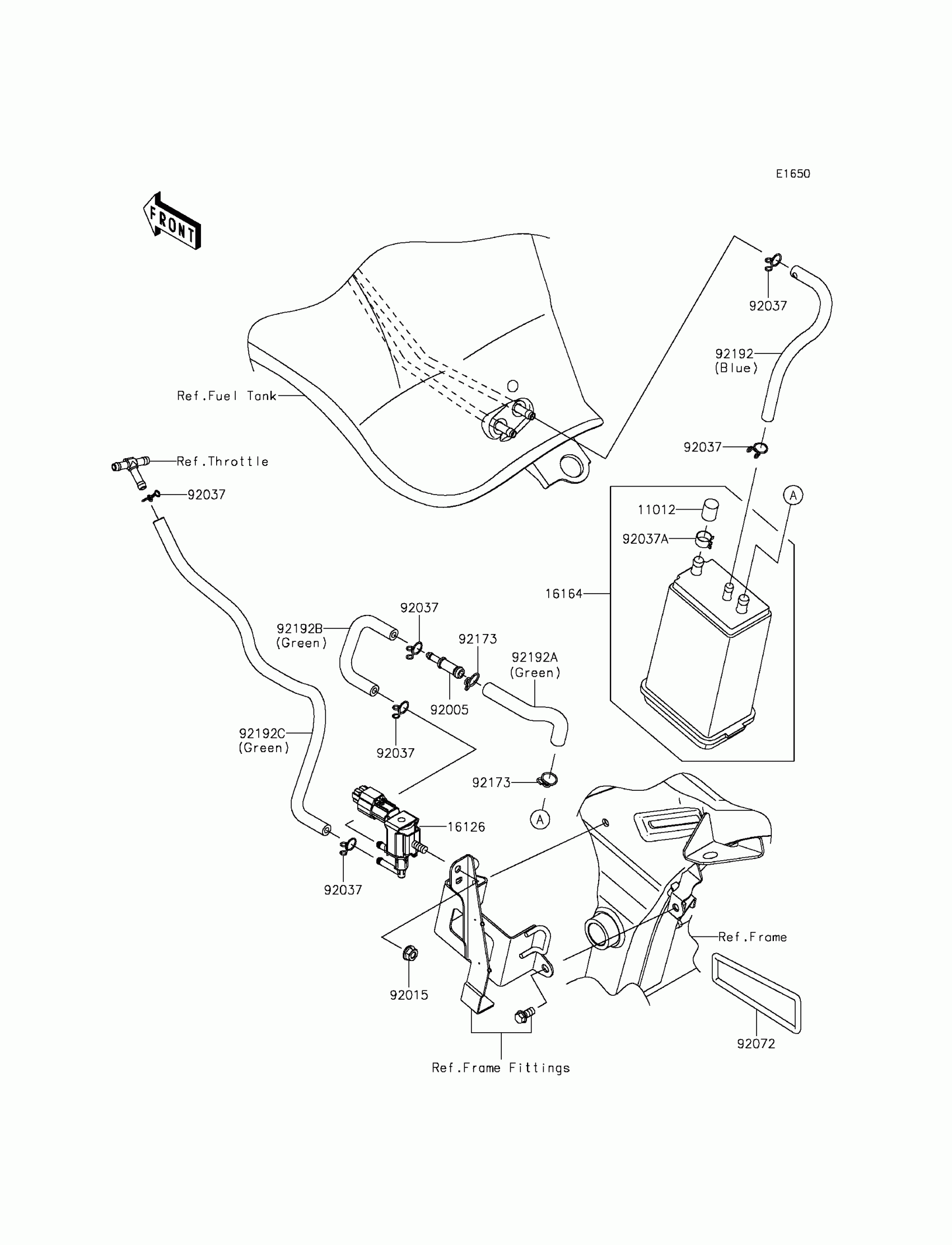

2015 Kawasaki Ninja® 650 Fuel Evaporative System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,CANISTER

11012-1388

1

$8.31

In stock

16126

VALVE,SOLENOID

16126-0705

1

$109.25

In stock

16164

CANISTER

16164-1054

1

$132.79

In stock

92005

FITTING

92005-0720

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92037

CLAMP,TUBE

92037-147

1

$5.84

In stock

92037A

CLAMP,CANISTER

92037-1512

1

$5.71

In stock

92072

BAND,TOOL

92072-0108

1

$3.29

In stock

92173

CLAMP,11.5MM

92173-0197

1

$5.00

In stock

92192

TUBE,TANK-CANISTER,BLUE

92192-0961

1
Out of stock

92192A

TUBE,CANISTER-FITTING,GREEN

92192-0962

1
Out of stock

92192B

TUBE,FITTING-VALVE,GREEN

92192-0963

1
Out of stock

92192C

TUBE,VALVE-THROTTLE,GREEN

92192-0988

1
Out of stock
