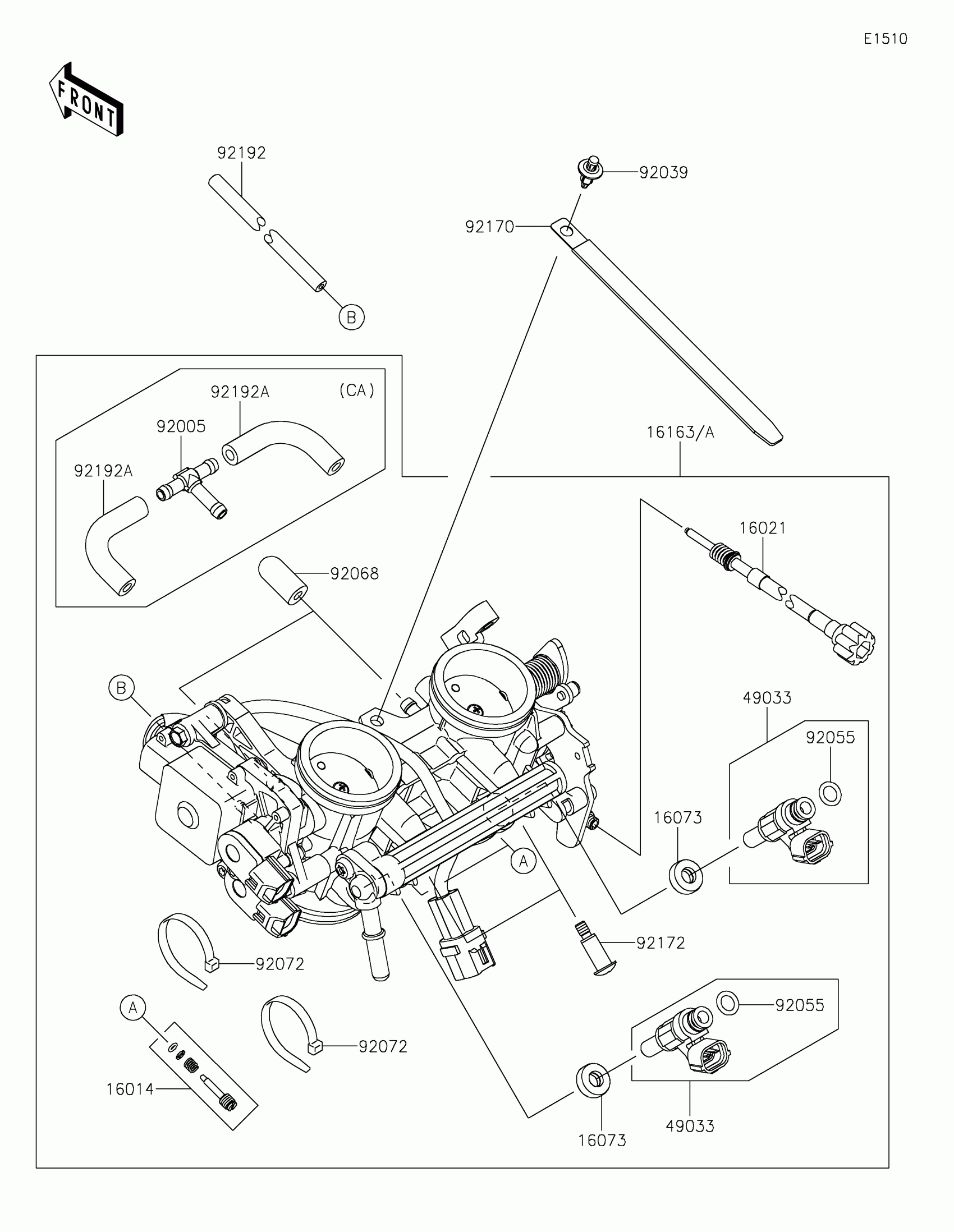

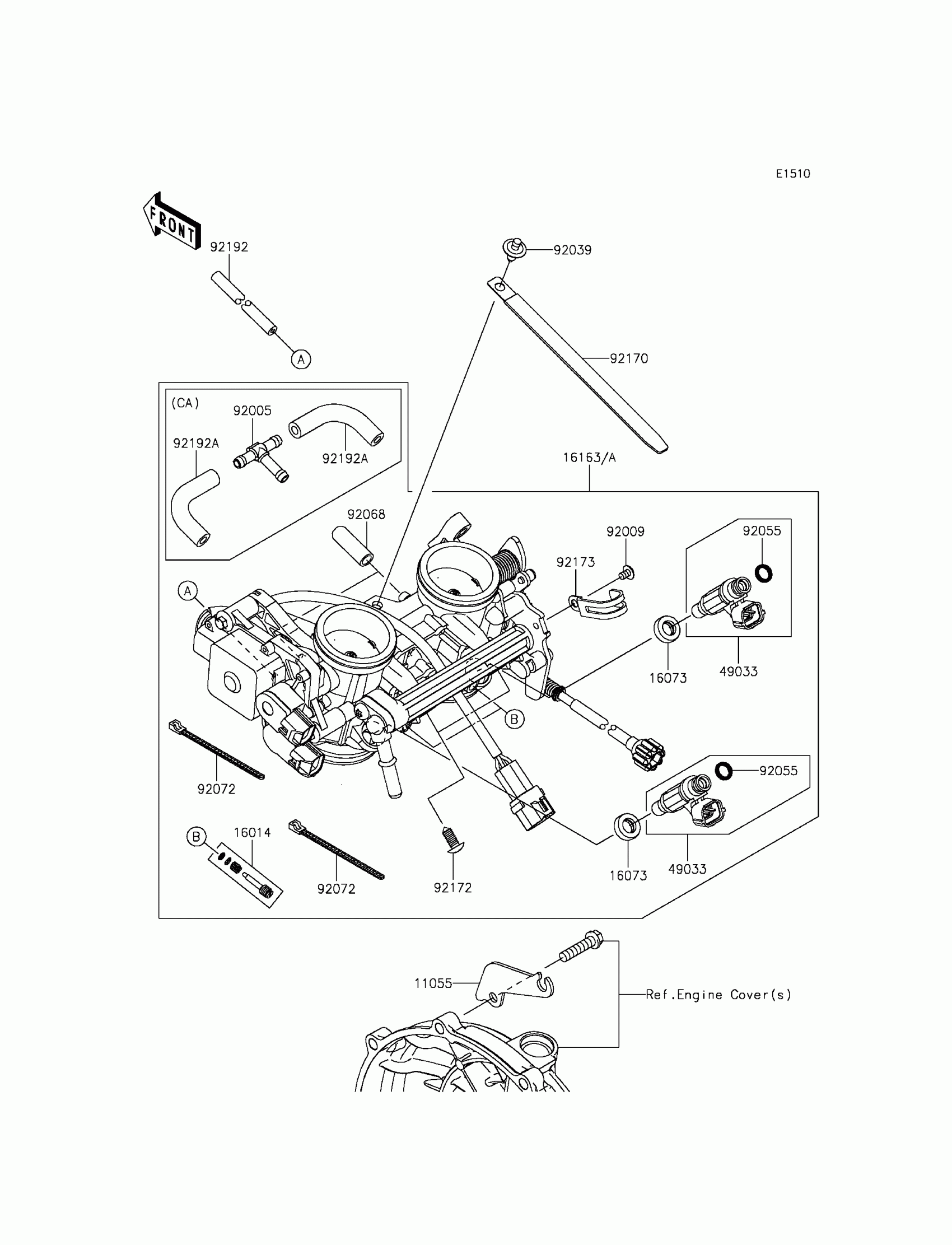

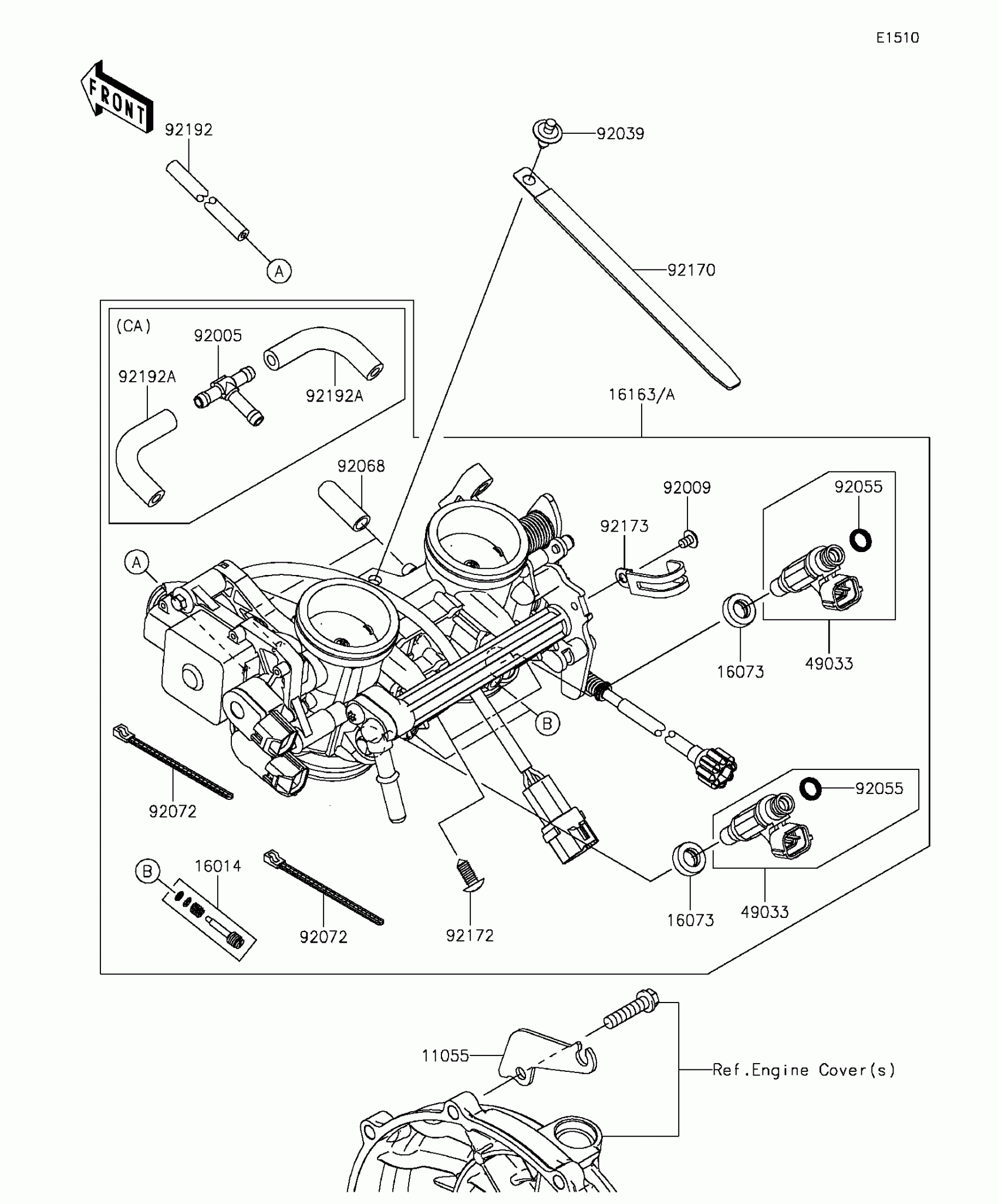

Kawasaki Ninja® 650 Throttle Diagram

Description

Price

11055

BRACKET

11055-1002

$15.31

16014

SCREW-PILOT AIR

16014-0002

$23.08

16073

INSULATOR

16073-3707

$4.90

16163

THROTTLE-ASSY,TTK38

16163-0713

$819.75

16163A

THROTTLE-ASSY,TTK38

16163-0714

$819.75

49033

NOZZLE-INJECTION

49033-0011

$83.76

92005

FITTING,3WAY

92005-0730

$14.00

92009

SCREW,CLAMP

92009-1860

$2.05

92039

RIVET

92039-0068

$2.42

92055

RING-O,INJECTION NOZZLE

92055-1622

$1.64

92068

PLUG,12X25

92068-006

$3.39

92072

BAND,SUB-HARNESS

92072-0012

$3.97

92170

CLAMP,L=150

92170-1114

$7.36

92172

SCREW,PIPE INJECTION

92172-0064

$2.29

92173

CLAMP

92173-0288

$5.46

92192

TUBE,3X6.7X300

92192-0977

$4.42

92192A

TUBE

92192-1045

$5.71
