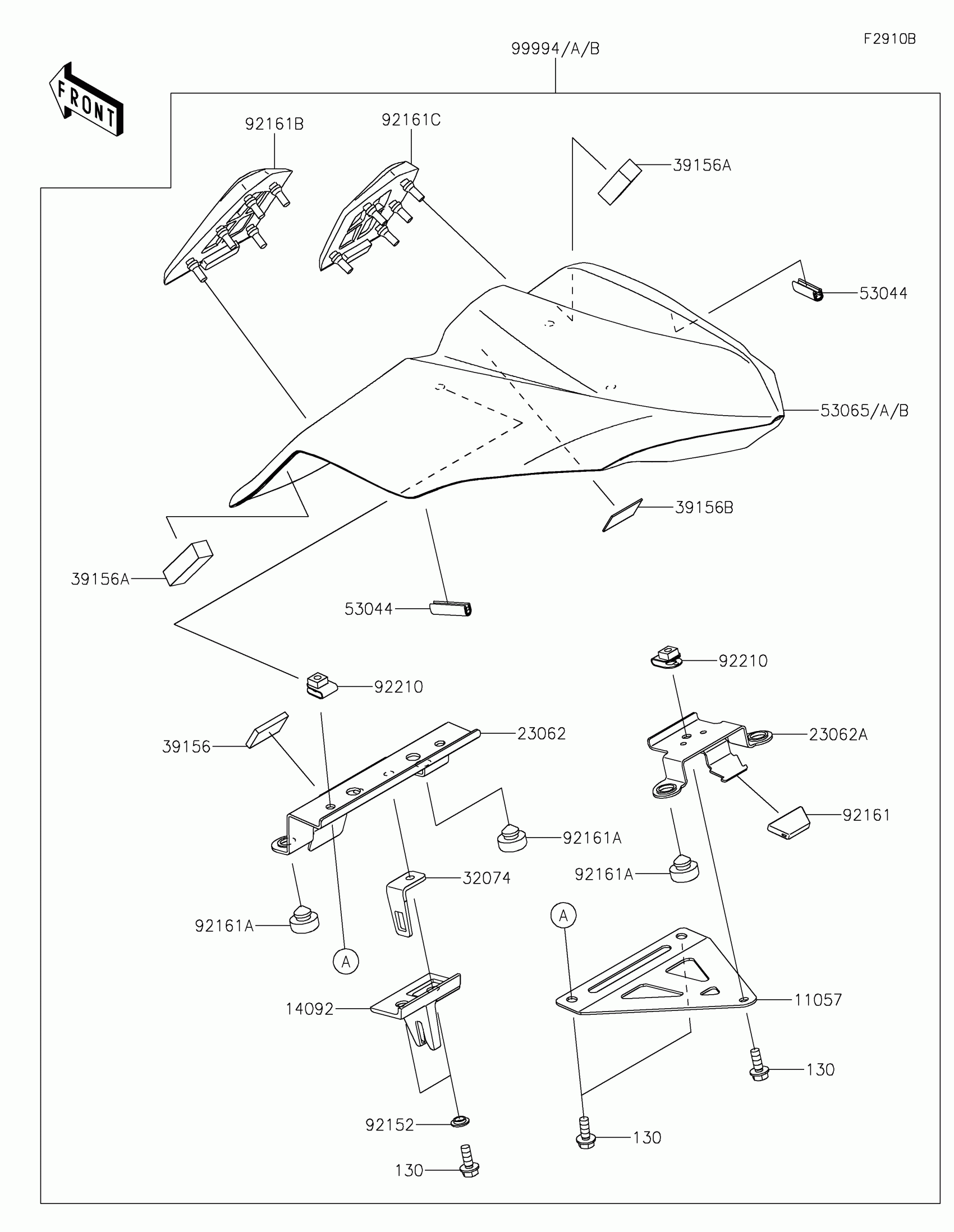

Kawasaki NINJA® 650 Accessory(Pillion Seat Cover) Diagram

Description

Price

11057

BRACKET,SEAT COVER

11057-0808

$107.15

14092

COVER

14092-0248

$11.06

23062

BRACKET-COMP

23062-0907

$18.95

23062A

BRACKET-COMP

23062-0914

$7.59

32074

BRACKET-LOCK

32074-0017

$5.55

39156

PAD,20X30X4

39156-0705

$0.42

39156A

PAD,13X43X12

39156-0978

$1.96

39156B

PAD,20X30X1

39156-2199

$2.10

53044

TRIM,L=30

53044-0001

$2.80

53065

COVER SEAT,P.R.WHITE

53065-0039-68N

$266.23

53065A

COVER SEAT,M.M.G.GRAY

53065-0039-68P

$266.23

53065B

COVER SEAT,L.GREEN

53065-0039-777

$273.95

92152

COLLAR

92152-0250

$2.97

92161

DAMPER

92161-0629

$7.21

92161A

DAMPER,10X20X8

92161-0855

$4.25

92161B

DAMPER,COVER SEAT,LH

92161-1855

$37.73

92161C

DAMPER,COVER SEAT,RH

92161-1856

$37.73

92210

NUT,6MM

92210-0277

$4.92

99994

PILLION SEAT COVER,P.R.WHITE

99994-0796-68N

$317.15

99994A

PILLION SEAT COVER,M.M.G.GRAY

99994-0796-68P

$317.15

99994B

PILLION SEAT COVER,L.GREEN

99994-0796-777

$251.02

130

BOLT-FLANGED,6X16

130BA0616

$1.20
