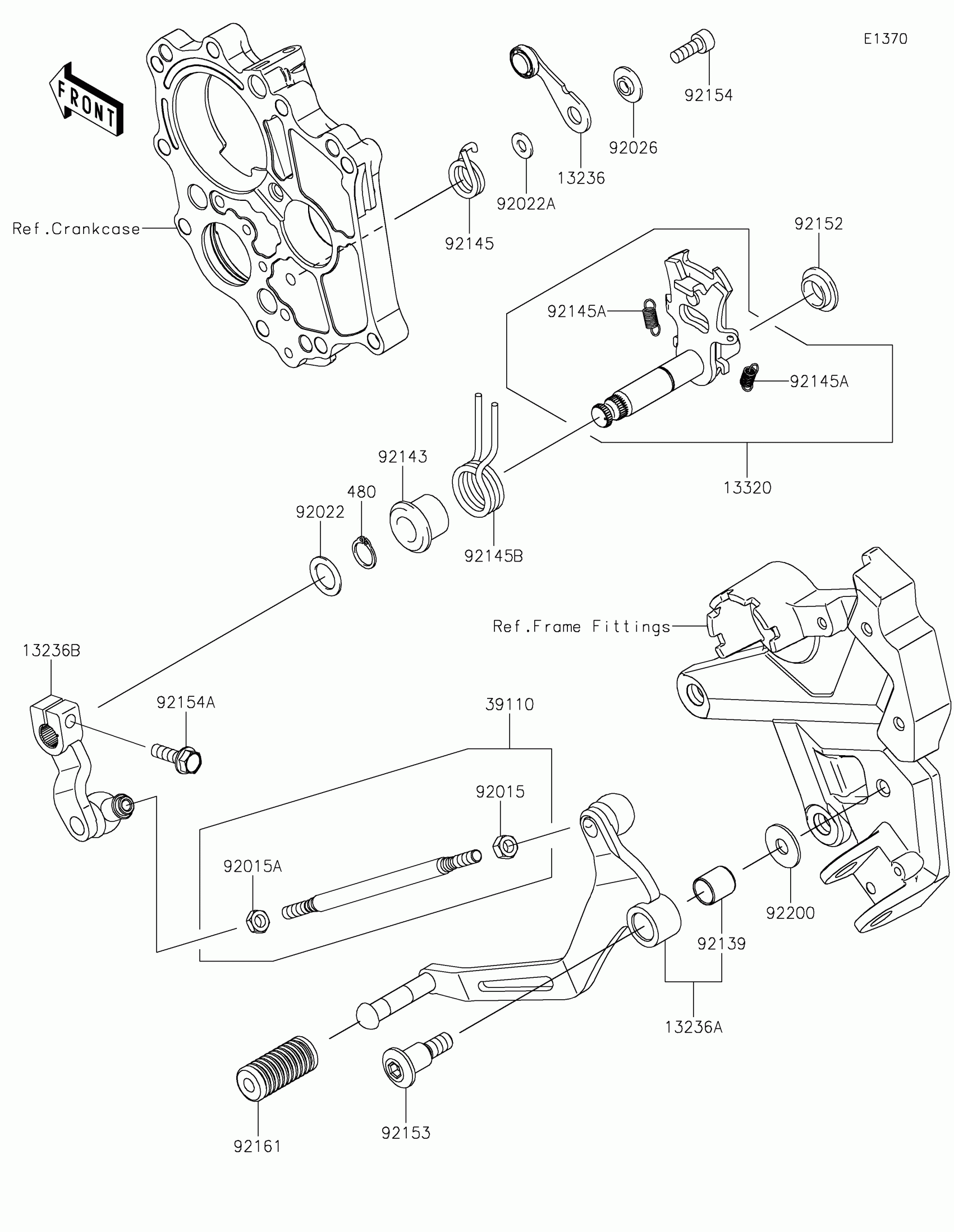

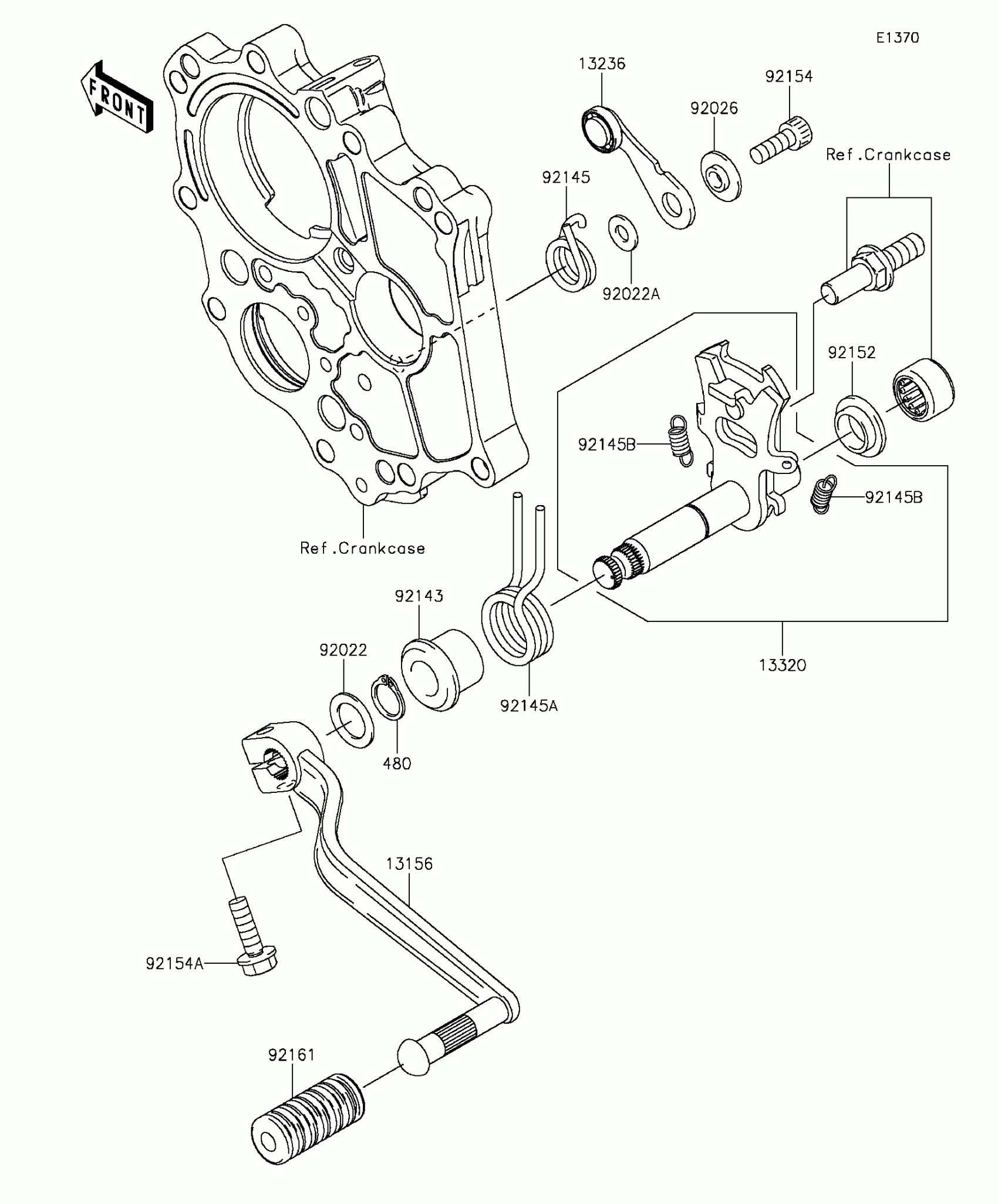

Kawasaki Ninja® 650 ABS Gear Change Mechanism Diagram

Description

Price

13156

LEVER-CHANGE,PEDAL

13156-0571

$49.88

13236

LEVER-COMP,POSITION

13236-0170

$9.31

13320

LEVER-ASSY,CHANGE SHAFT

13320-0019

$64.50

92022

WASHER,13.3X20X1

92022-1496

$3.92

92022A

WASHER,6X12.8X1.2

92022-1827

$4.69

92026

SPACER

92026-1217

$5.52

92143

COLLAR,RETURN SPRING

92143-1498

$10.65

92145

SPRING,POSITION

92145-0304

$3.87

92145A

SPRING,RETURN

92145-0326

$6.02

92145B

SPRING,5.5X0.7X18

92145-0703

$3.67

92152

COLLAR

92152-1075

$4.18

92154

BOLT,SOCKET,6X16

92154-0235

$2.95

92154A

BOLT,FLANGED,6X20

92154-0786

$3.02

92161

DAMPER,CHANGE PEDAL

92161-1300

$6.18

480

CIRCLIP-TYPE-C,13MM

480J1300

$3.92
