Description

Price

11009

GASKET,10.5X15X1.5

11009-1325

Unavailable

44005A

PIPE-LEFT FORK OUTER,S.BLACK

44005-0111-32A

$312.25

44006A

PIPE-RIGHT FORK OUTER,S.BLACK

44006-0109-32A

$312.25

44013A

PIPE-FORK INNER

44013-0263

$459.67

44023A

CYLINDER-SET-FORK

44023-0128

$110.11

44026

SPRING-FRONT FORK

44026-0165

$61.36

44029

SEAT-FORK SPRING

44029-0005

$44.62

44037

HOLDER-FORK UNDER,F.S.BLACK

44037-0119-18R

$377.28

44039

HOLDER-FORK UPPER,F.S.BLACK

44039-0121-18R

$377.28

44065

BUSHING-FRONT FORK,INNER TUBE

44065-0014

$29.57

44065A

BUSHING-FRONT FORK,OUTER TUBE

44065-1115

$28.71

44071B

DAMPER-ASSY,FORK,RH,S.BLACK

44071-1116-32A

$650.12

44071C

DAMPER-ASSY,FORK,LH,S.BLACK

44071-1117-32A

$650.12

55020

GUARD,FORK

55020-0872

$11.66

92022

WASHER,FORK OUTER TUBE

92022-1298

$8.58

92033

RING-SNAP

92033-1036

$6.51

92049

SEAL-OIL

92049-0073

$22.70

92055

RING-O

92055-1321

$1.35

92066

PLUG

92066-0032

$11.66

92092

BUSHING-RUBBER

92092-1090

$7.56

92093

SEAL,FORK OUTER TUBE

92093-1472

$23.76

92151

BOLT,SOCKET,10X40

92151-1357

$3.99

92152

COLLAR,FORK

92152-0767

$13.68

92153

BOLT,SOCKET,8X40

92153-0506

$7.57

92154

BOLT,SOCKET,FORK CYLINDER

92154-0296

$3.52

92200

WASHER

92200-1302

$4.87

120

BOLT-SOCKET,8X35

120CA0835

$2.80

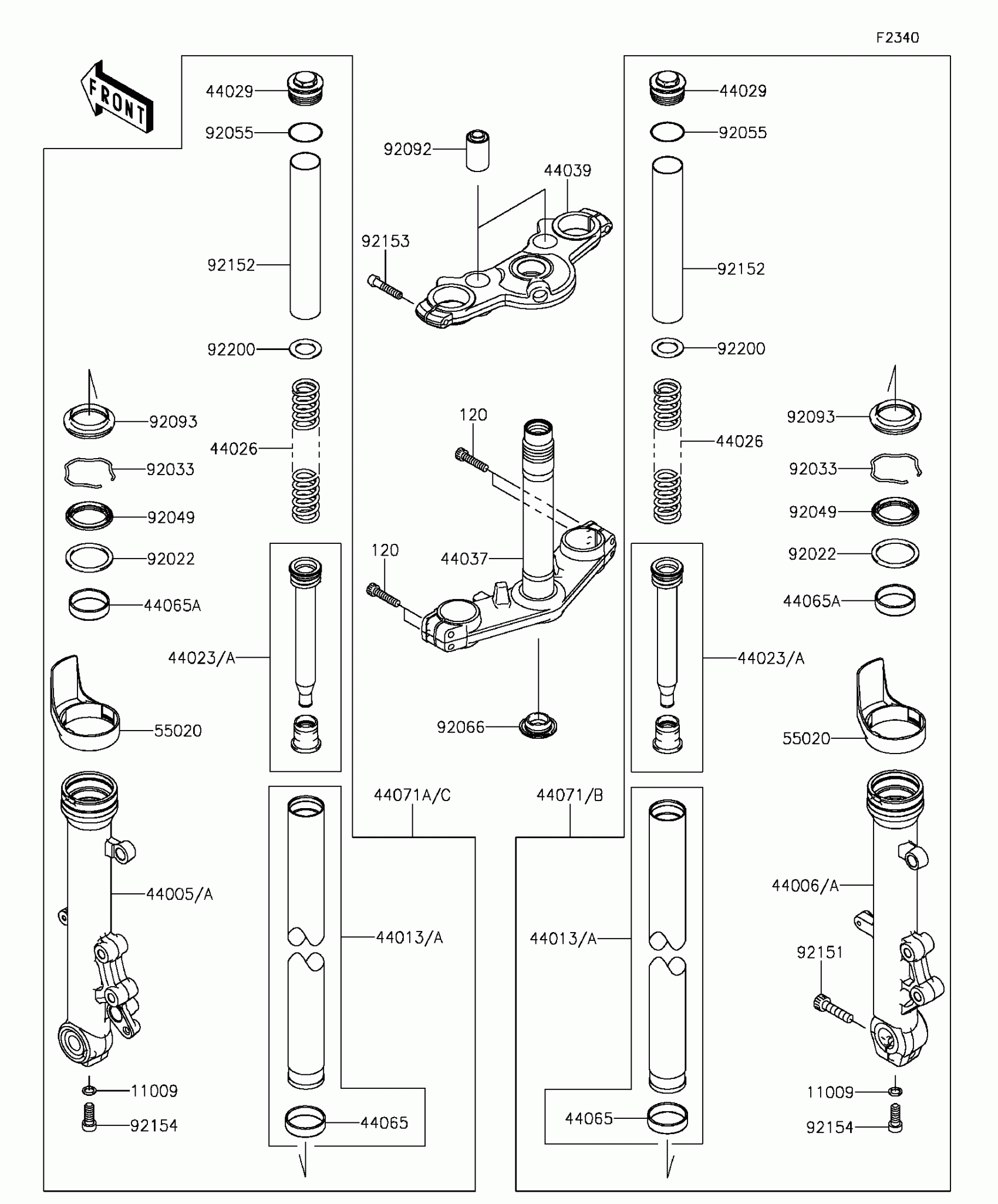

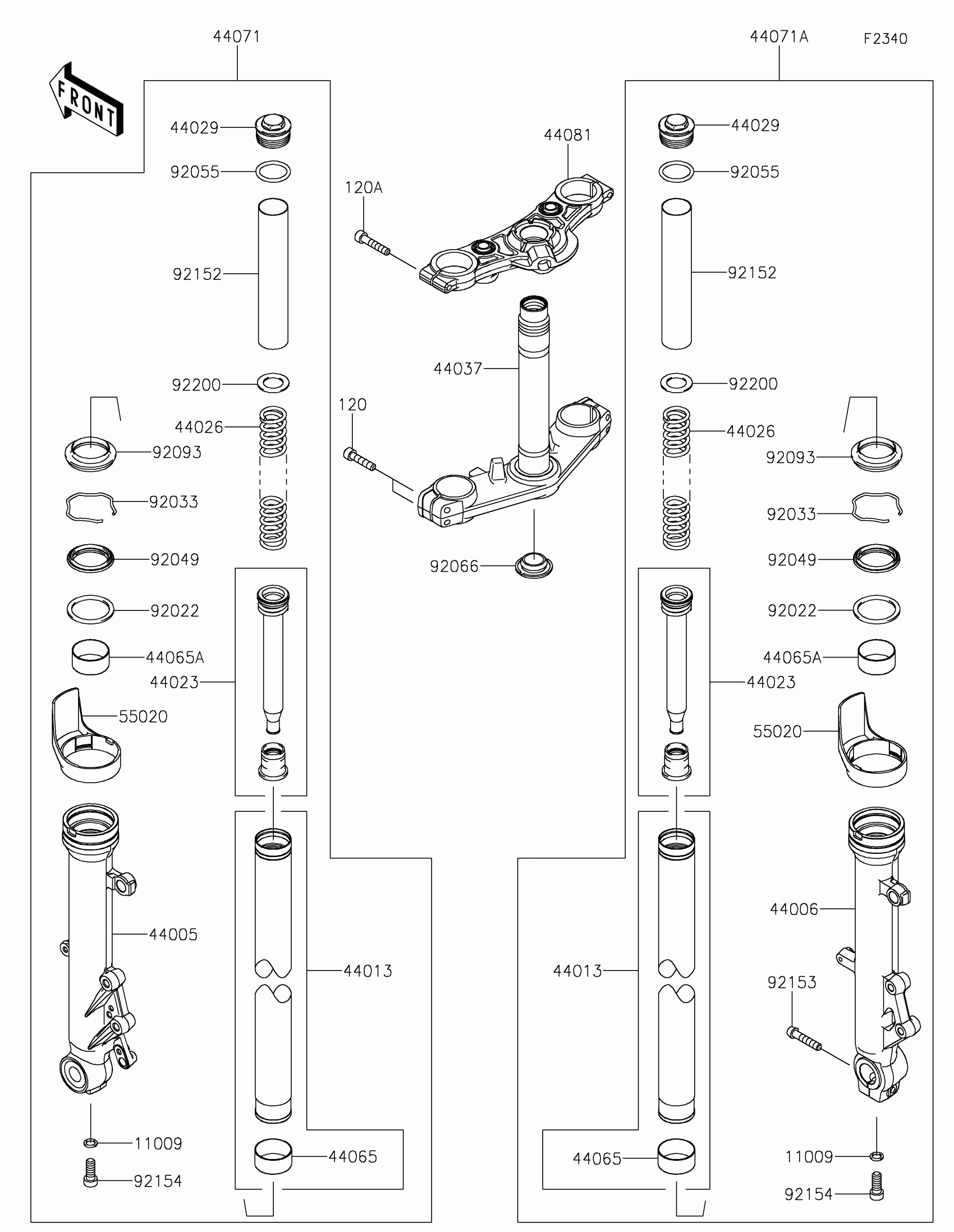

Kawasaki Ninja® 650 ABS Front Fork Diagram
