2016 Kawasaki Ninja® 650 ABS Front Fender Diagram

← All diagrams

Find the part on the Front Fender diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

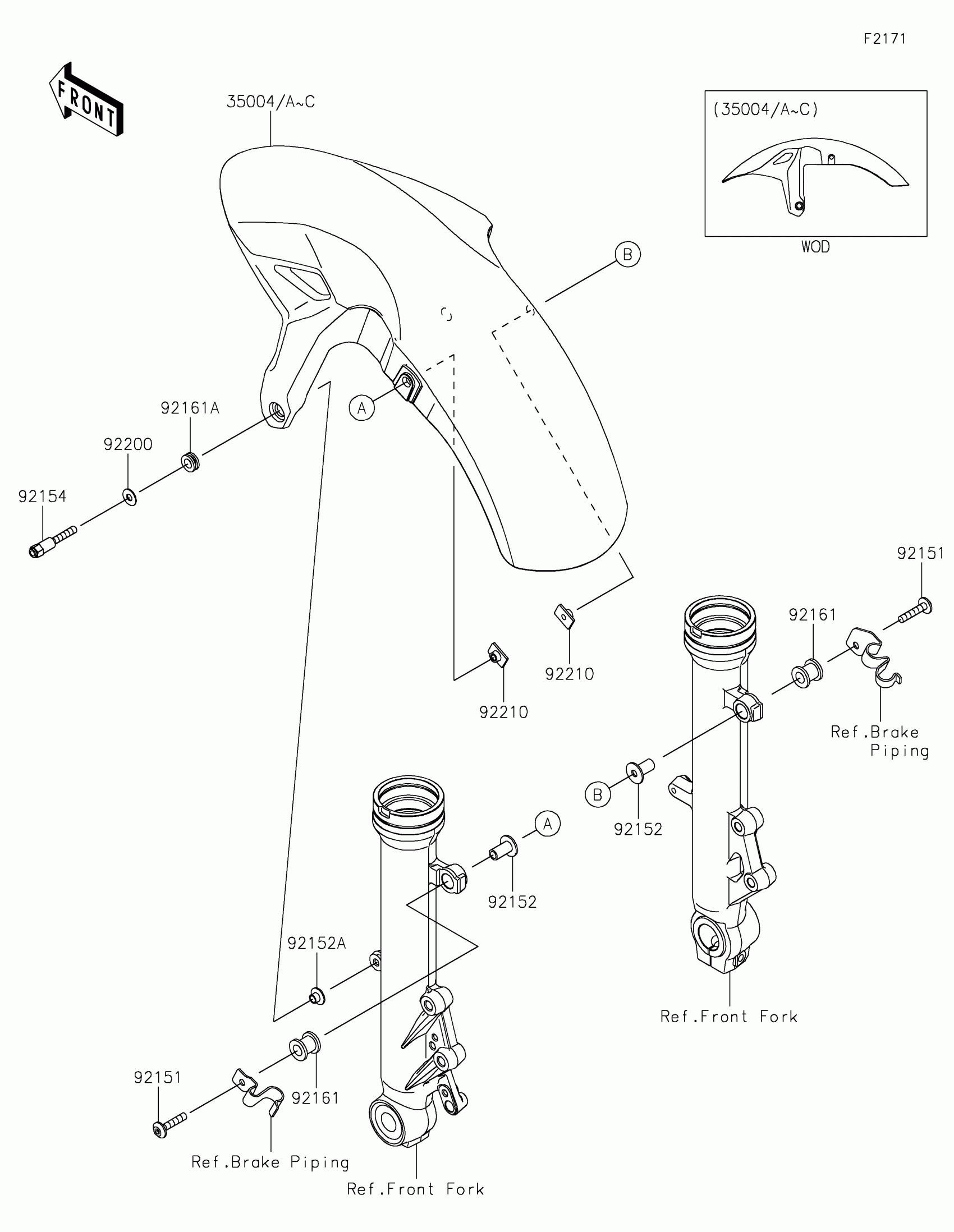

2016 Kawasaki Ninja® 650 ABS Front Fender Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

35004B

FENDER-FRONT,M.C.GRAY

35004-0304-51A

1
Out of stock

35004C

FENDER-FRONT,C.L.GREEN

35004-0304-51P

1
Out of stock

35004F

FENDER-FRONT,C.P.RED

35004-0304-A5

1
Out of stock

92152

COLLAR,6.5X10X20.5

92152-1570

1
Out of stock

92152A

COLLAR,6.3X8.3X16

92152-1602

1
Out of stock

92154

BOLT

92154-0324

1
Out of stock

92154A

BOLT,SOCKET,6X20

92154-0918

1
Out of stock

92161

DAMPER,8.3X16X6.4

92161-0664

1
Out of stock

92161A

DAMPER,10X20X18.9

92161-1406

1
Out of stock

92200

WASHER,6.5X16X1.0

92200-0796

1
Out of stock

92210

NUT,PLATE,6MM

92210-1352

1
Out of stock
