2016 Kawasaki Ninja® 650 ABS Frame Fittings Diagram

← All diagrams

Find the part on the Frame Fittings diagram for your 2016 Kawasaki Ninja® 650 ABS, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

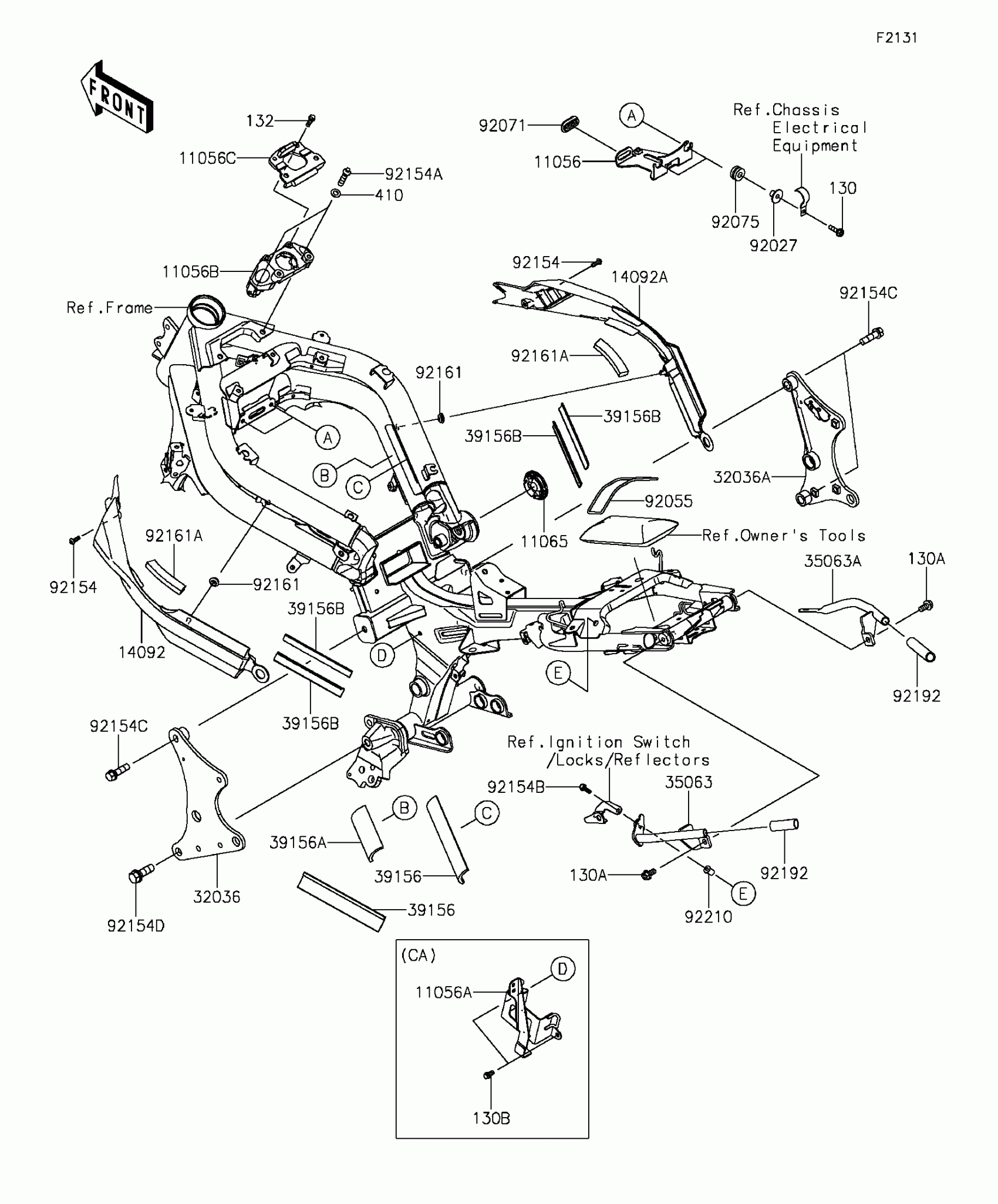

2016 Kawasaki Ninja® 650 ABS Frame Fittings Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11056

BRACKET,REGULATOR

11056-0801

1
Out of stock

11056A

BRACKET,CANISTER

11056-0802

1
Out of stock

11056B

BRACKET,IGNITION SW.

11056-0805

1
Out of stock

11056C

BRACKET,IGNITION SW.,UPP

11056-1717

1
Out of stock

11065

CAP,PIVOT COVER,RH,P.SILVER

11065-0264-458

1
Out of stock

14092

COVER,FRAME,LH

14092-0856

1
Out of stock

14092A

COVER,FRAME,RH

14092-0857

1
Out of stock

32036

BRACKET-SWINGARM,LH

32036-0303

1
Out of stock

32036A

BRACKET-SWINGARM,RH

32036-0304

1
Out of stock

35063

STAY,TAIL COVER,LH

35063-0836

1
Out of stock

35063A

STAY,TAIL COVER,RH

35063-0837

1
Out of stock

39156

PAD,157X40X5

39156-0756

1
Out of stock

39156A

PAD,88X40X5

39156-0757

1
Out of stock

39156B

PAD,17X130X2

39156-0772

1
Out of stock

92027

COLLAR,L=13.1,BLACK

92027-1450

1
Out of stock

92055

RING-O,91.6X3.4

92055-0719

1
Out of stock

92071

GROMMET

92071-0013

1
Out of stock

92075

DAMPER RUBBER,RR FENR

92075-209

1
Out of stock

92154

BOLT,SOCKET,5X16

92154-0209

1
Out of stock

92154A

BOLT,TORX,8X35

92154-0730

1
Out of stock

92154B

BOLT,FLANGED,5X18

92154-0785

1
Out of stock

92154C

BOLT,FLANGED,10X35

92154-0862

1
Out of stock

92154D

BOLT,FLANGED,12X35

92154-0863

1
Out of stock

92161

DAMPER

92161-0631

1
Out of stock

92161A

DAMPER,10X80X16

92161-1470

1
Out of stock

92192

TUBE,14X17X50

92192-0700

1
Out of stock

92210

NUT,WELL,5MM

92210-0498

1
Out of stock

130

BOLT-FLANGED,6X22

130BA0622

1
Out of stock

130A

BOLT-FLANGED,8X16

130BA0816

1
Out of stock

130B

BOLT-FLANGED,6X12

130BB0612

1
Out of stock

132

BOLT-FLANGED-SMALL,6X16

132BA0616

1
Out of stock

410

WASHER-PLAIN-SMALL,8MM

410AA0800

1
Out of stock
