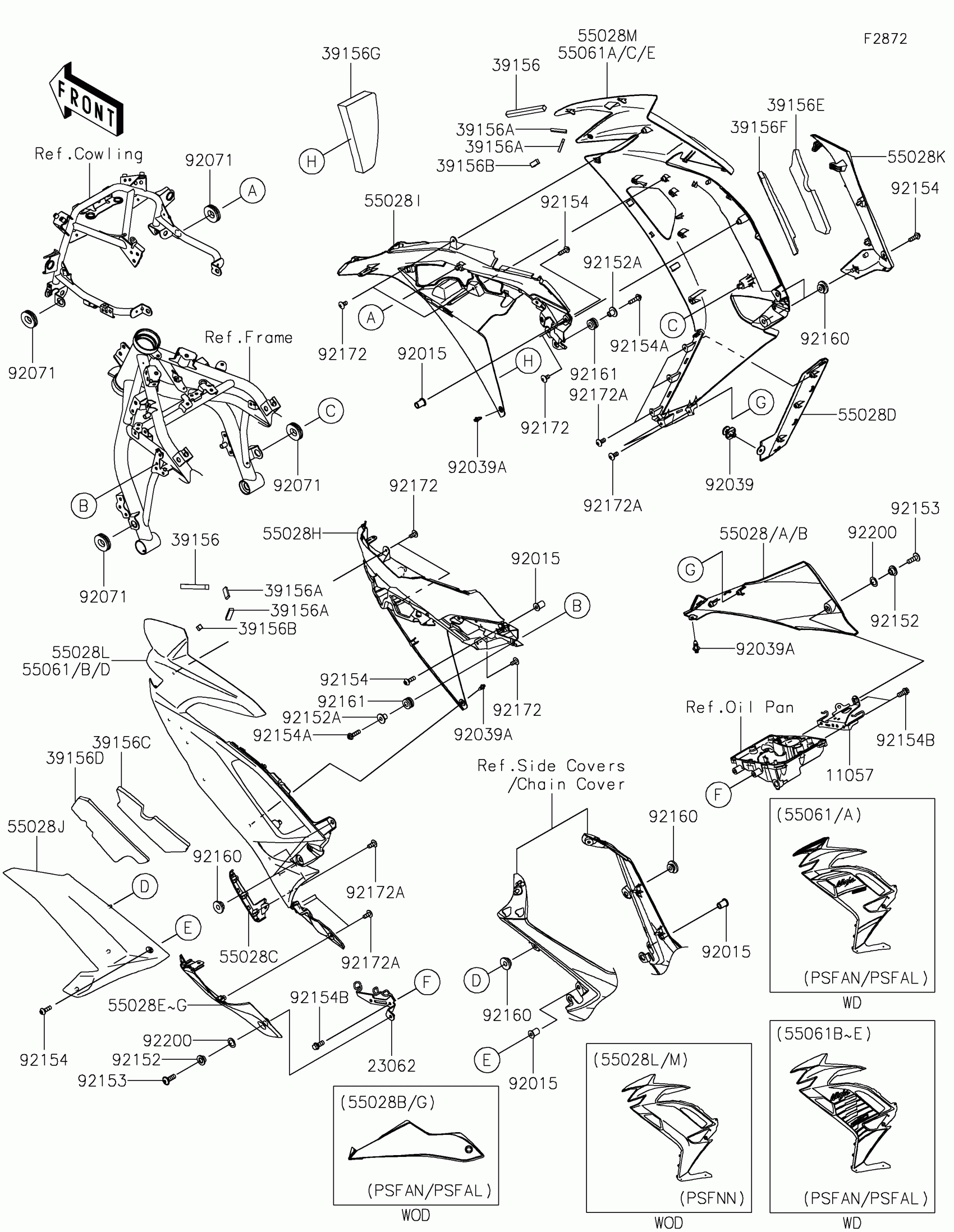

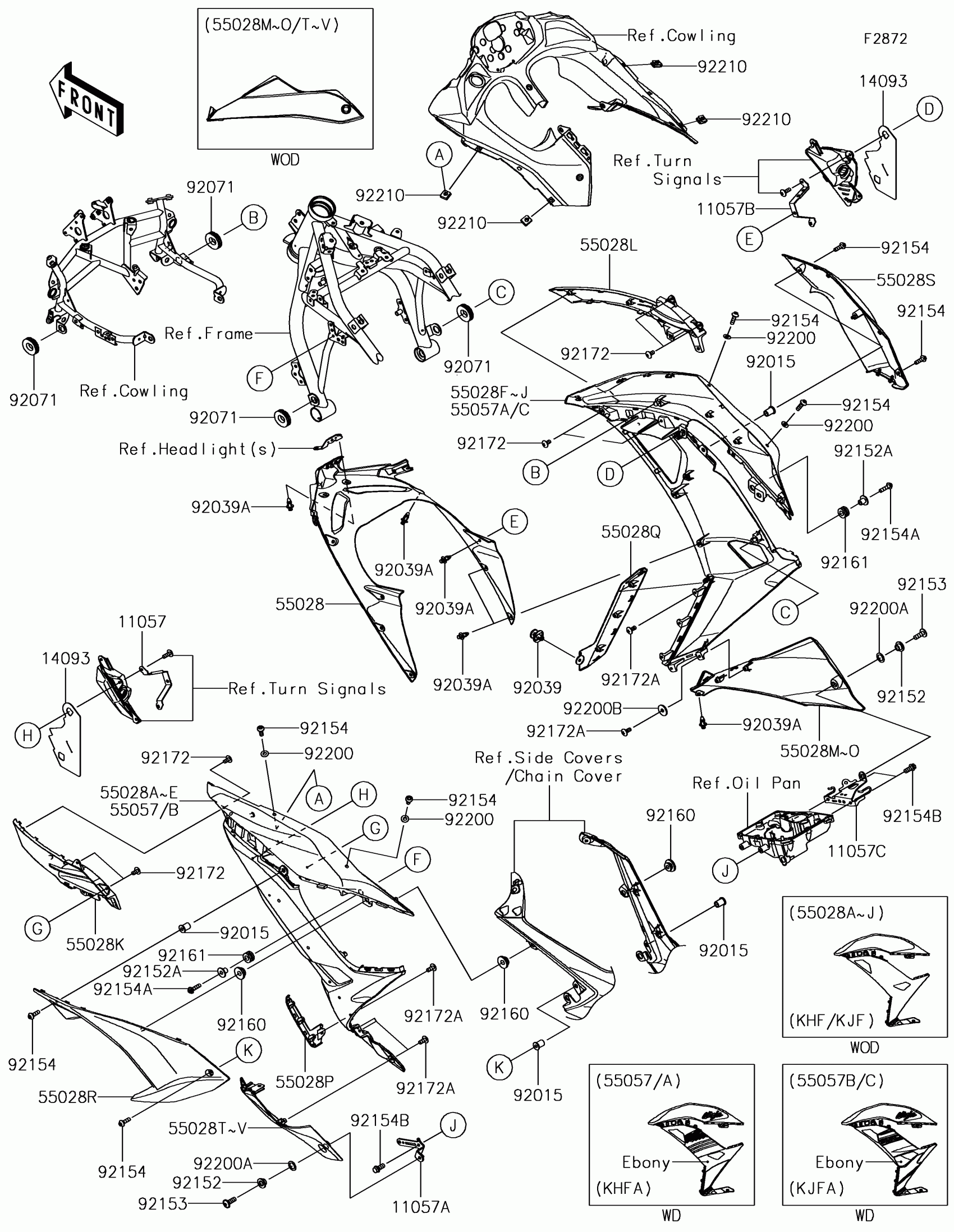

Kawasaki NINJA® 650 ABS Cowling Lowers Diagram

#

Description
Price

11057

BRACKET,SIDE COWL.,LH

11057-0130

$6.10

11057A

BRACKET,LWR COWL.,LH

11057-0131

$8.22

11057B

BRACKET,SIDE COWL.,RH

11057-0132

$6.10

11057C

BRACKET,LWR COWL.,RH

11057-0133

$14.37

14093

COVER,SIGNAL LAMP

14093-0603

$10.90

55028

COWLING,FRONT NOSE

55028-0593

$43.40

55028B

COWLING,SIDE,LH,P.S.GRAY

55028-0594-36S

$408.98

55028E

COWLING,SIDE,LH,C.P.BLUE

55028-0594-723

$408.98

55028G

COWLING,SIDE,RH,P.S.GRAY

55028-0595-36S

$408.98

55028J

COWLING,SIDE,RH,C.P.BLUE

55028-0595-723

$408.98

55028K

COWLING,SIDE,INNER,LH

55028-0596

$14.24

55028L

COWLING,SIDE,INNER,RH

55028-0597

$14.24

55028O

COWLING,LWR,RH,EBONY

55028-0599-H8

$96.10

55028P

COWLING,LWR,FR,LH

55028-0600

$9.69

55028Q

COWLING,LWR,FR,RH

55028-0601

$9.69

55028R

COWLING,SIDE,RR,LH

55028-0602

$22.74

55028S

COWLING,SIDE,RR,RH

55028-0603

$22.74

55028V

COWLING,LWR,LH,EBONY

55028-0634-H8

$96.10

92015

NUT,WELL,5MM

92015-1757

$7.29

92039

RIVET,HOLE 8MM

92039-0014

$3.29

92039A

RIVET

92039-0709

$2.67

92071

GROMMET

92071-1043

$5.46

92152

COLLAR

92152-1359

$7.65

92152A

COLLAR

92152-1592

$3.02

92153

BOLT,6X18

92153-0478

$2.55

92154

BOLT,SOCKET,5X16

92154-0209

$2.75

92154A

BOLT,SOCKET,5X20

92154-0210

$2.12

92154B

BOLT,FLANGED,6X14

92154-1426

$2.00

92160

DAMPER

92160-1613

$3.74

92161

DAMPER,8X16X8.6

92161-0685

$6.61

92172

SCREW,TAPPING,5X10

92172-0262

$1.34

92172A

SCREW,5X12

92172-0821

$0.85

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

$1.86

92200A

WASHER,10.4X15.9X0.5

92200-0157

$2.15

92200B

WASHER,5.5X18X1.6

92200-0857

$1.19

92210

NUT

92210-0571

$3.52
