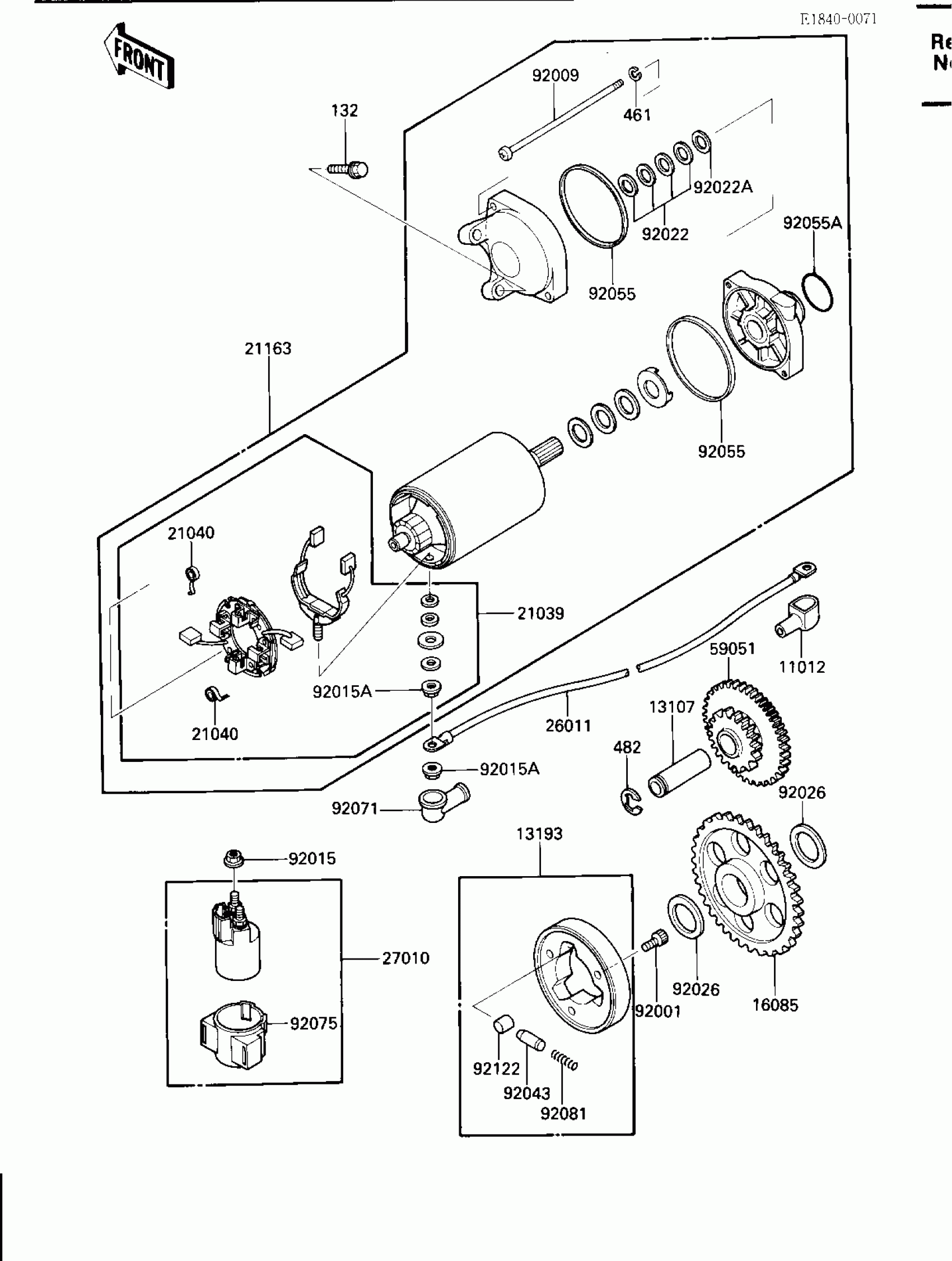

Kawasaki Ninja® 600RX STARTER MOTOR/STARTER CLUTCH Diagram

#

Description
Price

11012

CAP,TERMINAL

11012-1354

$10.19

13107

SHAFT,IDLE GEAR

13107-1144

Unavailable

13193

CLUTCH-ASSY-ONEWAY

13193-1002

$116.39

16085

GEAR,ONEWAY CLUTCH

16085-1030

$129.22

21039

BRUSH,CARBON

21039-1053

$94.23

21040

SPRING-BRUSH

21040-1003

$9.41

21163

STARTER-ELECTRIC

21163-1072

$590.74

26011

WIRE-LEAD,STARTER MOTOR

26011-1251

$77.78

27010

SWITCH,MAGNETIC

27010-1235

$154.96

59051

GEAR-SPUR,IDLE

59051-1138

Unavailable

92001

BOLT,SOCKET,8X10

92001-1424

$5.00

92009

SCREW

92009-1397

$6.65

92015

NUT,FLANGED,6MM

92015-1078

Unavailable

92015A

NUT,STARTER MOTOR

92015-1476

$4.31

92022

WASHER,9.1X18X0.2

21025-011

$6.22

92022A

WASHER,9.1X18X0.8

92022-1132

$6.22

92026

SPACER,25X36X3.2

92026-1025

$6.16

92043

PIN

92043-132

$6.22

92055

RING-O,64MM

92055-1086

$10.00

92055A

RING-O

92055-1276

$9.91

92071

GROMMET,STARTER TERMINAL

21017-017

$9.43

92075

DAMPER,MAGNETIC SWITCH

21064-002

Unavailable

92081

SPRING,COIL

92081-159

$3.89

92122

ROLLER

92122-006

$6.22

132

BOLT-FLANGED-SMALL,6X25

132J0625

$2.62

461

WASHER-SPRING,5MM,BLACK

461K0500

$1.49

482

CIRCLIP-TYPE-E

482J0300

$3.22
